Машина Wenahou 2019, высокое качество, низкая цена, трехслойная машина для выдувания пленки, модель серии № HR3SJ

Product Overview

Description

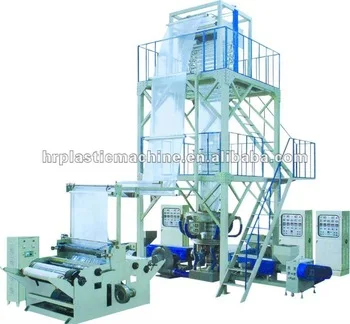

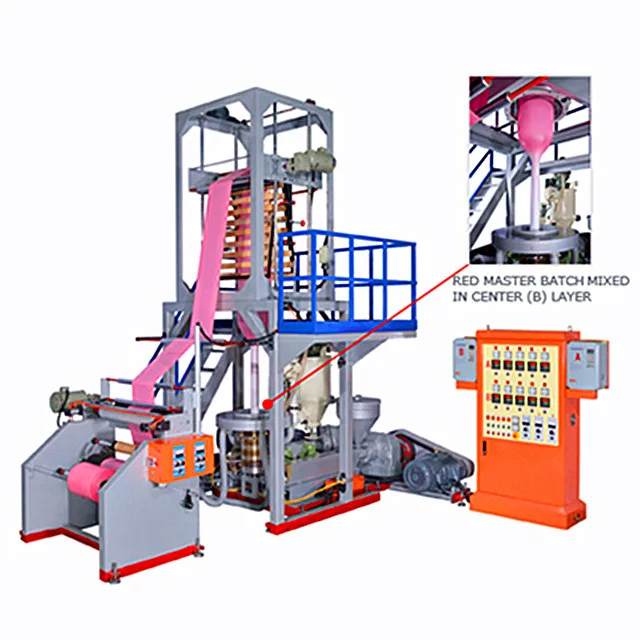

Three Layer Coextrusion Film Blowing Machine

Model No.HR3SJ Series

instruction:



Use:

This film blowing machine is applicable for the materials such as LDPE, LLDPE, HDPE, MLLDPE, EVA, EAA etc. It is widely used to manufacture composite film basic material, liquid film, contractive film, protective film, cable film, macromolecule adhesive film, multifunctional industrial film products.

Characteristics:



1.Die head is layer type spiral mandrel, continuous 3600 rotation.

2.Screen pack changer design is reliable, safe in operation and change the fitter screen easier.

3.Various functional parts may be installed to the lies.,such as length counting device, vertical cutting device, cooling water row pipe, film spreading roller, scrap collecting device.





Main Technical Variables:



Model	SJ3-1000	SJ3-1200	SJ3-1500
Screw diameter(mm)	55*2&60*1	60*2&65*1	65*2&70*1
Screw ratio(L/D)	28:1	28:1	28:1
Screw speed	15-150r/min	15-150r/min	15-150r/min
Main motor power(kw)	15*2&18.5*1	18.5*2&22*1	22*2&30*1
Output (single)	150kg/h	240kg/h	300kg/h
Die head diameter(mm)	150&200	200&250	250&300
Thickness of film(mm)	0.03-0.3	0.03-0.3	0.03-0.3
Max,folding width of film	1000mm	1200mm	1500mm
Total power	76kw	88kw	102kw
Weight	4T	5T	6T
Overall dimension(m)	6.6*4.1*5	6.8*4.3*6	7*4.8*7.5

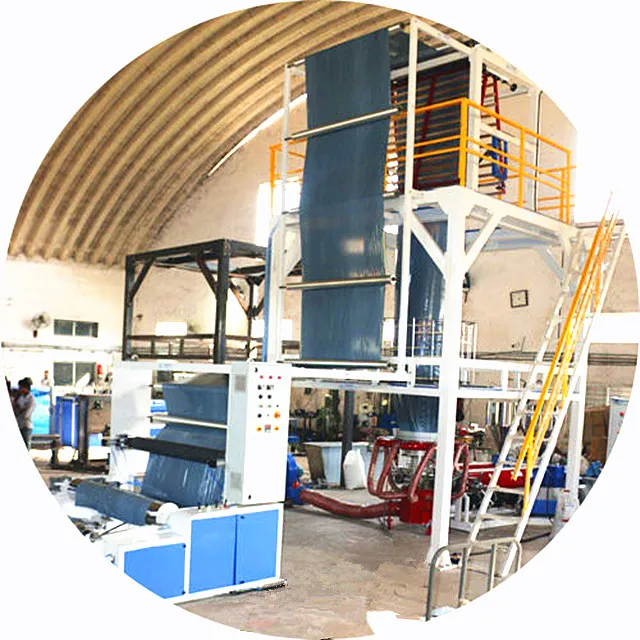

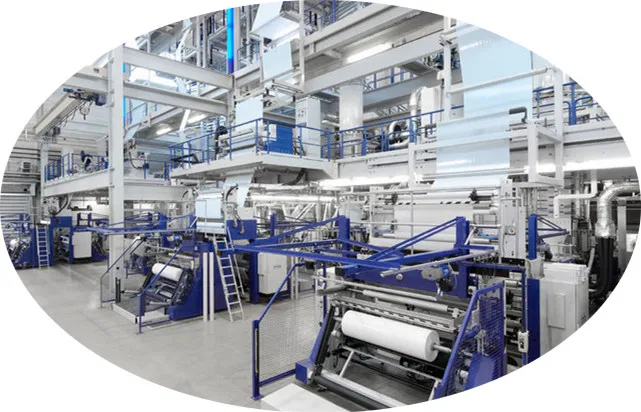

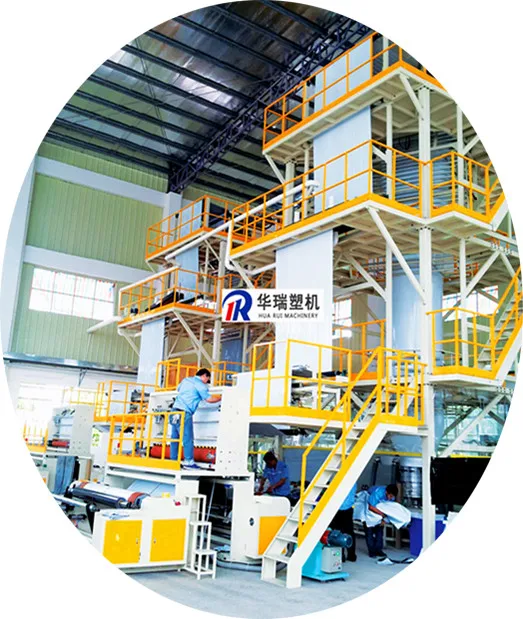

our factory:
