Hydraulic press brake WC67Y 63/2500

Product Overview

Description

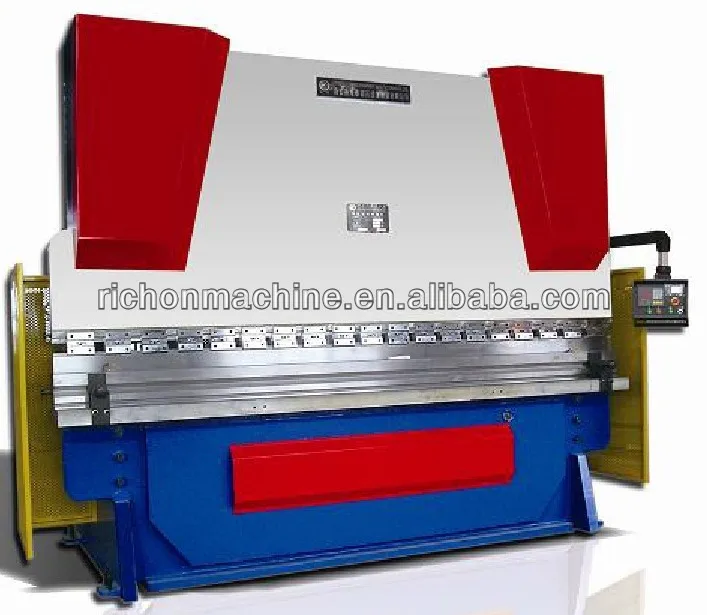

Hydraulic press brake  WC67Y- 63/2500



♦ Principal machine selects WC67Y series press brake;



♦ Fitted with special NC system for bender of DELEM company;



♦ Travels of rear block stop (X) and slide block (Y) are all controlled by computer automatically;



♦ Rear block stop adopts ordinary screw mandrel and precision screw mandrel is momdrel unilateral location to eliminate thetran smission clearance.





Model	Nominal pressure (KN)	Length of working table (mm)	Ram stroke (mm)	Amount of ram adjustment (mm)	Stroke of number (mm)	Net weight (kg)	Main power (mm)	Dimensions LxWxH (mm)
WC67Y-63/2500	630	2500	100	80	10	4600	5.5	2530x1630x2160
WC67Y-63/3200	630	3200	100	50	10	5500	5.5	3330x1630x2360











This chart is calculated according to the material power of tensile strength §b=450N/mm ² The bending power can be got according to the proportion while different kind of material is being bent. When L=1m the numerical value in the hart is the bending power.

e.g. S=4mm

        L=1m

       V=32mm



By consulting the chart P=330KN

Calculating formula P=650S ²L(KN)/V



S – the thickness of the plate to be bent (mm)

L – the width of the plate to be bent (m)

V – the size of the opening of the lower die (mm)
