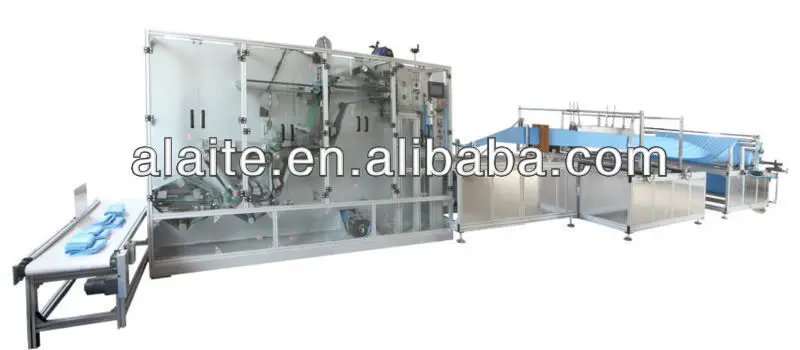

Automatic Nonwoven Bed Sheets Folding Making Machine

Product Overview

Description

Technical parameters:



1 Supply Voltage: 380V50HZ

2 Power: 5KW

3.Weight: 5 T

4.Speed: 30 m / min

5.Dimensions: 8900 * 2400 * 2150mm

6.Conveyor belt size: 2030 * 460 * 700mm



Performance characteristics:



1. maximum folding two meters wide raw material

2. Folded width longitudinally arbitrary adjustable

3.product length arbitrary adjustable

4. the horizontal folding,can be one- third or a haft(fold)folding

5. The machine adopts the cylinder to promote

   feeding and cylinder automatic tension control, no,manual

6.the machine all driving mode for imports servo motor,high precision

7.touch screen control, the replacement specifications

  samply enter data at a glance,and the operation is extremely simple
