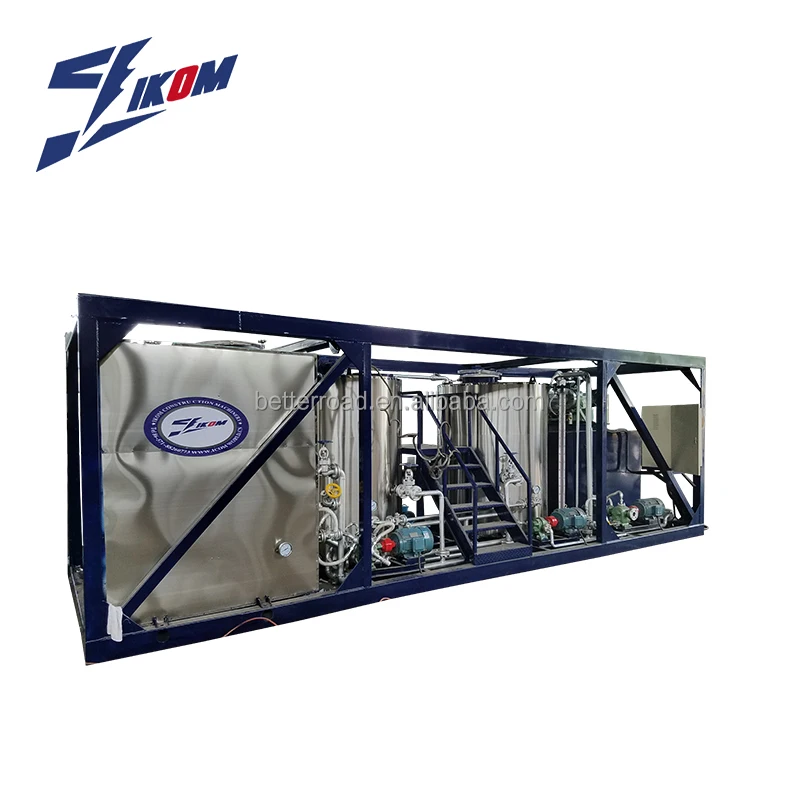

IKOM ZMLR 15 SBS Polymer Modified Bitumen Plant

Product Overview

Description

Key points :
a. Gap of millstone adjustable (0.01mm-20mmm)
b. Bearing oil seal origin from Japan.
c. Bearing support add water cycle cooling device.
d. Mill body heated by heat conducting oil and enclosed attemperator.
Technical specification :
a. Model:ZMLR-15;
b. NO.:1 ;
c. Electrical motor power:75KW;
d. Productivity:15t/h;
e. Dimension:2400*850*700(mm)
f. Weight:1800kg.
(2)Premix tank
A. Layout:vertical steel drum / heating conducting oil and mineral wool
thermal insulation
B. Capacity: 4m3
C. Accessory:pipe, pneumatic valve.
D. Dimension: Diameter/height=1.8Mx 2M
E. Agitator power:7.5KW
F. Quantity:2
(3)Reaction Tank
A. Layout:square steel tank/ heating conducting oil and mineral wool
thermal insulation
B. Capacity: 50m3
C. Accessory:pipe, pneumatic valve.
D. Dimension:Length x height=9.6Mx 2.6M
E. Agitator power:7.5KW
F. Quantity:3
(4)Control room
a. Layout:Heat insulation closed
b. Dimension:4×2.5×2.8(m)
c. Hanging A/C: 1.5
(5)SBS Load material
a. Frequency adjustment twist spiral system
b. Power:4kw
(6)Stabilizer adding device
a. Frequency adjustment twist spiral system
b. Power:0.75kw
c. Quantity:1
(7)Auto control system
a. PLC Programmable control mouth,Japan Mitsubishi
b. Computer:
Mode:Industry controlling machine.
Control: Manual and auto switch freely
Displayer:1
Printer:1
c. Control cabinet:
Mode:Desk
Quantity: 1
Accessory:electrical element, signal receiver and instruments.
d. Control software:SUNWAY
(8)Asphalt pump
a. Model:3QGB80×2—46 3 inch screw pump
b. Flow:36T/h
c. Quantity: 3
(9)Bitumen metering system
2 Premix tank weighed by weight sensor
(10)Spiral-plate heat exchanger
a. Heat dissipation area:100m2
