SHG315 plastic pipe fitting fusion welding machine
- Category: Butt Welders >>>
- Supplier: Rothenberger (Wuxi) Pipe Technologies Co. Ltd.
Share on (1664264256):
Product Overview
Description
Plastic pipes fitting fusion welding machine SHG-315/90
Product Description

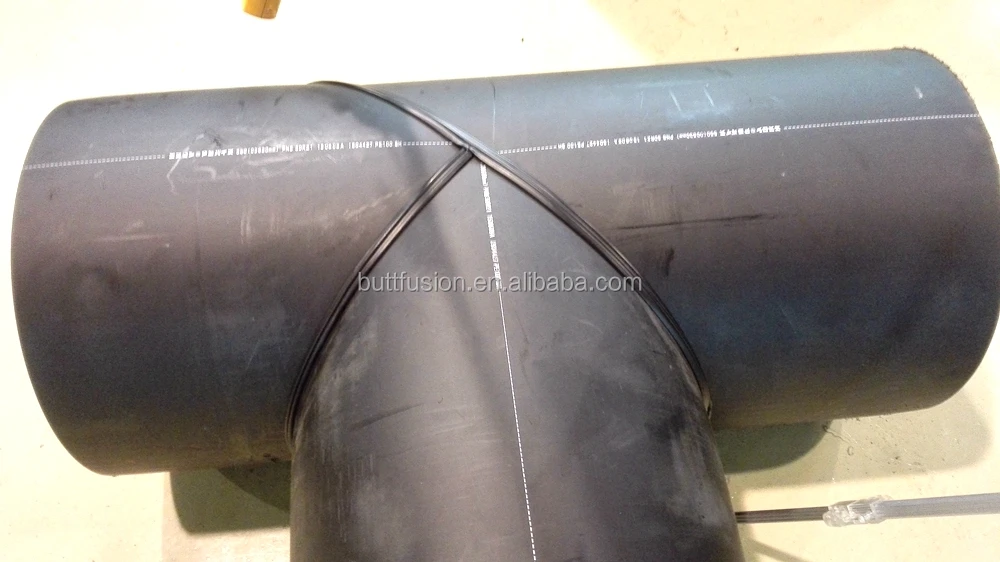

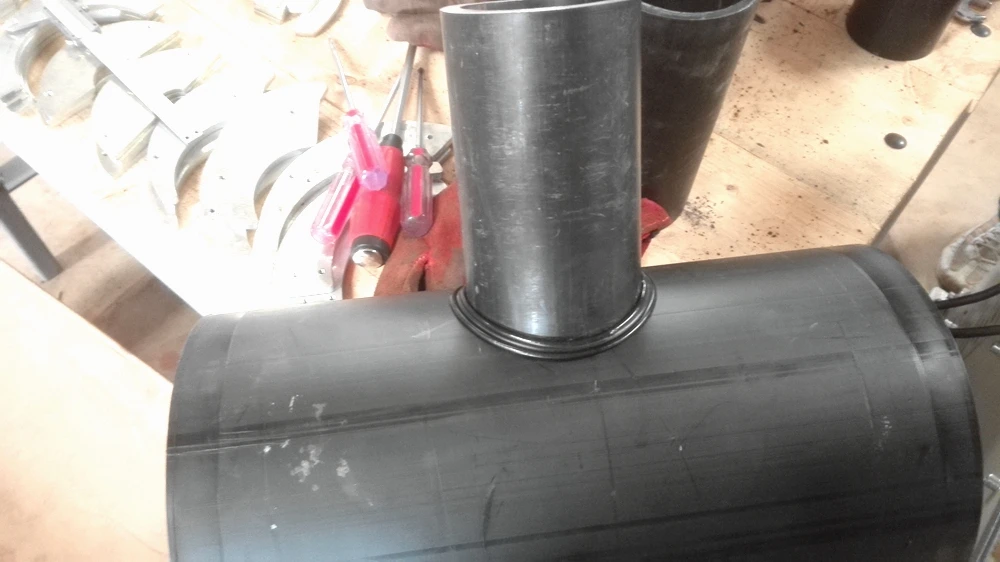

Ranges of tee: 90mm-315mm
(90mm-110mm-125mm-140mm-160mm-180mm-200mm-225mm-250mm-280mm-315mm)
Ranges of cross: 90mm-315mm
(90mm-110mm-125mm-140mm-160mm-180mm-200mm-225mm-250mm-280mm-315mm)

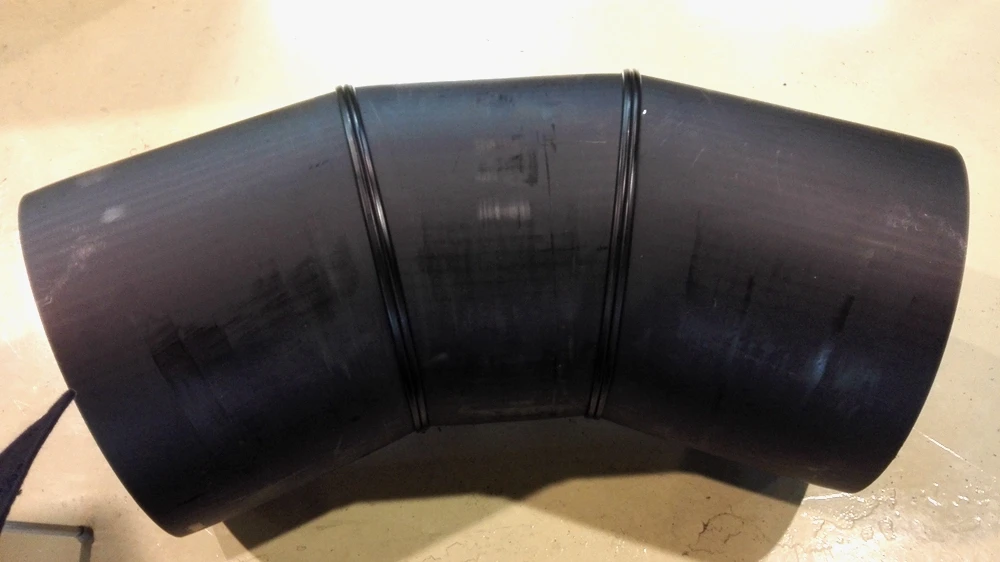

Ranges of elbow(n×11.25°): 90mm-315mm
(90mm-110mm-125mm-140mm-160mm-180mm-200mm-225mm-250mm-280mm-315mm)
u Ranges of application: PE,PP and PVDF
u Working voltage: ~380V ±10%,50Hz
Total power: 7.4 kW , including: planing tool motor:1.5 kW, heating plate:5.15 kW, hydraulic unit motor: 0.75 kW
u Working voltage: ~415V ±10%,50Hz
Total power: 8.38kW , including: planing tool motor:1.5 kW, heating plate:6.13 kW, hydraulic unit motor: 0.75 kW (fitting clamps (Y shape fitting clamps included) are provided as requested)
u PTFE coated heating plate, high accuracy temperature controller, difference in heating plate surface temperature ≤±5°;Environment temperature: -10° ~ 45°
u Electronic count-down timer for heating and cooling time.

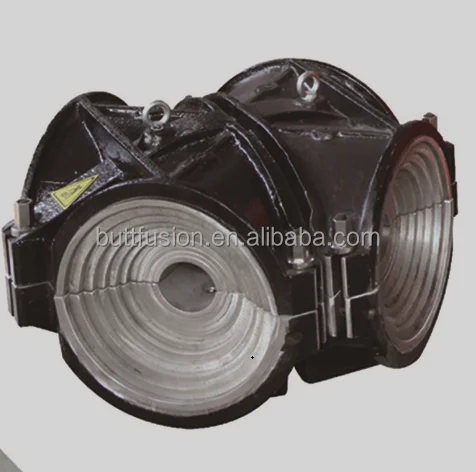

u Whole machine consists of four parts: basic frame ( including: heating plate, planing tool, and hydraulic system), elbow clamps, tee clamps, and cross clamps
ACCESSORIES LIST
SHG-315/110 Fitting fusion welding machine
Item | Description | Unit | Qty | Remark |
1 | Machine | set | 1 |
|
2 | 9-cord cable | set | 1 |
|
3 | Inserts of cross clamps | set | 1 | 90mm~280mm |
4 | Cross clamps | set | 1 |
|
5 | Inserts of elbow clamps | set | 1 | 90mm~280mm |
6 | Elbow clamps | set | 1 |
|
7 | Motor of planing tool | set | 1 |
|
8 | Pressure plate bolt | Set | 1 | External hexangular |
9 | Binding bolt of cross clamps | set | 1 | External hexangular |
10 | Special bolt for clamp | set | 1 |
|
11 | Pressure plate of elbow clamp | set | 1 | M8 |
12 | Locating pin | pcs | 2 |
|
Attachment with machine | ||||
1 | Leather hammer | set | 1 |
|
2 | Ratchet wrench | set | 1 | 22mm |
3 | Double open wrench | set | 1 | 11~13mm |
4 | Double open wrench | set | 1 | 22~24mm |
5 | Screwdriver | set | 1 | 200mm |
6 | Blade of planing tool | pcs | 2 |
|
7 | Conformity certificate | pcs | 1 |
|
8 | Operation instruction | pcs | 1 |
|
Spare parts | ||||
1 | Temperature sensor | Set | 1 | PT100 |
2 | Heating switch | Set | 1 |
|
3 | Temperature controller | Set | 1 |
|
PACKING LIST
SHG-315 Fitting fusion welding machine
Item | Dimension with packing(mm) | N.W(kg) | G.W(kg) | Remark |
1 | 1350×1140×1660 | 550 | 665 | Basic frame, attachments and fittings |
2 | 810×430×580 | 90 | 100 | Cross/Tee inserts(1) |
3 | 810×430×580 | 90 | 100 | Cross/Tee inserts(2) |
4 | 600×380×540 | 65 | 90 | Elbow inserts |
Total | 3.1 CBM | 795 | 955 |
|
