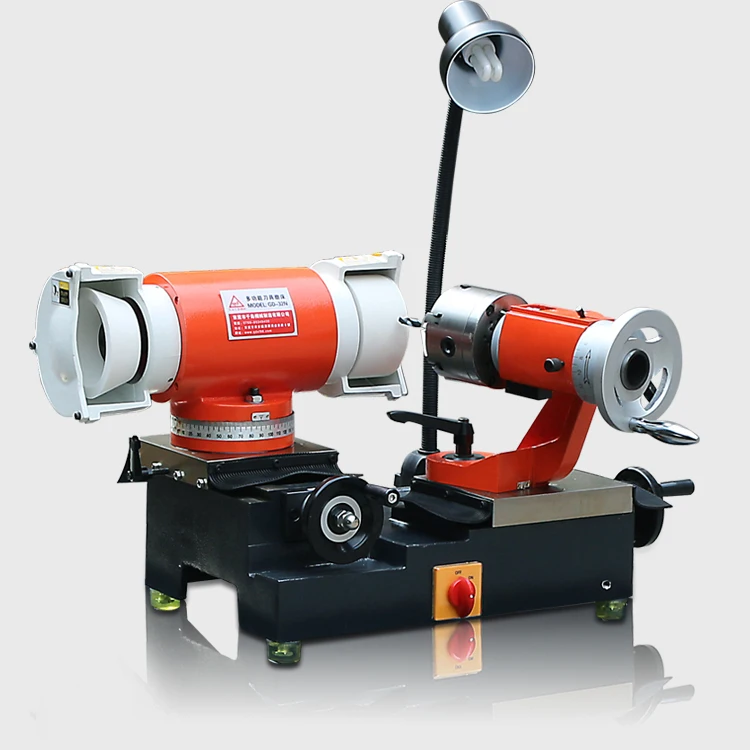

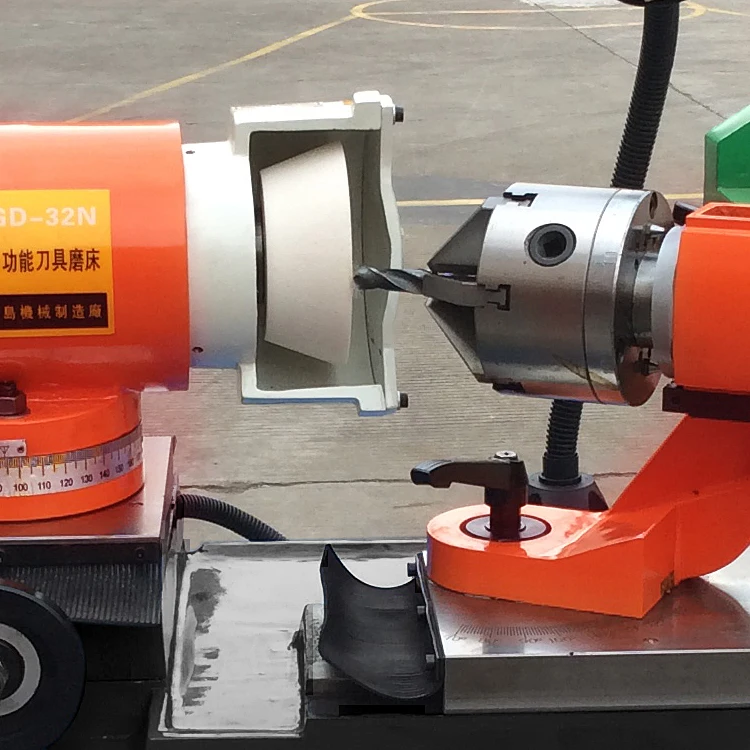

High quality universal end mill milling cutter grinder GD-32N CE-certification drill bit cutter tool grinder
Product patent no.:ZL 2011 2 0532434.8
Specifications
Longitudinal travel of the operating table
90mm
Horizontal travel of the operating table
150mm
Wheel rotate angles
360°
Wheel size
125*50*32mm
Drill front-end Angle
90°~180°
Taper No.
MT5
The speed of grinding wheel
2800rpm
Motor
1HP,380V
Gross Weight
112kg
Packing size
730*500*550mm

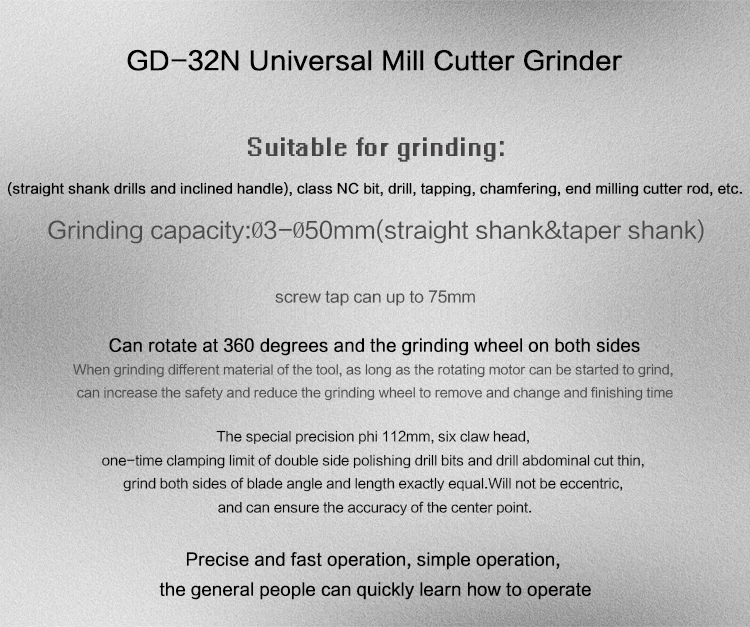

Product features
1. The grinding ability: Phi 3 ~ Phi 50mm straight shank drill, silk attack (oblique handle Morse 5# maximum grinding to a diameter of 75mm) can rotate 360 degrees and both sides at the same time The fashion set the grinding wheel, when grinding different material of the tool, as long as the rotary motor can be started to grind, can increase the safety and reduce the grinding wheel to remove and changeTime to repair.
3. The special precision phi 112mm and six claw chuck and a clamping to can grind both sides of drill bits and drill abdominal cut thin, grinding after both sides of blade angle and The length is exactly the same, will not be eccentric, and can ensure the accuracy of the center point.
4 ground fast and accurate, simple to use, the general people can quickly learn how to operate.

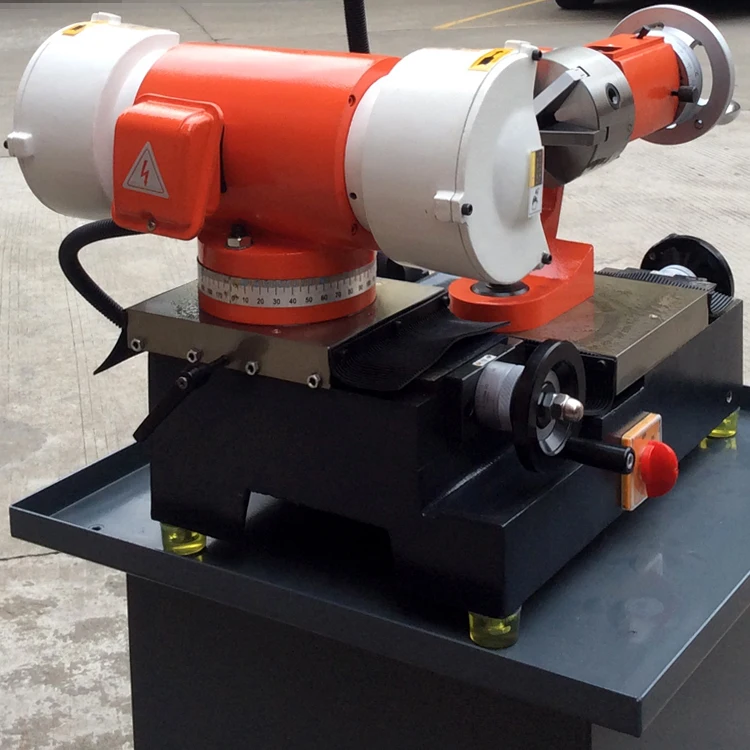

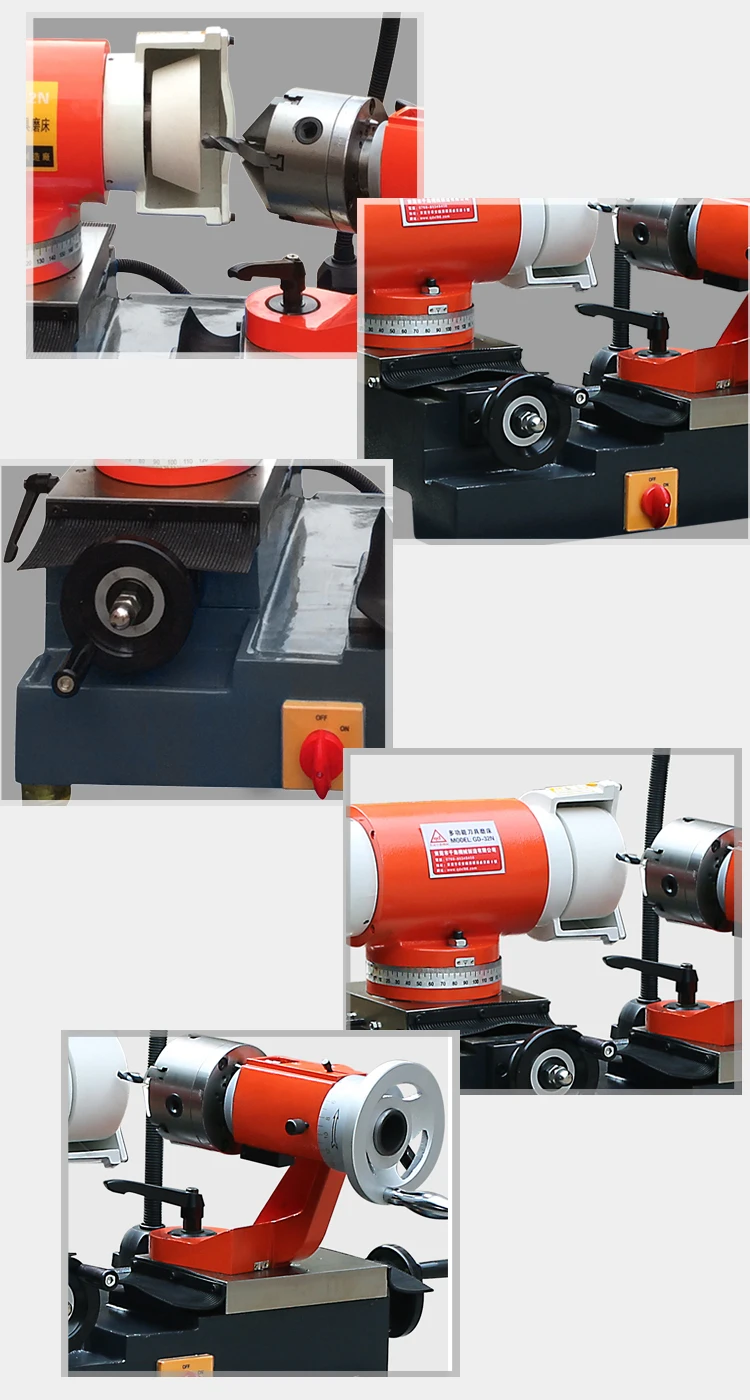

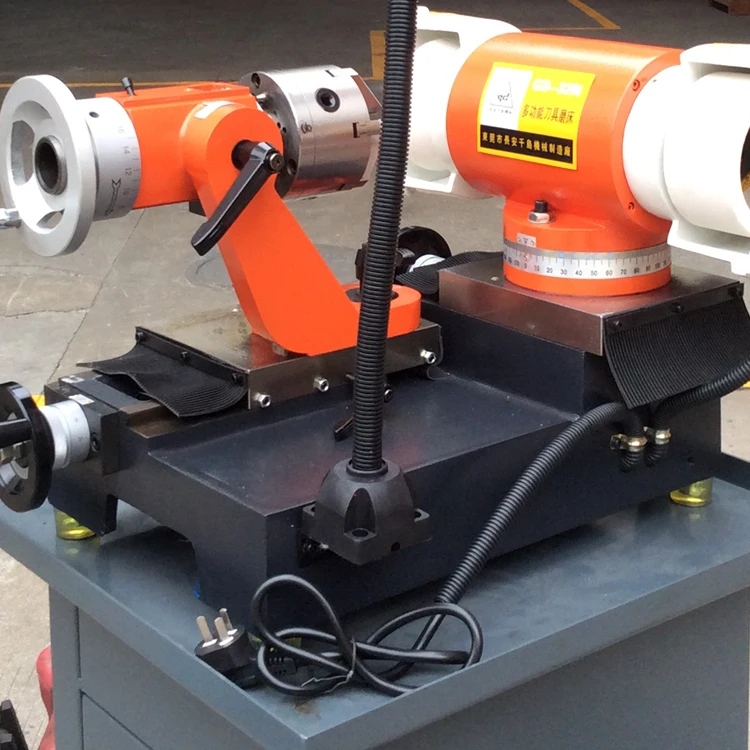

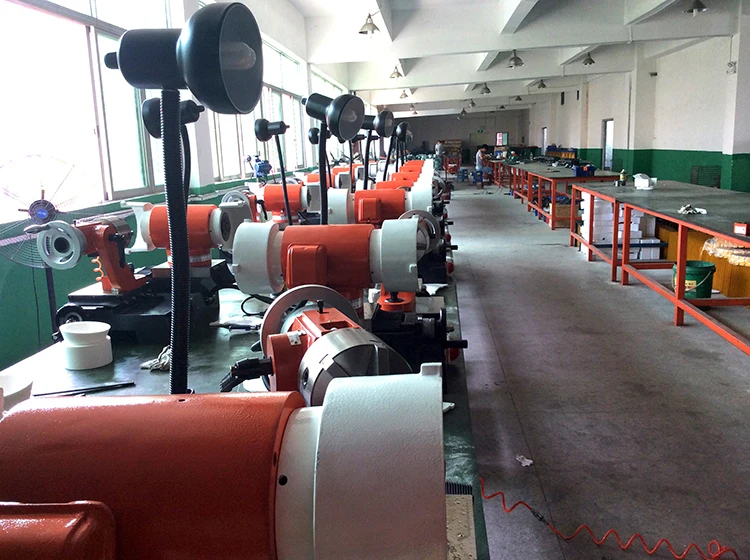

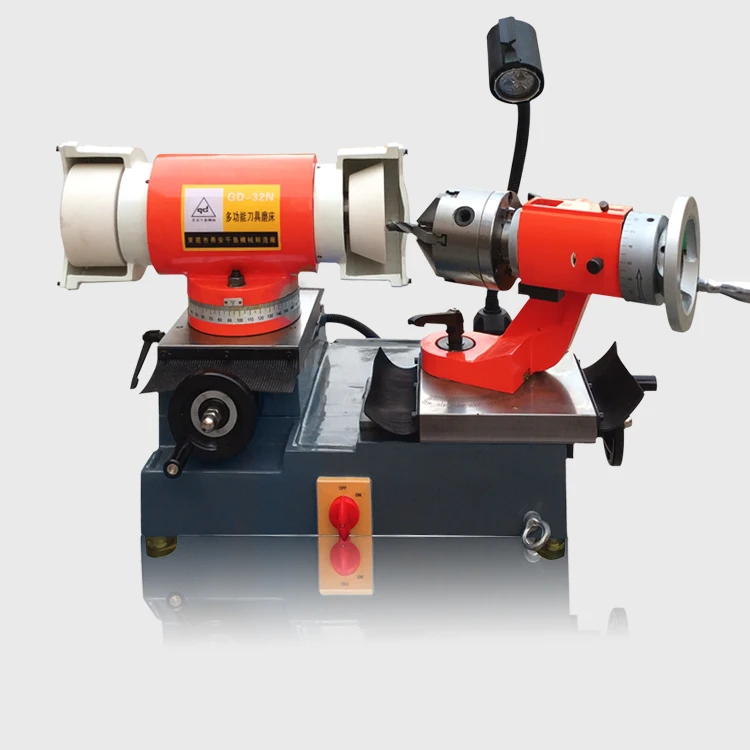

Product Shows
FAQ
1.Q: What is your MOQ of this item? A: Our MOQ is 1 set
2.Q: What is the delivery time? A:1-2 days if in stock,15-20days if customize after receiving your T/T or Western Union.
3.Q: Is it all right to make customer's own brand name? A: OEM is ok.
4.Q: Where is your Loading Port? A:Shenzhen / Guangzhou ,China port.
5.Q:Are you a manufactuer or trading company? A:We are a manufactuer specialized in drill bit grinder,end mill re-sharpener,screw tap re-sharpener,lathe tool grinder,saw blade re-sharpener,chamfer,universal cutter grinder,tapping machine and electrical tapping machine more than 10 years.
6. Q:How many exhibitions will you participate in every year? A: As last year we took part in 80 exhibitions, which include the 2 exhibition in the other countries.
7.Can you provide the CE certification?
A: Yes, we can offer CE certification for our products!
