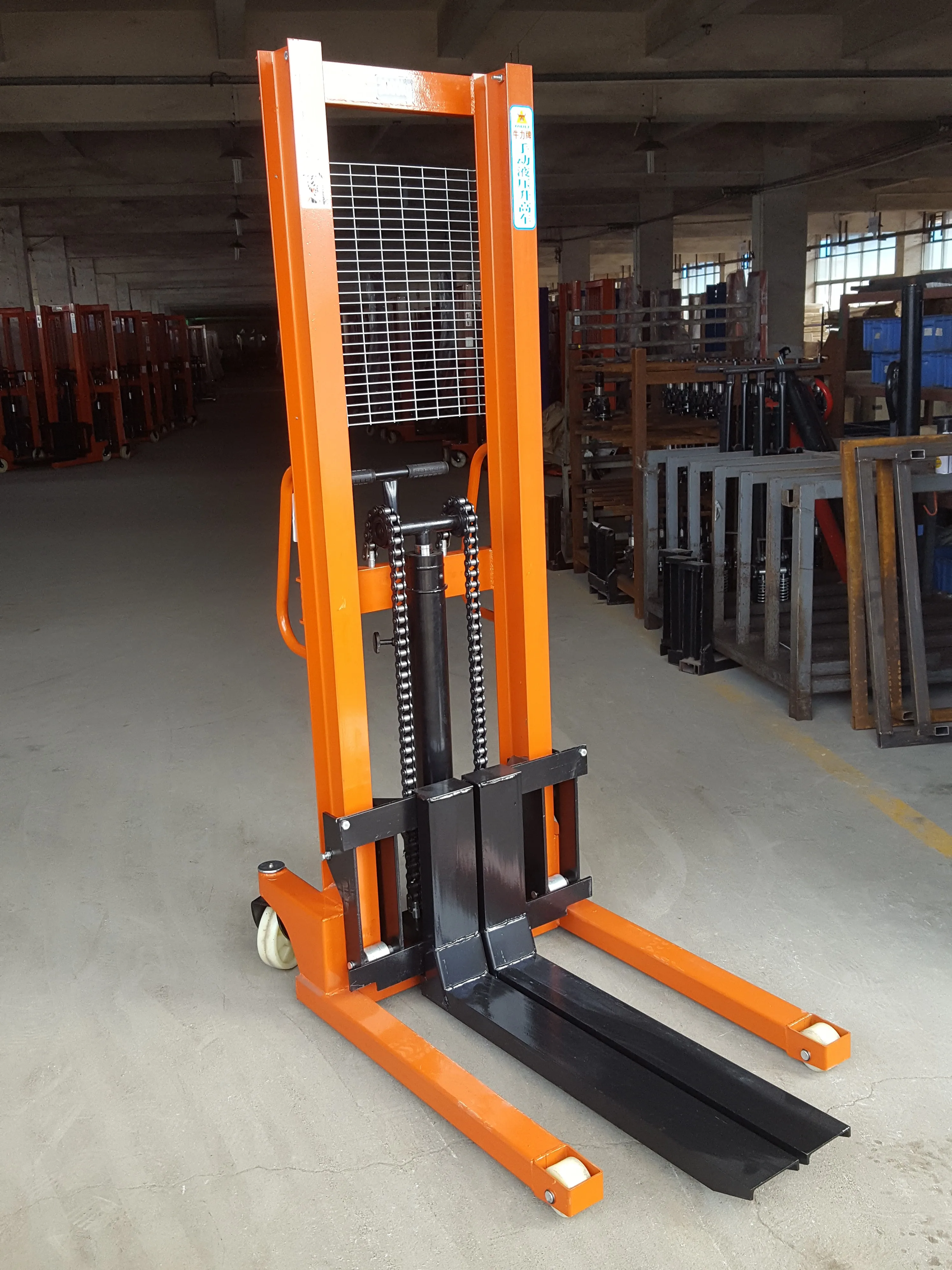

2 Ton Manual Hydraulic Stacker With Adjustable Forks For Sale
US $270.00-$550.00
NIULI CTY 500KG 1000KG hand hydraulic channel steel stacker with CE certificate
- Category: Stacker & Reclaimer >>>
- Supplier: Niuli Machinery Manufacture Co. Ltd.
Share on (1695684449):
Product Overview
Description
hydraulic hand lift stacker specification:

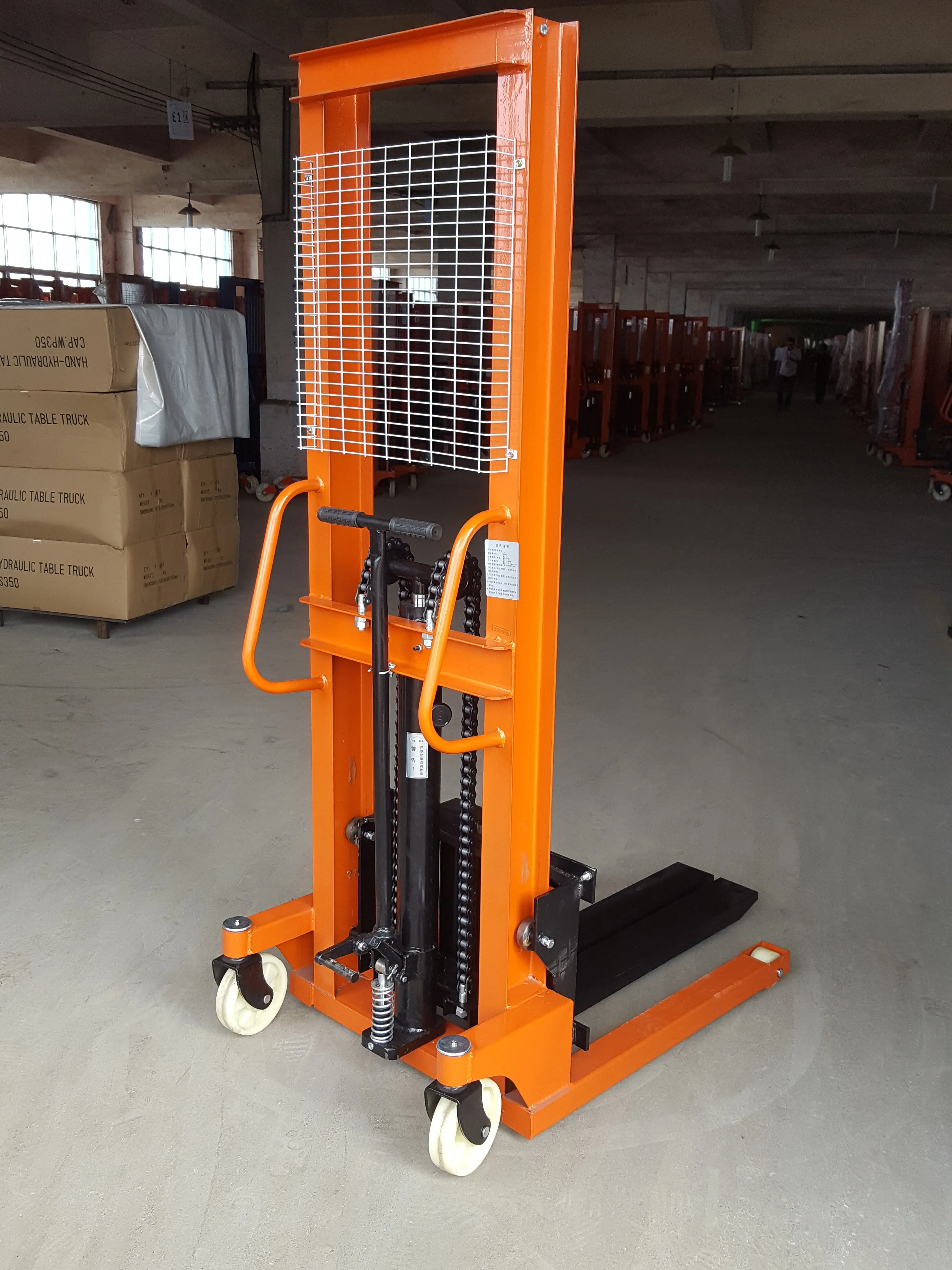

Hand Stacker is hand push & hand lift stacker which provides cost-effective handling for both vehicle loading
and production areas. Easy maintenance and low running costs.
model | unit | CTY-A05 | CTY-A10 | CTY-A20 | CTY-A20Z | CTY-A30 |
Rated lifting capacity | kg | 500 | 1000 | 2000 | 2000 | 3000 |
Lowered height of forks | mm | 85 | 85 | 85 | 85 | 110 |
Max lifting height | mm | 1200 | 1600 | 1600 | 1600 | 1600 |
Fork length | mm | 750 | 900 | 900 | 900 | 1000 |
Adjustable width of forks | mm | 180~396 | 210~560 | 250~650 | 250~650 | 290~750 |
Frame material | 8#U-steel | 10# U-steel | 12# I-beam | 14# I-beam | 16# I-beam | |
Fork material | 8# U-steel | 10# U-steel | 12# U-steel | 12# U-steel | 14# I-beam | |
Lifting speed | mm/stroke | 20 | 20 | 14 | 14 | 10 |
Lowering speed | mm/stroke | controllable | controllable | controllable | controllable | controllable |
Outer width of front legs | mm | 580 | 750 | 760 | 760 | 760 |
Operation power of crank | kg | 15 | 24 | 32 | 32 | 40 |
Minimum amount oil | L | 1.2 | 1.6 | 2 | 2 | 3 |
Front wheel size | mm | φ85×50 | φ85×50 | φ85×50 | φ85×50 | φ100×50 |
Rear wheel size | mm | φ180×50 | φ180×50 | φ180×50 | φ180×50 | φ180×50 |
External dimension | mm | 1160×590×1655 | 1380×755×2040 | 1460×770×2040 | 1460×770×2040 | 1650×800×2060 |
