Swelling Waterstop Strip With Excellent Performance

Product Overview

Description

Brief Introduction

Waterstop strip is a special new type waterproof products, not only it has performance of ordinary rubber products, but also its waterproofing property is better and more reliable than common rubber waterproof products. When it touch with water, its volume will swell three or four times than original volume and it will stuff up all irregular concrete joint, then achieve to stop leak thoroughly.

Classification

It can be divided into BW type and PZ Type. Any client can select it according to different demand of water-proof construction.





Difference in PZ Type and BW Type

1.The performance of PZ Type is better than BW Type
2.PZ Type is vulcanized rubber, instead, vulcanized process isn't necessary for BW type
3.Almost all BW type is back in market, but PZ Type can be produced in different color, such as black, red, blue and so on (red and blue are more popular in market)

Parameter

BW Type

Item	Index
	BW-150	BW-220	BW-300
Expansion Rate %	150	220	300
Flow at high temperature(80ºC×5h)	No flow
Low temperature test(-20ºC×2h)	No embrittlement


PZ Type

Item		Index
		PZ-150	PZ-250	PZ-400	PZ-600
Hardness (Shore A)		42±7		45±7	48±7
Tensile strength/Mpa≥		3.5		3
Elongation at break/%≥		450		350
Expansion rate in volume/%		150	250	400	600
Repeated water immersion test	Tensile strength/Mpa≥	3		2
	Elongation at break/%≥	350		250
	Expansion rate in volume/%≥	150	250	300	500
Low temperature bending(-20°C*2h)		No crack

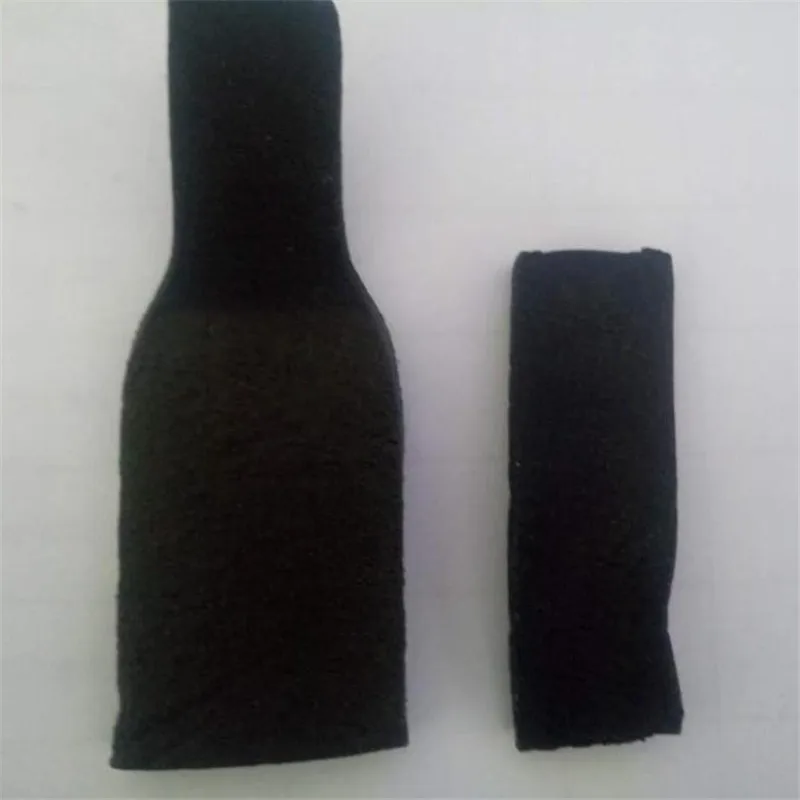

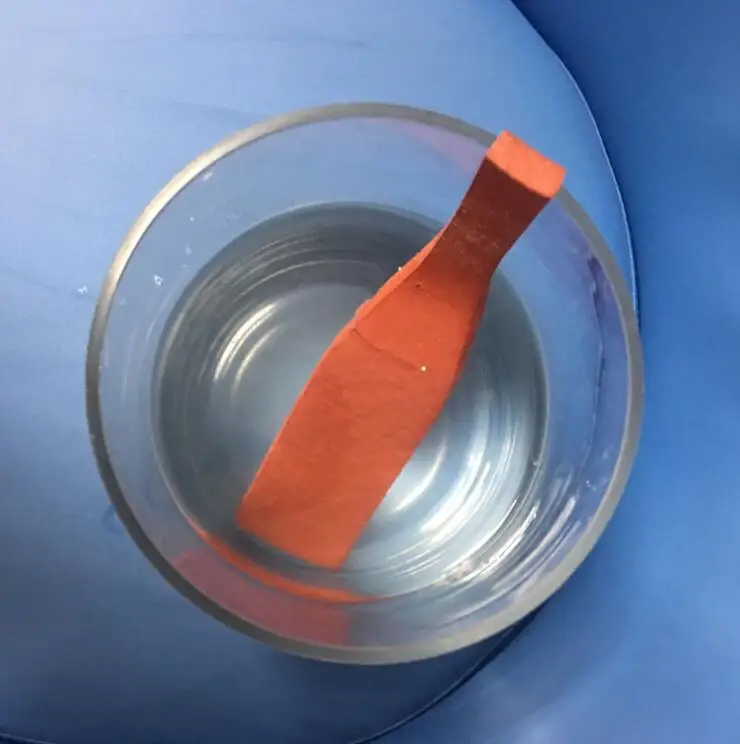

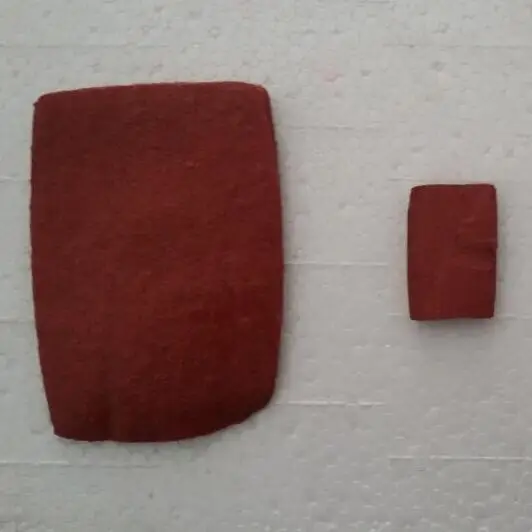

Testing Result
