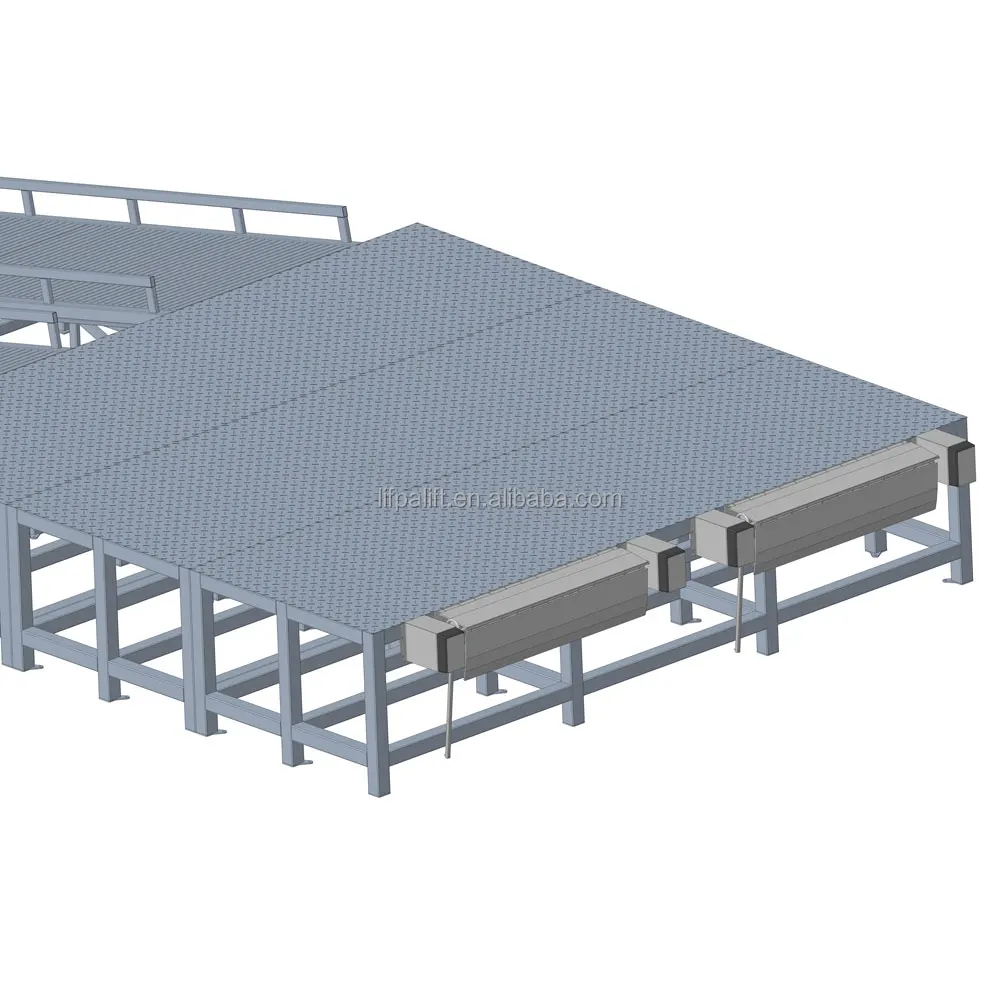

6000kg Manual Mechanical Edge of Dock Leveler

Product Overview

Description

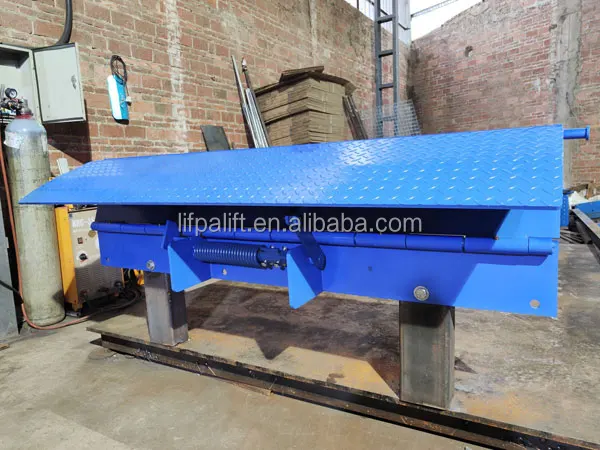

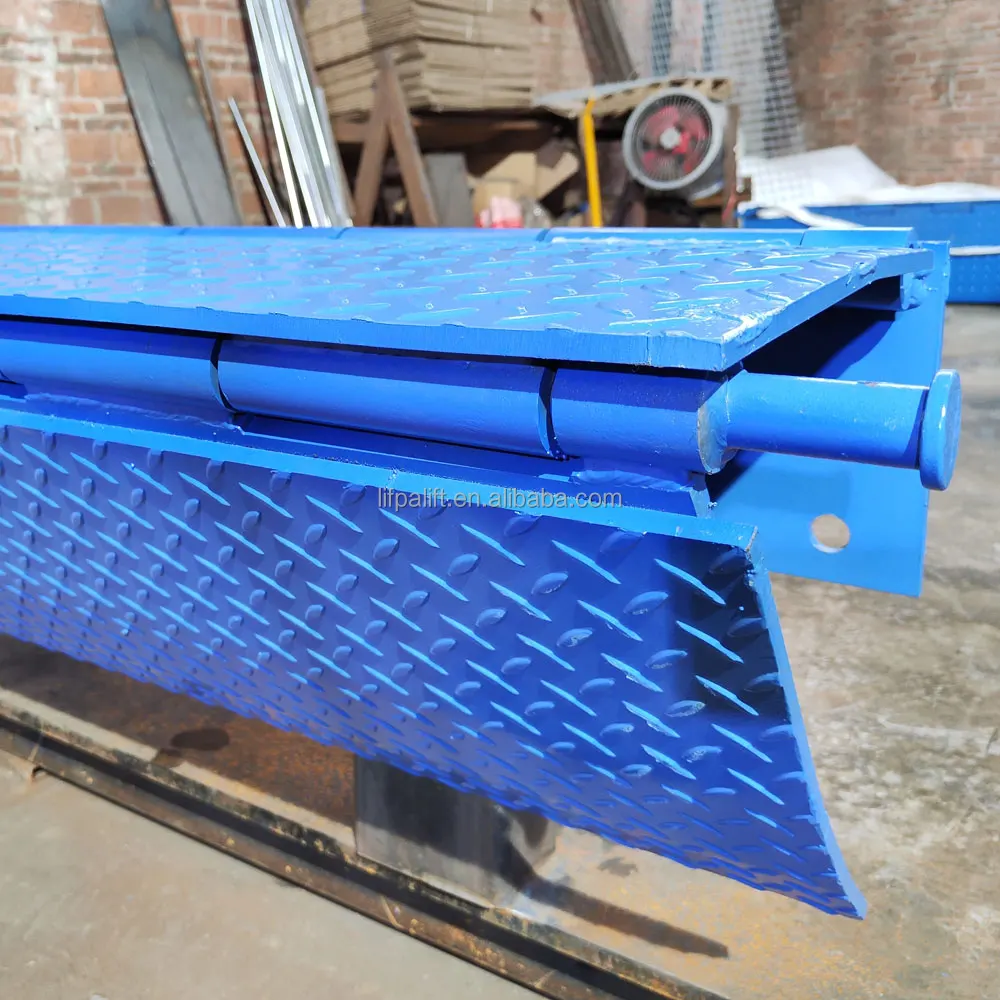

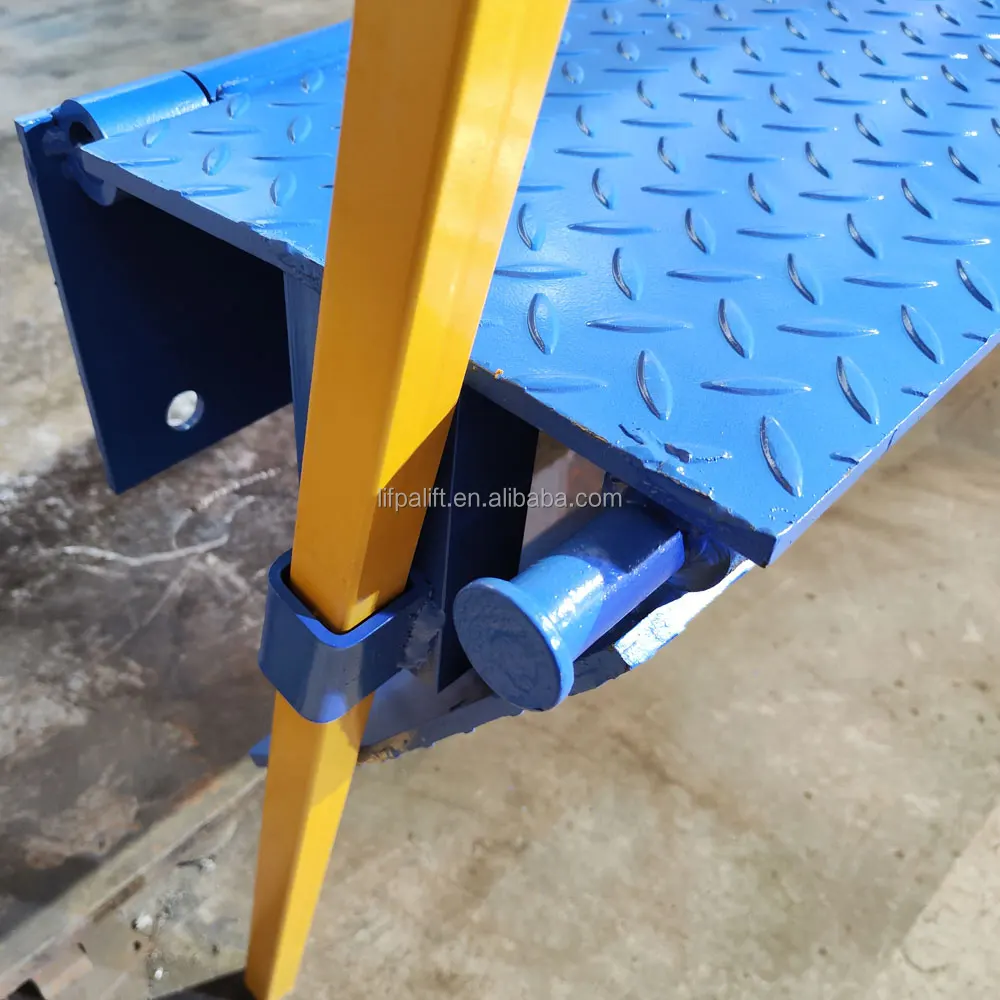

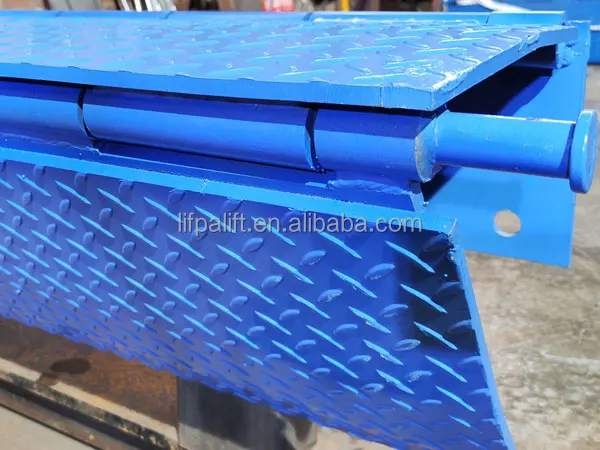

Real Pictures







Features & Benefits

• Permanently attaches to dock to create a ramp to trailer

• High strength steel construction minimizes weight

• Adjustable torsion spring counterbalance mechanism

• Units comes complete with bumpers and hook

• Service range 5 in. above to 5 in. below dock height

• All steel constructions with Powder coated finish





Product Details

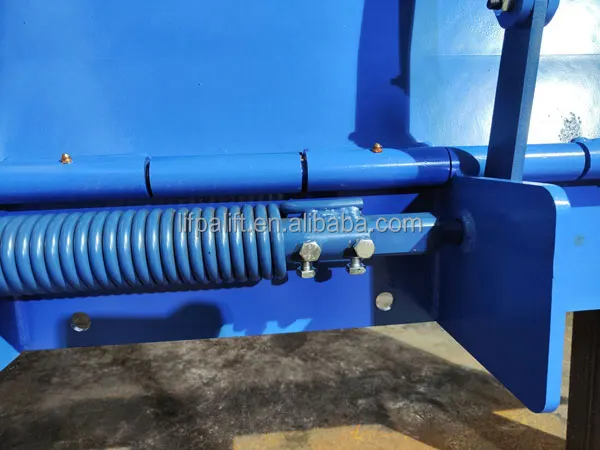

• Adjustable torsion spring counterbalance mechanism

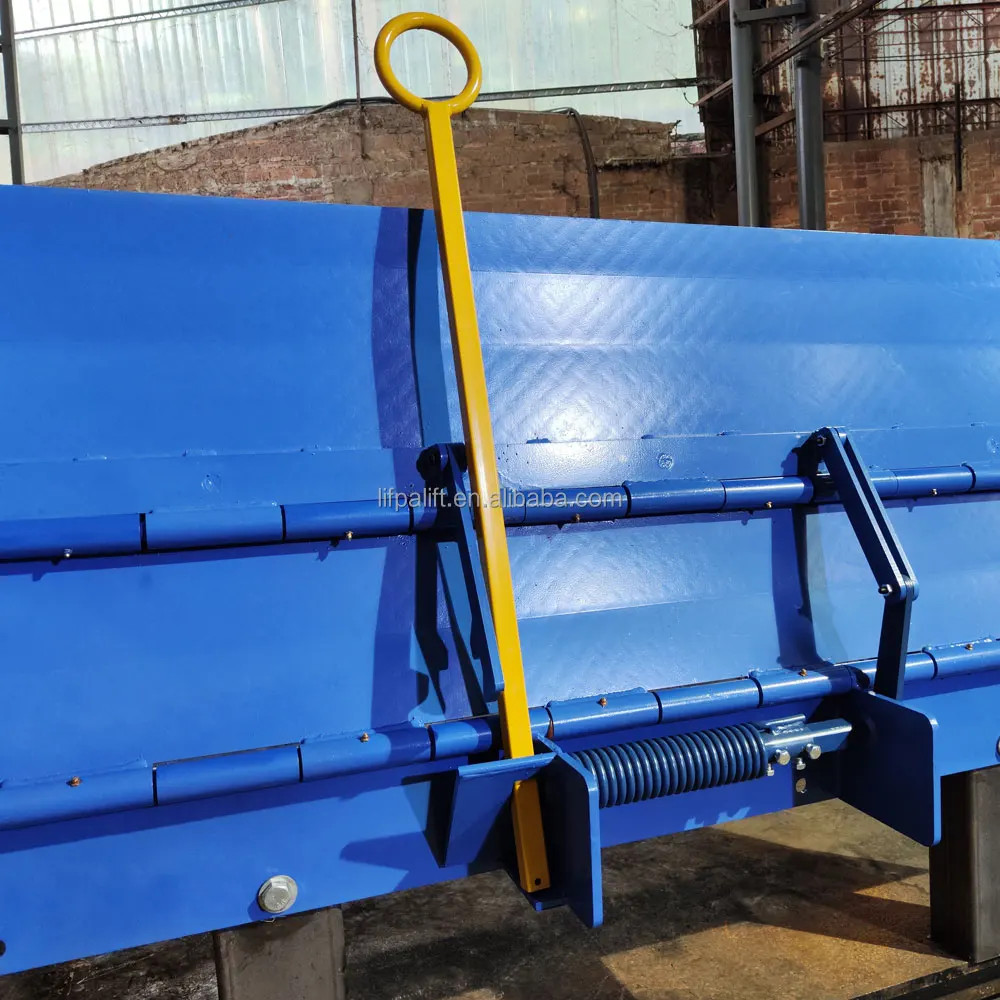

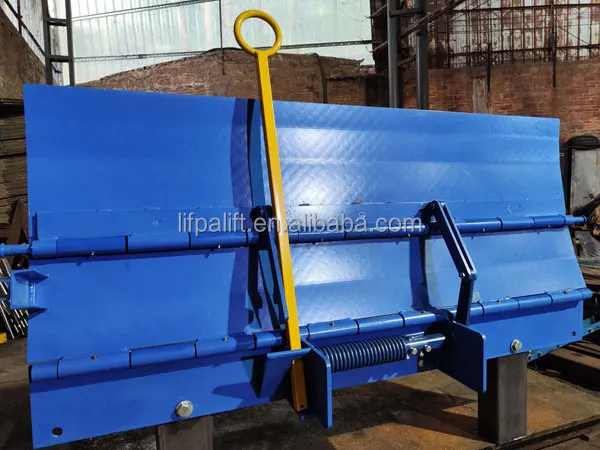

• Comfort grip handle has secondary use as maintenance stand

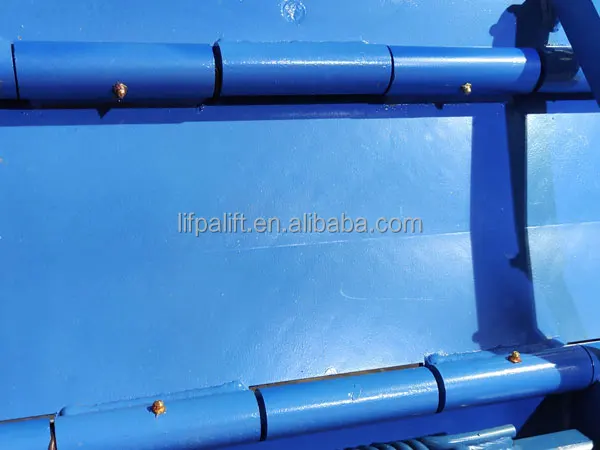

• Grease fittings provided on all models.

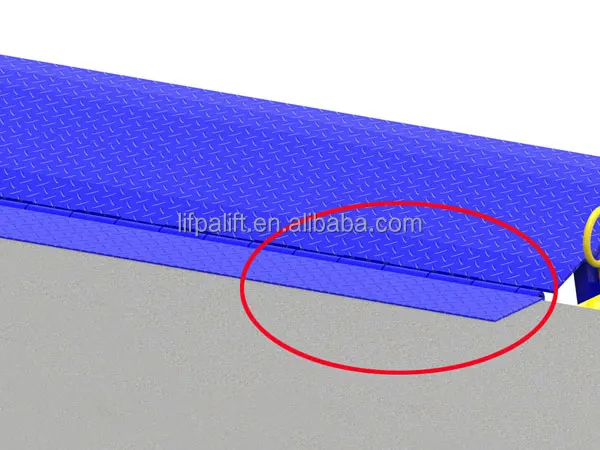

• 240mm long steel transition plate for simple installation.







• Powder-coat finish for maximum durability.

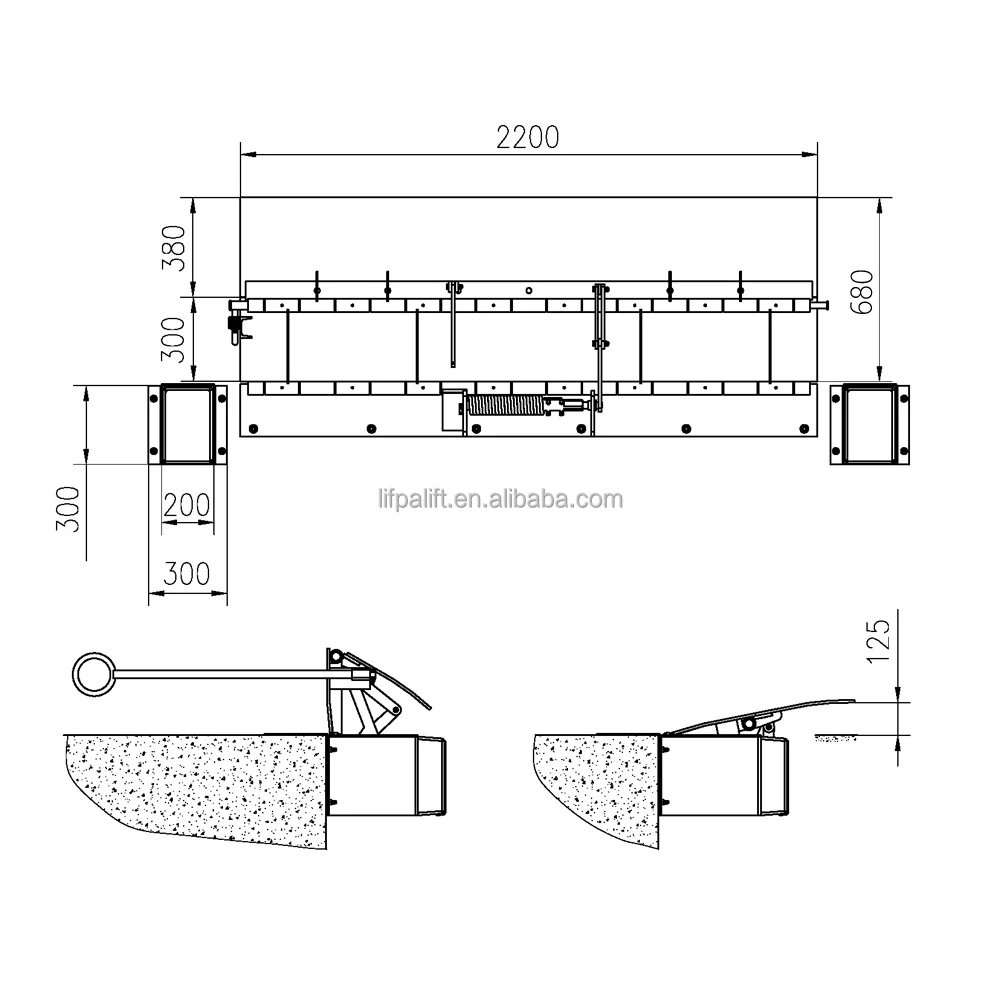

Main Parameters

Model		LE-06 / LE-08 / LE-10
capacity - dynamic	ton	6.0 /8.0 / 10.0
height difference	mm	-125 / +125
ramp size - W x L	mm	1830 x 300	1830 x 300	1830 x 300
lip dimenisons	mm	1830 x 380	1830 x 380	1830 x 380
overall width	mm	2530	2530	2530
weight	mm	270	290	310
