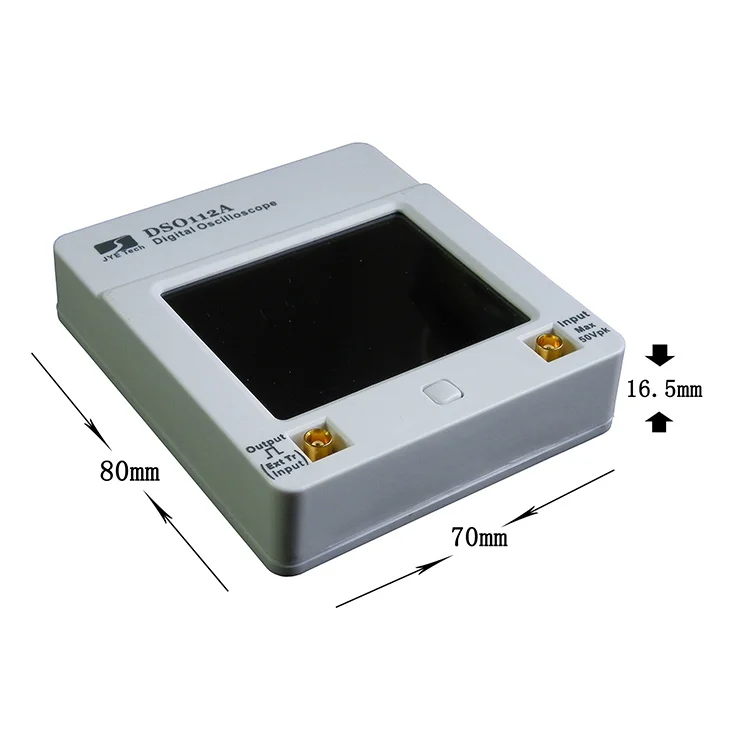

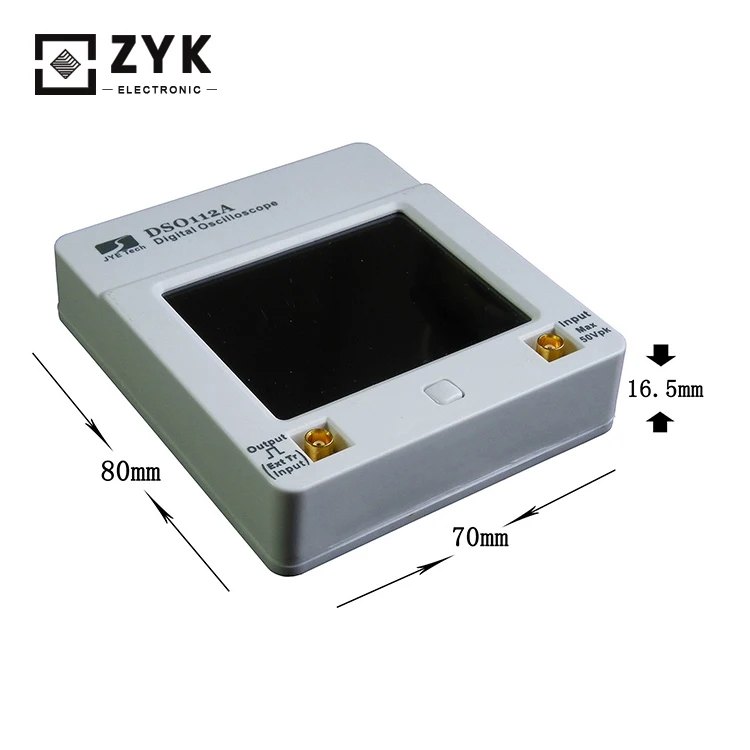

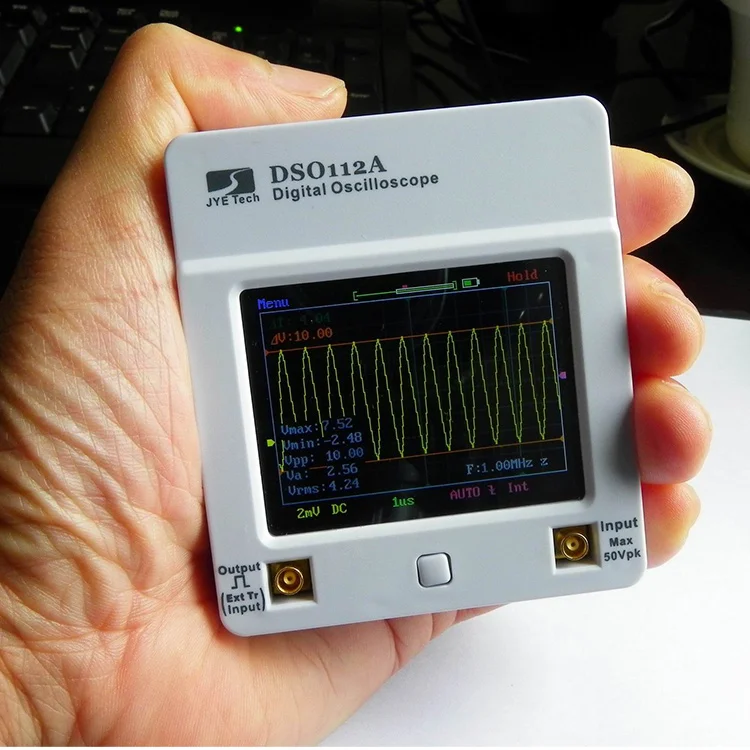

DSO112A Coral Pocket Digital Storage Oscilloscopes
DSO Coral (112A) is an upgraded model of DSO112 (see DSO112) with re-designed schematic and PCB. Due to the new design this oscilloscope becomes more accurate and reliable. As high as 2mV/div sensitivity and ultra low background noise made the device particularly useful for measuring weak signals. Up to 24 presets with customizable titles allow setups be retrieved in seconds.
While keeping all performance of DSO112 this new model brings in the following improvements:
1.Maximum sensitivity was increased to 2mV/div (older version is 5mV/div) with lower background noises.
2.Fixed the vertical position mismatch problem found in the older model.
3.Save/recall up to 24 parameter presets. This allows quick setup for frequently performed measurements.
4.Preset titles can be customized for easy remembering and identifying.

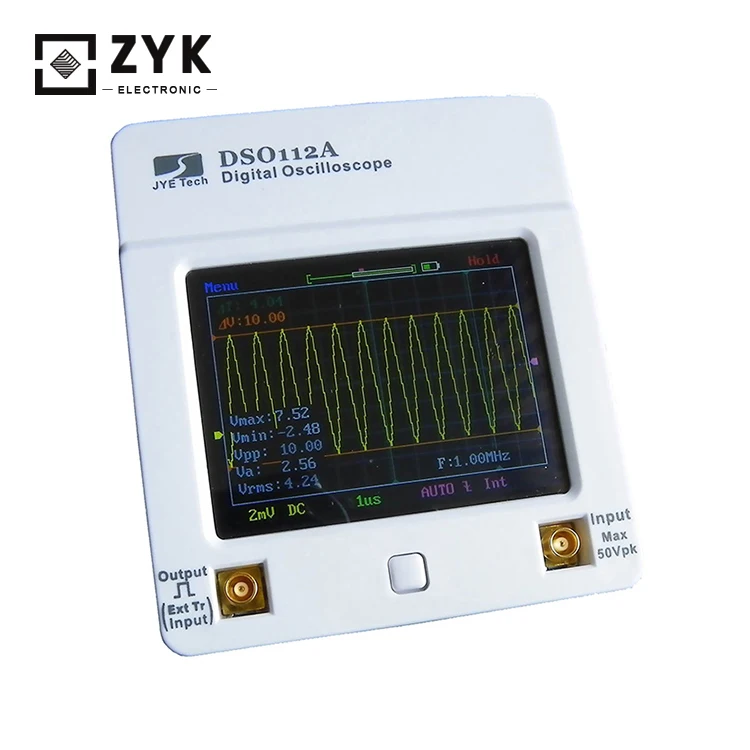

5.Expanded and improved on-screen measurement displays which include frequency, Vmax, Vmin, Vavr, Vpp, and Vrms.
6.Added external trigger feature.

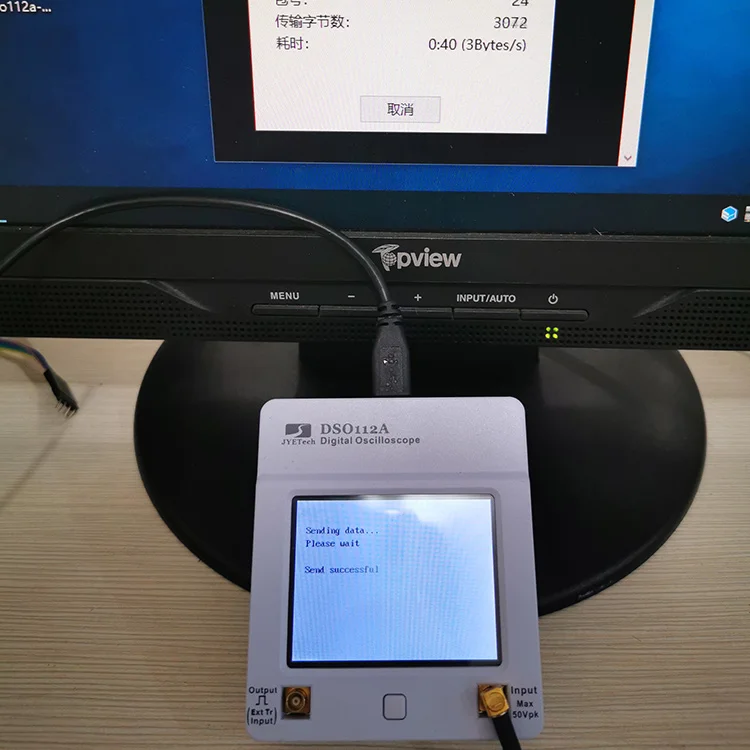

7.Provided a two-way serial control interface which can output data/measurements and receive commands. This will make the device suitable for integration to customer applications.
8.Replaced out-dated miniUSB connector with more popular microUSB connector.
9.Enclosure strength enhanced.
1.Maximum sensitivity was increased to 2mV/div (older version is 5mV/div) with lower background noises.
2.Fixed the vertical position mismatch problem found in the older model.
3.Save/recall up to 24 parameter presets. This allows quick setup for frequently performed measurements.
4.Preset titles can be customized for easy remembering and identifying.
5.Expanded and improved on-screen measurement displays which include frequency, Vmax, Vmin, Vavr, Vpp, and Vrms.
6.Added external trigger feature.
7.Provided a two-way serial control interface which can output data/measurements and receive commands. This will make the device suitable for integration to customer applications.
8.Replaced out-dated miniUSB connector with more popular microUSB connector.
9.Enclosure strength enhanced.
Specification | ||
No. of Channels | 1 | |
Analog Bandwidth | 0 - 2MHz | |
Sensitivity | 2mV/Div - 20V/Div | |
Sensitivity error | < 5% | |
Resolution | 8-bit | |
Input Impedance | 1M ohm | |
Maximum Input voltage | 50Vpk | |
Coupling | DC, AC, GND | |
Voltage measurement cursors available Auto-measurement of Vavr and Vpp | ||
Related Products
Company Profile
Guilin Zhongyinke Electronic Equipment Factory is located in the famous tourism city of Guilin, China, it is focus on electronic DIY kits like: Intelligent tracking line car, mini tesla coils, soldering practice plate, digital storage oscilloscope and other electronic equipments. Zhongyinke is an electronic equipment factory integrating production, design and R&D. Its electronic equipment products sell well in more than 100 countries around the world.
Our company has more than 15 years of OEM production and export experience. Its excellent product quality, competitive price and advanced after-sales service have been widely recognized by domestic and foreign customers.
The factory not only has its own strong design engineer team, but also tests the quality of raw materials, production lines and products before delivery for more than three times, so don't worry anything, we are a professional electronic equipment factory with premium products.
The factory not only has its own strong design engineer team, but also tests the quality of raw materials, production lines and products before delivery for more than three times, so don't worry anything, we are a professional electronic equipment factory with premium products.
Quality Control
Certifications

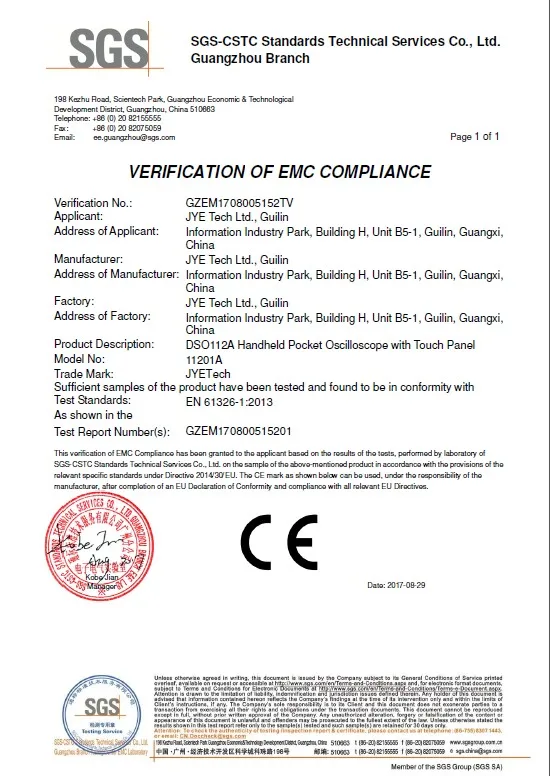

Our products have quality assurance, we have TUV, CE, FCC, ROHS and others certificates.
