Tenda AC23 AC2100 Router Gigabit 2.4G 5.0GHz Dual Band 2033Mbps Wireless Router Wifi Repeater with 7 High Gain Antennas Wider
- Category: Routers >>>
- Supplier: Henan Minerva Industrial Co. Ltd.
Share on (1700004063404):
Product Overview
Description

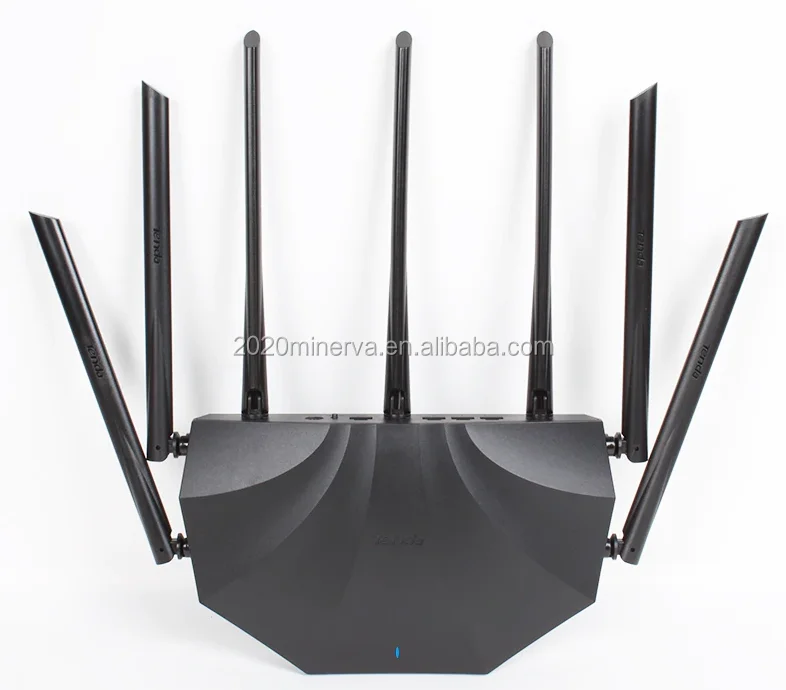

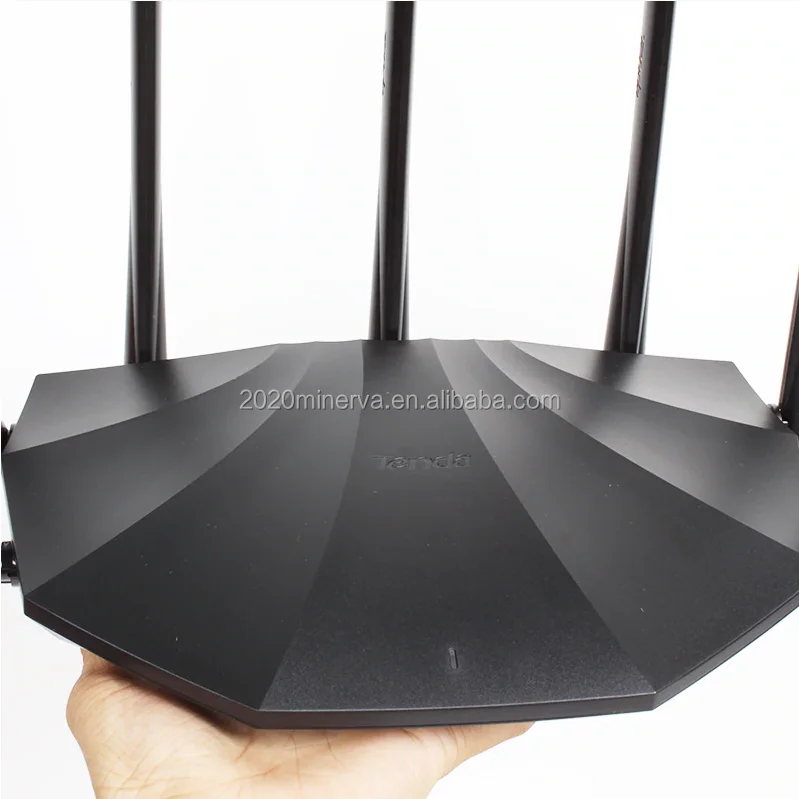

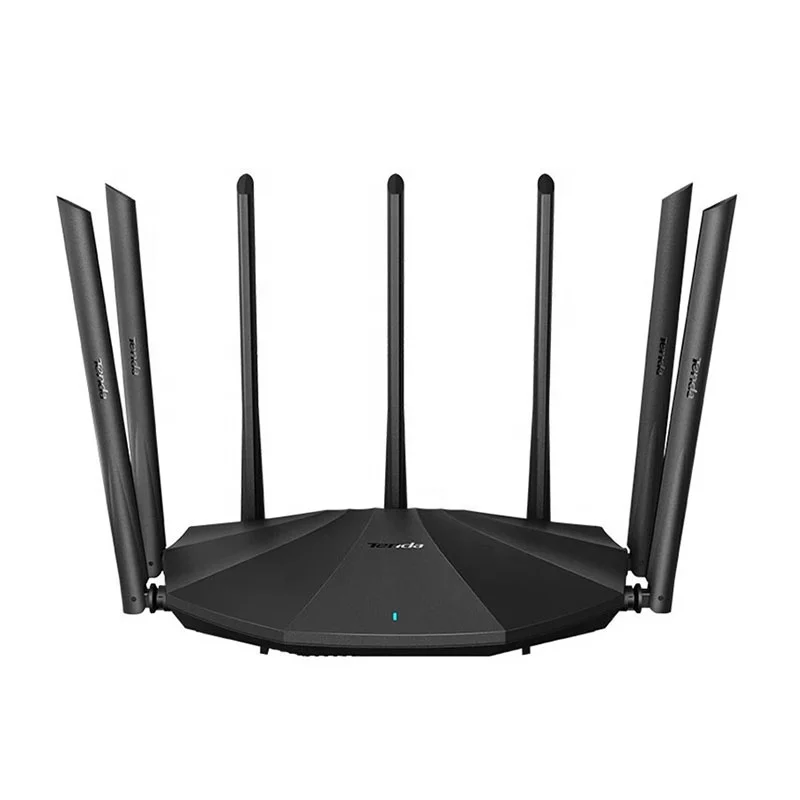

AC23 / Router / AC2100 Dual Band Gigabit WiFi Router
AC23 is a dual band gigabit wireless router specially designed for households with high speed internet access. It supports
802.11ac wave2 techonology and provides WiFi speed up to 2033Mbps (2.4 GHz: 300Mbps, 5GHz: 1733Mbps) to achieve the best performance for your fiber internet connection. Powered by 4X4 MU-MIMO technology of 5GHz band, it provides wider WiFi coverage and faster WiFi speed than regular routers with 3X3 MU-MIMO technology. Equipped with full gigabit ports, it supports up to 1000Mbps bandwith access. The 28nm 1GHz CPU equipped with 500MHz co-processor, dual-core design brings a faster processing speed and provides optimized operation. Featured with 7*6dBi external antennas , AC23 outshines in performance and wall penetration capacity.
AC23 is a dual band gigabit wireless router specially designed for households with high speed internet access. It supports
802.11ac wave2 techonology and provides WiFi speed up to 2033Mbps (2.4 GHz: 300Mbps, 5GHz: 1733Mbps) to achieve the best performance for your fiber internet connection. Powered by 4X4 MU-MIMO technology of 5GHz band, it provides wider WiFi coverage and faster WiFi speed than regular routers with 3X3 MU-MIMO technology. Equipped with full gigabit ports, it supports up to 1000Mbps bandwith access. The 28nm 1GHz CPU equipped with 500MHz co-processor, dual-core design brings a faster processing speed and provides optimized operation. Featured with 7*6dBi external antennas , AC23 outshines in performance and wall penetration capacity.
Product Name | AC23 | ||||||
EIRP Power (Max.) | 2.400-2.4835GHz:19.86dBm (EIRP) 5.150-5.250GHz:22.96dBm (EIRP) | ||||||
Standard&Protocol | IEEE802.3, IEEE802.3u,IEEE802.3ab | ||||||

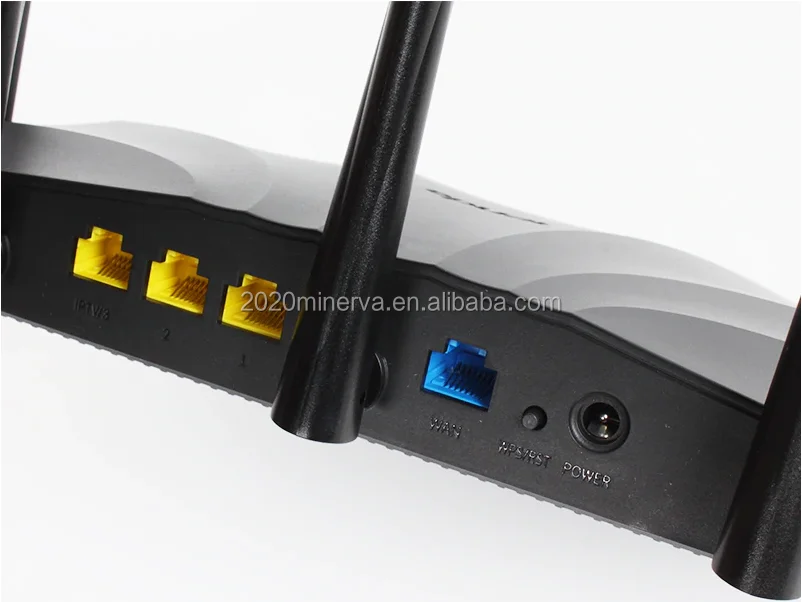

Interface | 1*10/100/1000Mbps WAN port 3*10/100/1000Mbps LAN ports | ||||||
Antenna | 7*6dBi external antennas | ||||||
Button | 1* WPS/Reset button | ||||||
Power | Input：AC 100-240V~50/60Hz 0.6A Output：DC 12V1.5A | ||||||
Dimension | 238.9*144.3*40.3mm | ||||||
LED indicator | Sys*1,WAN*1, LAN*1,WiFi/WPS*1 | ||||||
Wireless Standards | IEEE 802.11ac wave2/a/n 5GHz IEEE 802.11b/g/n 2.4GHz | ||||||
Data Rate | 5GHz: Up to 1733Mbps 2.4GHz: Up to 300Mbps | ||||||
Frequency | Simultaneous dual band 2.4 & 5GHz | ||||||
Transmit Power | CE: <20dBm(2.4G) <23dBm(5G) | ||||||
Basic Features | SSID Broadcast: Enable/Disable Transmission Power: high, medium, low Beamforming MU-MIMO | ||||||
Wireless Security | WPA-PSK/WPA2-PSK, WPA/WPA2 Wireless Security: Enable/Disable WPS(WiFi Protected Set-up) fast encryption | ||||||
Internet Connection Type | PPPoE, Dynamic IP, Static IP PPPoE(Russia), PPTP(Russia), L2TP(Russia) | ||||||
Operating Mode | Wireless Router Mode Universal Repeater Mode WISP Mode | ||||||
DHCP Server | DHCP Server DHCP Client List DHCP Reservation | ||||||
Virtual Server | Port Forwarding DMZ Host UPnP | ||||||
Security | Client Filter Parental Control(support black list and white list) Remote Web Management | ||||||
Firewall | Forbid UDP flood attack Forbid TCP flood attack Forbid flood attack Forbid WAN PING from internet | ||||||
DDNS | Support DynDNS, Oray.com, 88ip | ||||||
VPN | IPsec pass through PPTP pass through L2TP pass through PPTP server PPTP client L2TP client | ||||||
Special Features | Smart Traffic Prioritisation PPPoE Username/password Clone Smart WiFi Schedule Smart Power Saving Smart LED on/off Tenda Cloud Tenda App | ||||||
Other | Bandwidth Control Guest Network IPTV MAC Clone Static Routing System Log Backup & Restore configurations Firmware upgrade online Firmware upgradeable via browser Supports IPv6 Alexa | ||||||
Temperature | Operating Temperature: 0℃ ~ 40℃ Storage Temperature: -40℃ ~ 70℃. | ||||||
Humidity | Operating Humidity:10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90%RH non-condensing. | ||||||
Default Settings | Default Access: tendawifi.com | ||||||
Certification | CE/FCC/RoHS | ||||||

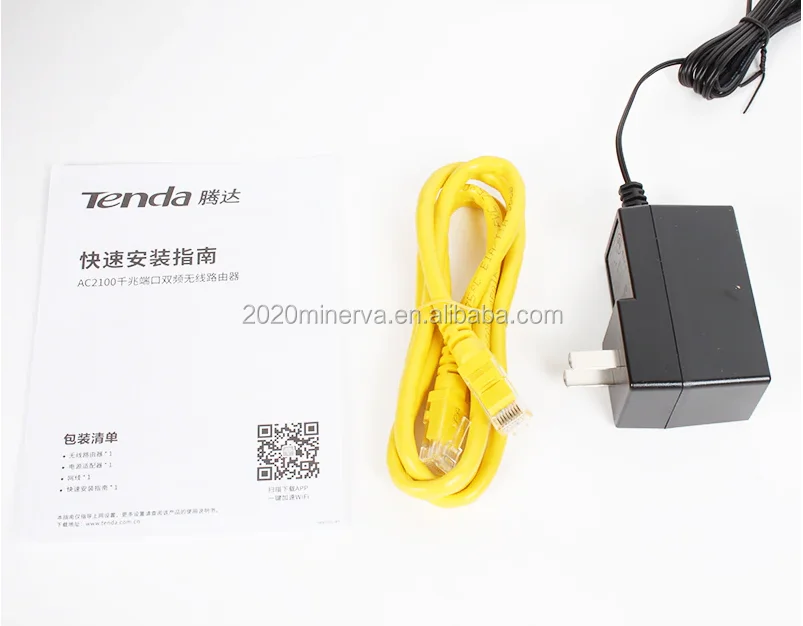

Package Content | Wireles Router*1 Power Adapter *1 Install Guide*1 Ethernet Cable*1 | ||||||
