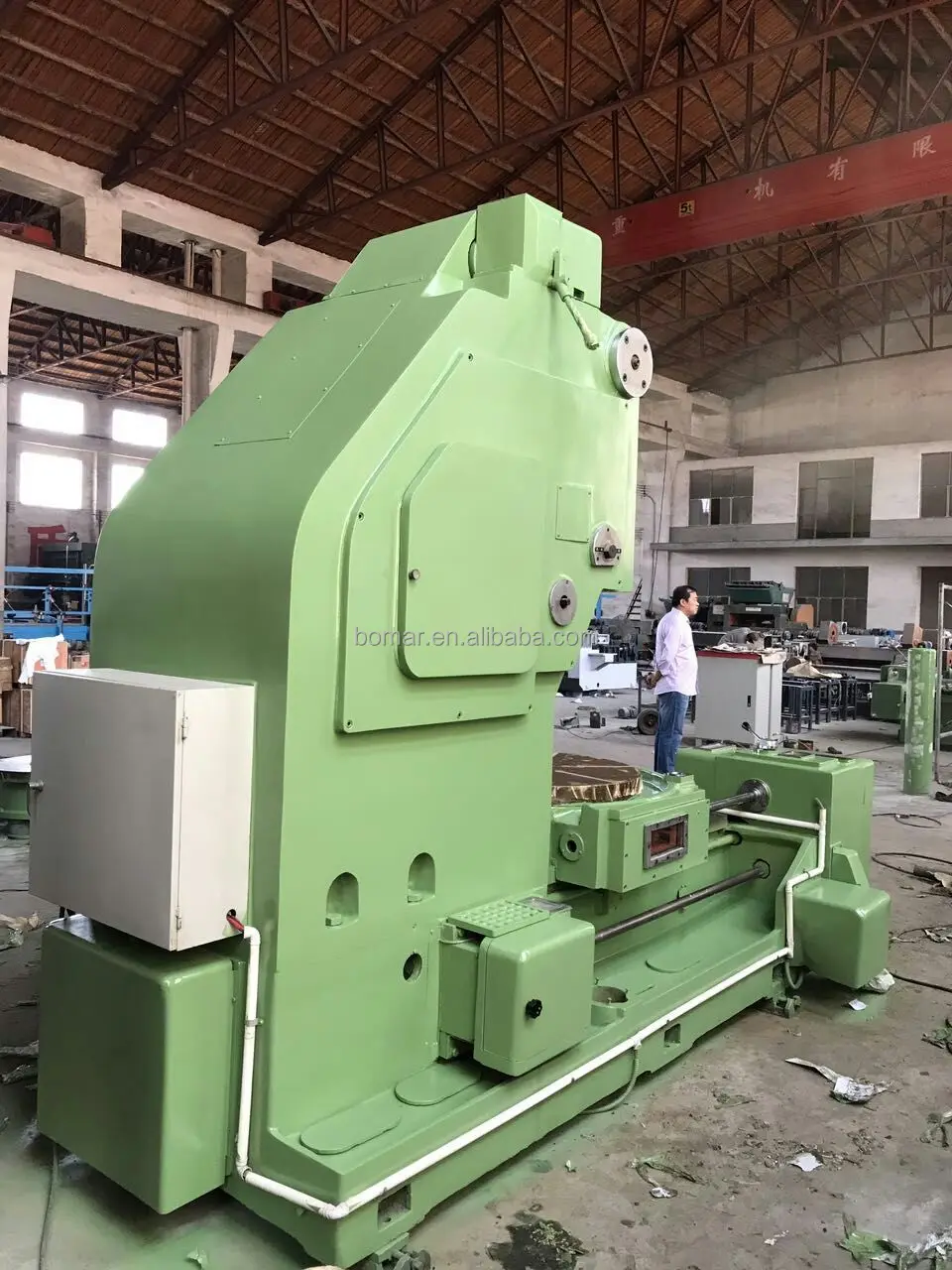

Формирователь передач машина Y32A

Working Scope

Main Specifications

Max Work-piece

Diameter

Outer Gear

mm

320

Inner Gear

400

Max Mould

mm

6

Max Gear Width

mm

70

Max Gear Numbers

10-200

Max Gear Length

mm

500

Maximum helix angle of helical gear

0°

40°

Main Axle

Reciprocating stroke per minute of gear shaper cutter spindle

Low Speed

160,190,230,280,335,400

High Speed

320,380,460,560,670,800

Circumferential feed rate per minute (calculated diameter of infinitely variable speed tool ∅100 mm)

mm

20-460

Radial feed per minute (step-less speed change)

mm

1.2-23

Maximum rapid movement of worktable

mm

160

Tool yield of the highest position of the pinion cutter spindle

mm

>0.5

Offset of vertical drill with oblique tool passing

mm

±20

Maximum stroke length of pinion cutter spindle

mm

80

Worktable

Worktable Diameter

mm

300

Worktable Hole Diameter

mm

120

The distance from the center of worktable to the center of tool spindle

mm

0-265

The distance from the end face of the worktable to the end face of the tool spindle

mm

120-230

The distance between the back column thimble tip and the end face of the worktable

mm

140-540

The adjustment handle of the worktable transfers momentum every time

mm

2

Motor

Main Motor Power

Kw

rpm

3.5/5

710/1450

Circular feed DC motor Power

Kw

rpm

2.2

1500

Hydraulic Motor Power

Kw

rpm

1.5

1500

Chip conveyor motor Power

Kw

rpm

0.37

1000

Cooling Pump Power

Kw

rpm

0.12

2800

Weight or Machine

kg

3200

Dimension of Machine

mm

2370*1670*2440
