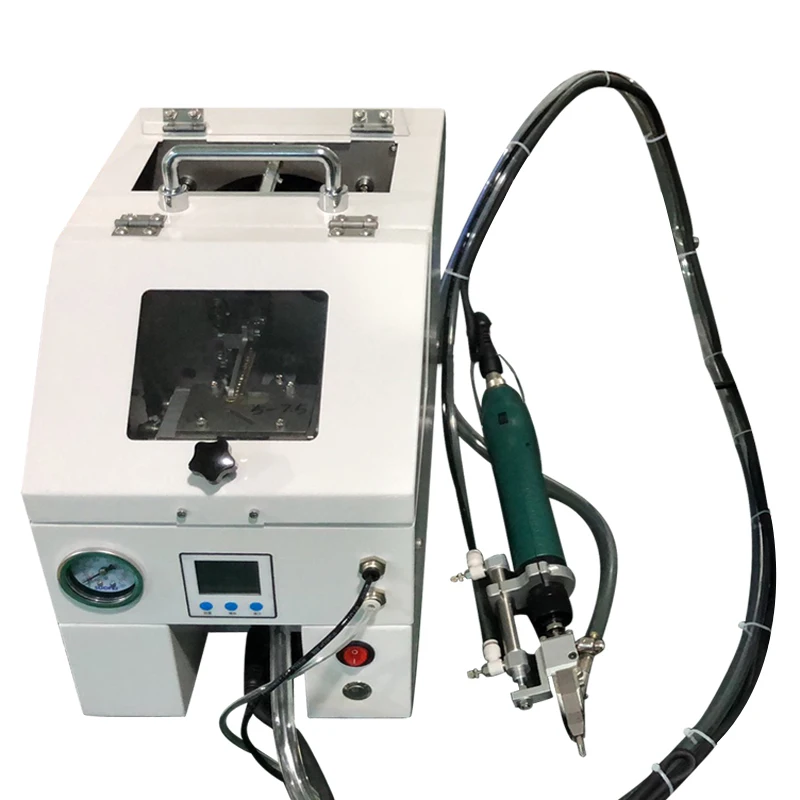

Blowing Type High Quality Handheld Automatic Screw Tightening Machine with Screw Feeder System
- Category: Other Machinery & Industrial Equipment >>>
- Supplier: Huizhou Shengyang Industrial Co. Ltd.
Share on (1700007218031):
Product Overview
Description
Blowing Type High Quality Handheld Automatic Screw Tightening Machine with Screw Feeder System Suitable for Toy Factory
| Model | Hand-held screw machine |
| Weight | About 10kg |
| Power | 30W |
| Delivery Distance | 1-4 meters |
| Feeding Capacity | 3000PCS standard screws |
| Main Screw Hole | Counter bore |
| Working Pressure | 4-6KGF/Cm2 |
| Power Supply | 220V,50/60HZ |
| Use Environment | -20-40ºC |
| Batch Selection | Sleeve type,bracket type(According to product specification) |
| Screwdriver Type | SUDONG OR KILEWS(According to customer requirements) |
| Screw Specifications | Slot,cross,plum,hexagon,triangle,I-shaped |

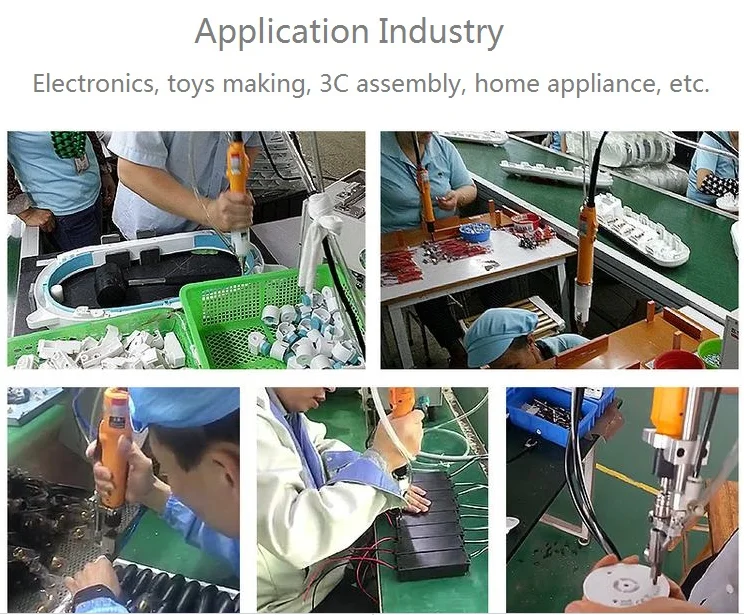

| Applicable Industry | Versatility,basically covers all products |
| Equipment Compatible | Tolerance 0.5mm, Length 5mm |
| Dimensions | 360*250*195mm |
| Packing Details | Wooden box,600*580*450mm,30kg |
Product Introduction:

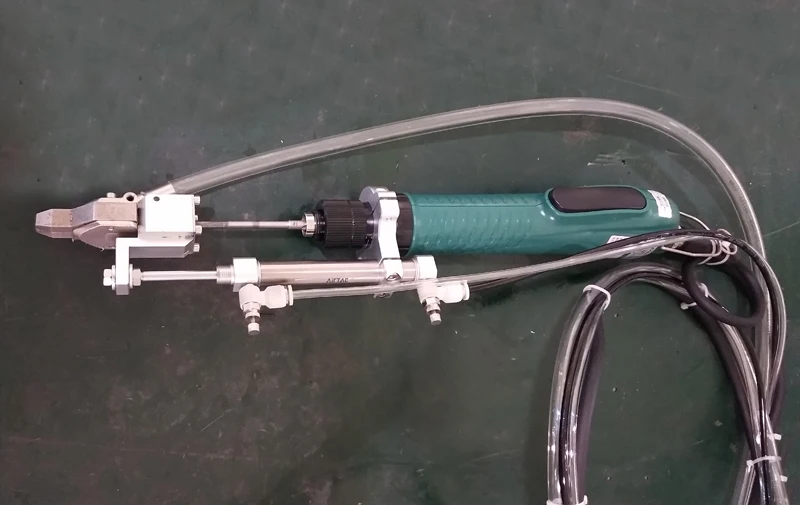

This push-pull hand-held automatic screwdriver machine is widely applicable, easy to operate, the locking efficiency can reach 0.8 seconds 1 screw! It sends the screw to the batch head by blowing air. Simply press the screwdriver gently down to the position to be locked to complete the locking action.At the same time, the operator can free hand to hold the product, the efficiency can be doubled, save the labor cost.
Function & Characteristic

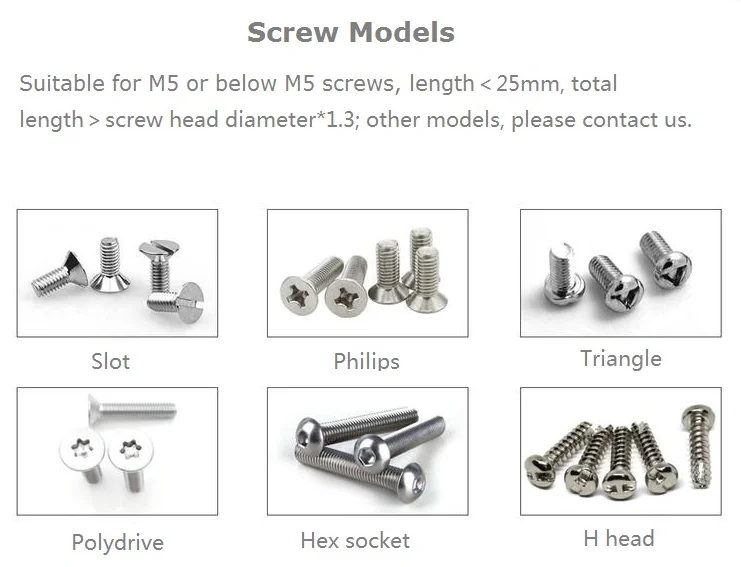

1. Screw range:M2-M5
2. Screw head pattern for use, such as:slotted,phillips,triangle,torx,hexagon,H head,etc.
3. The use of screw thread form: machine teeth, tapping teeth, drilling teeth, etc.
4. Screw materials such as iron,copper,stainless steel,etc.
5. Material of screw products,such as plastic,iron,aluminum,etc.
6. High efficiency,cost saving:the locking rate can reach 1 screw for 0.5 seconds,
which is 1 times higher than the traditional tightening efficiency. Can save 1 man
laborer.
7. More relaxed, more quality assurance:the left hand does not need to take the screw,
can be used to hold the product,and can maintain vertical lock pay, to ensure the
quality of the lock.
8. Cleaner,more environmentally friendly:no longer in direct contact with the screws,
avoid contact with the hands causing secondary pollution and rust.

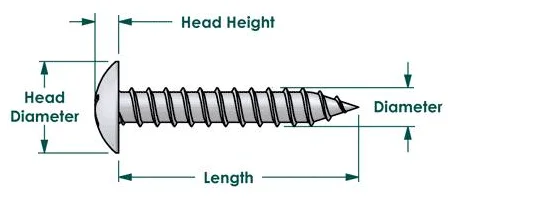

Please kindly show your screw drawing as below to confirm the machine model,appreciate it!

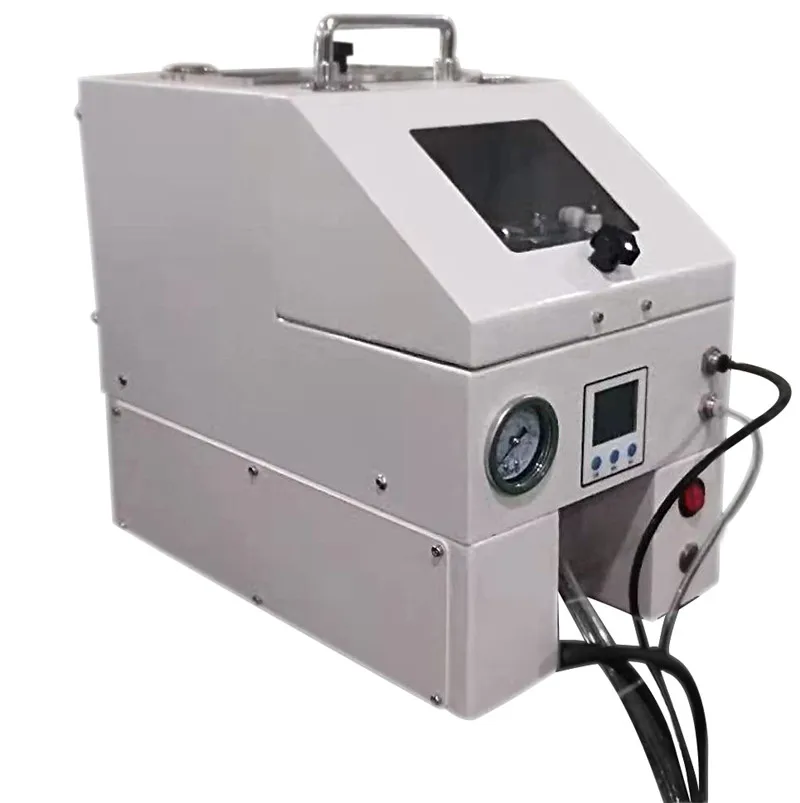

Visual window to observe the screw discharge at any time.

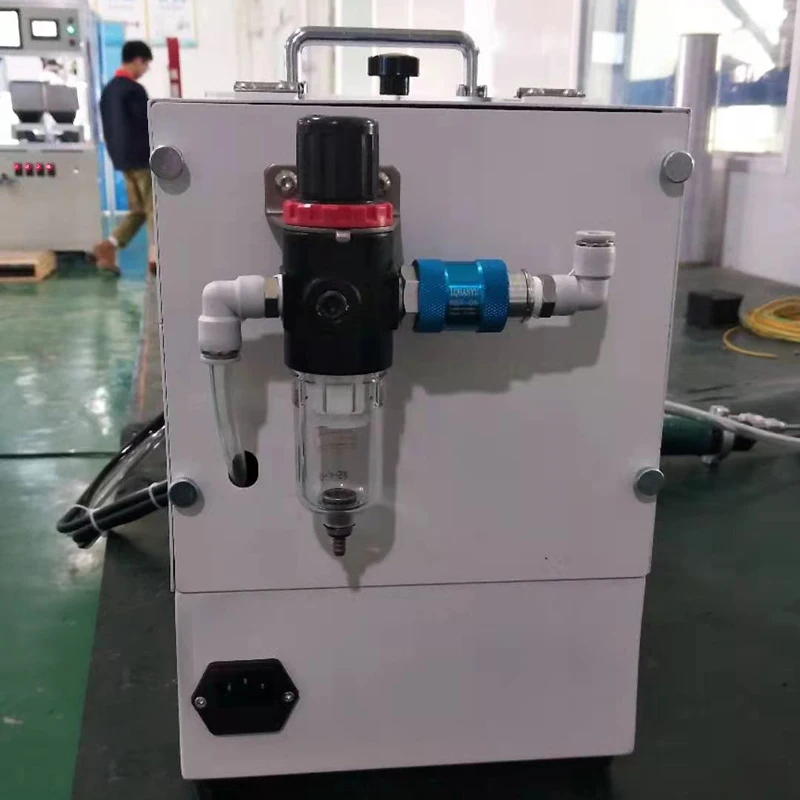

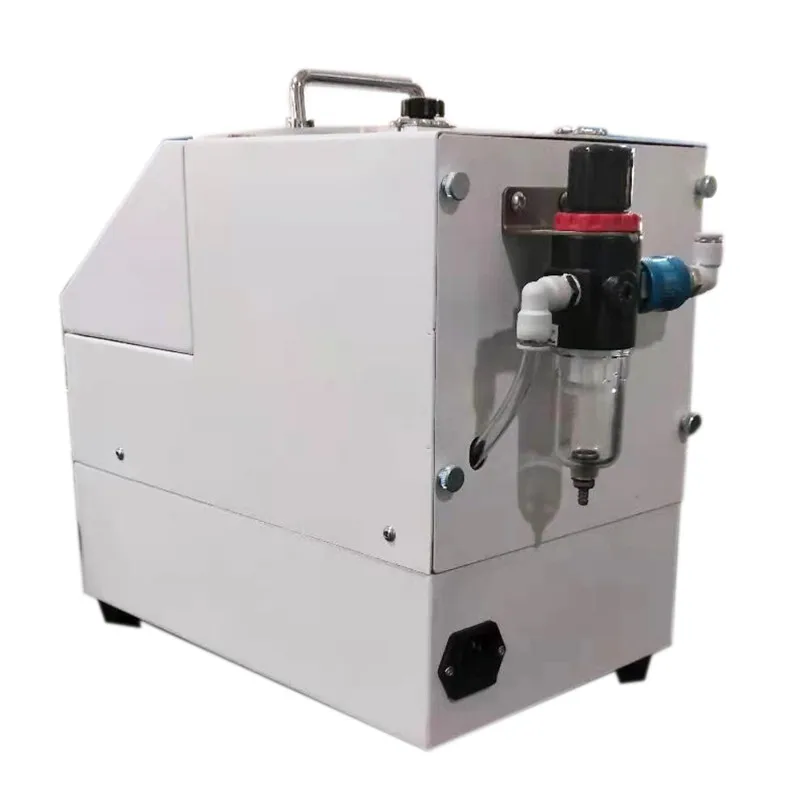

Pneumatic mechanism provide stable airflow and quick locking screw

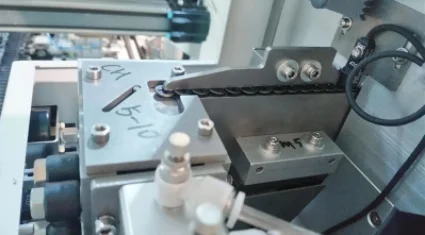

After the screw is locked, the machine will automatically send the next screw to the batch mouth
1. What’s the minimum order quantity(MOQ)?
- Minimum 1 machine, small batch and large volumes are acceptable.
2. When can I get the quotation?
- We usually respond within 24 hours on working days receiving your messages. Then we will discuss the screw models and materials. After receiving samples for testing and evaluating, we will forward to you with quotation within one week.
3. Which is the safe payment method to trade?
- We accept T/T, LC, Paypal, Trade Assurance and Secure payment on Alibaba platform.
4. How long will it take to produce the machine?
- For standard machine, it will be 15 days for manufacturing, 30 days in hot season.
- For non-standard machine, it will be negotiated customized according to your requirements.
5. What’s the shipping method?
- We are able to ship worldwide where Ocean shipping or Air shipping can reach.
- Machines will be packed safely and protectively to ensure you will receive a brand new one.
6. How do you ensure quality control?
- We produce standard screw bolt drivers and feeding systems accodting to samples. So it's necessary to provide samples for us to test. We have experienced technical team to test and adjust the machines that fit for your locking task.
7. What's the warranty and after-sales service?
- We provide a period of A YEAR after the date of the original purchase.
