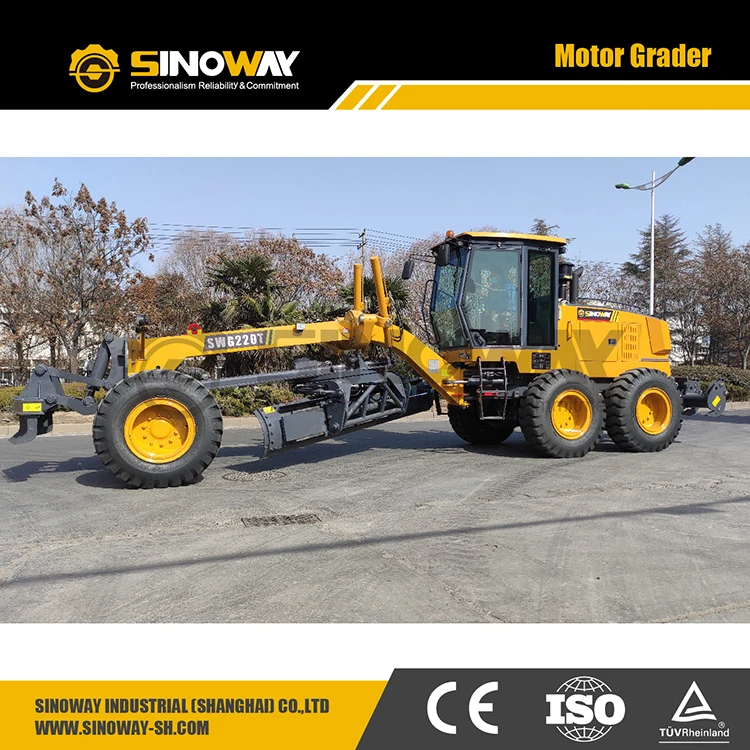

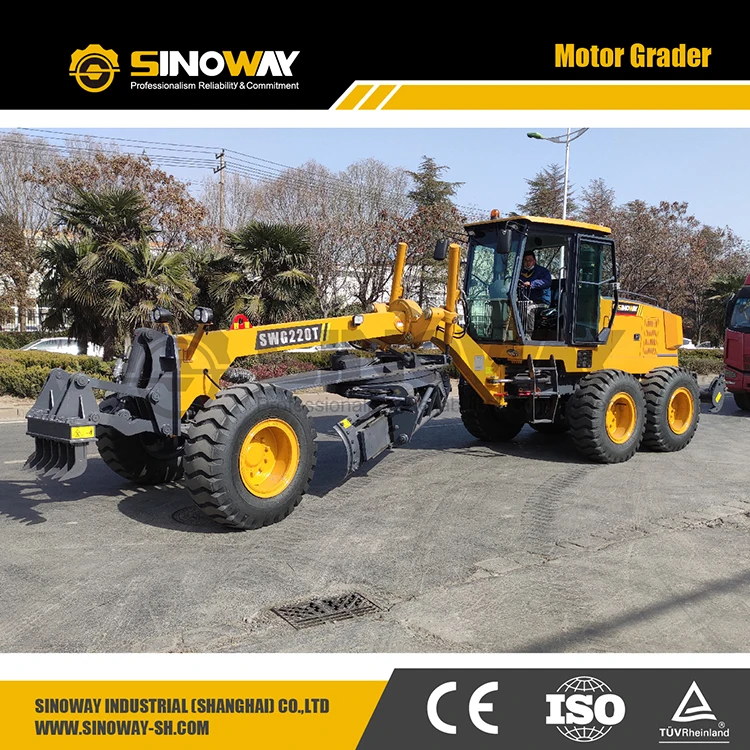

New Self propelled articulated motor grader with front dozer and rear ripper
- Category: >>>
- Supplier: Sinoway Industrial (Shanghai) Co. Ltd.
Share on (1700010523189):
Product Overview
Description
Product Description
* The 6-speed electronically controlled shift hydraulic transmission with reasonable speed ratio distribution to ensure that the whole machine has three working gears at choice to ensure operating reliability and flexibility.
* The box-type structure welded from integral plates features high strength.
* The extern ring gear adopted features high transmitted torque, larger blade cutting angle, and better material handling capability and is especially useful while handling dry materials and clays.
* Featuring simple operations and high impact resistance against external forces, it's applicable for the working conditions with high operating volume and severe operating environment.
* The international advanced hydraulic brake control technologies and international renowned hydraulic units are adopted to ensure braking safety and reliability.
* The full-hydraulic front wheel steering equipped features small turning radius and high mobility and flexibility.

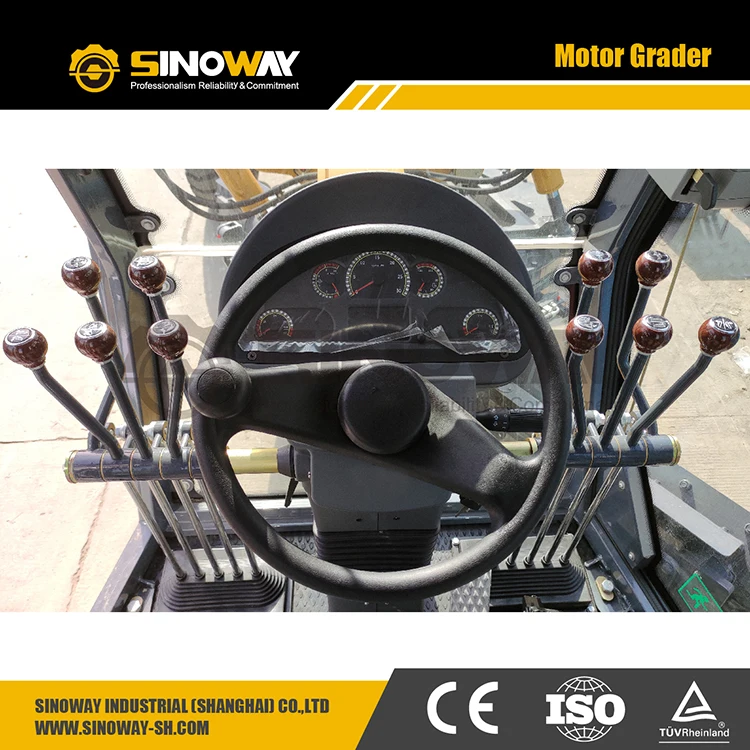

* The high-grade full-sealed luxury cab with total visual field and the high-efficiency shock-absorbing seat maximize the operation comfort.
* The cab and the main frame are connected by shock absorber to ensure the operating safety and reliability.
* The standard high capacity heating and air conditioning system and the double-layer sealed side doors achieve <84dB noise and effectively reduce the labor strength of the operator.
* The maintenance-free high performance battery is equipped.
* The steel engine hood with four doors eases the maintenance and heat dissipation of the engine.
* The hydraulic oil tank adopts the overhead dismountable filter element, featuring convenient repairs and maintenances.
* The automatic leveling system can be additionally installed.
* The special drive tires and the conventional tires are at your choice for the motor grader.
* The box-type structure welded from integral plates features high strength.
* The extern ring gear adopted features high transmitted torque, larger blade cutting angle, and better material handling capability and is especially useful while handling dry materials and clays.
* Featuring simple operations and high impact resistance against external forces, it's applicable for the working conditions with high operating volume and severe operating environment.
* The international advanced hydraulic brake control technologies and international renowned hydraulic units are adopted to ensure braking safety and reliability.
* The full-hydraulic front wheel steering equipped features small turning radius and high mobility and flexibility.
* The high-grade full-sealed luxury cab with total visual field and the high-efficiency shock-absorbing seat maximize the operation comfort.
* The cab and the main frame are connected by shock absorber to ensure the operating safety and reliability.
* The standard high capacity heating and air conditioning system and the double-layer sealed side doors achieve <84dB noise and effectively reduce the labor strength of the operator.
* The maintenance-free high performance battery is equipped.
* The steel engine hood with four doors eases the maintenance and heat dissipation of the engine.
* The hydraulic oil tank adopts the overhead dismountable filter element, featuring convenient repairs and maintenances.
* The automatic leveling system can be additionally installed.
* The special drive tires and the conventional tires are at your choice for the motor grader.
Product Show
Specification
Engine | |
Model | Cummins 6CTA8.3 |
Type | Six-cylinder,water-cooled,turbocharged, aftercooled, mechanical injection |
Rated power | 169KW |
Rated speed | 2200rpm |
Transmission System | |
Torque conveter type | 3 elements, single stage |
Torque ratio | 1.5~3 |
Cooling type | Oil cooled, pressure circulation |
Gearbox type | Power shift |
Gear shifts(Forward/Reverse)Travelling speed(km/h) | F6/R3 |
Forward/Reverse I | 5.74/5.74 |
Forward/Reverse II | 8.73/13.02 |
Forward/Reverse III | 13.02/26.98 |
Forward IV | 17.49 |
Forward V | 26.98 |
Forward VI | 38.98 |
Steering System | |
Front wheel steering angle | 45º(L/R) |
Articulated steering angle | 25º(L/R) |
Drive type | Dual action cylinder |
Axle | |
Drive type | Four wheel drive(6×4) |
Front axle ground clearance | 630mm |
Front wheel lean | 17º(L/R) |
Oscillation | ±15º |
Drive axle | Three stages with No-SPIN differential |
Working Equipment | |
Control system | Hydrostatic drive system |
Hydraulic pump | Gear pump |
Control valve | Two sets, five pieces per set |
Control pressure | 18MPa |
Hydraulic oil cylinder | Dual action cylinder |
Max. tractive force | 86.6KN |
Ground penetration | 500mm |
Blade width | 4270mm |
Blade cycling | 360º |
Max. bank cutting angle | 90º(L/R) |
Operating weight | 16500kg |
Braking System | |
Service brake | Hydraulic caliper disc brake actuate 4 rear wheels |
Parking brake | Hand operated hoop brake |
Dimensions | |
Overall length | 9100mm |
Overall width(wheel outside) | 2600mm |
Overall height | 3500mm |
Wheel base | 6335mm |
Front tread | 2150mm |
Rear tread | 2340mm |
Tyre size | 17.5-25 |
Service Capacities | |
Fuel tank | 228L |
Engine crank case | 23L |
Hydraulic tank | 130L |
Gear box | 21L |
Rear axle | 28L |
Balance box | 23L(each) |
Worm gear case | 2.5L |
Tandem Drive | |
Type | Swing type with roller chain transmission |
Speed ratio | 18.03 |
