Ruian Xinshun PVA/PLA Corn Starch PE Film Blowing Machine for Garbage Plastic Bags

Product Overview

Description

 Ruian Xinshun PVA/PLA Corn Starch PE Film Blowing Machine for Garbage Plastic Bags



Uses: It is suitable fbr blowing the plastic film as high density polyethylene(HDPE), low densitypolyethylene(LDPE)and linear low density polyethylene (LLDPE), which is widely used torpacking foodstuff; Garment, textile, daily-use articles and industrial products etc. It can producepearl film and degradation film via making up a prescription.

Characteristics:

1. The screw stem and cylinder are made of 38CRMOALA high quality alloy steel after fine finishing and nitridcd treatment, which has high hardness, strong resistance to corrosion, durable servivce.

2. The die head is plated with hard chrome of screw mandrel type structure w th even and smooth discharging, the blown plastic film has fine finishing; The blewer is of labyrinthstructure with even air output.

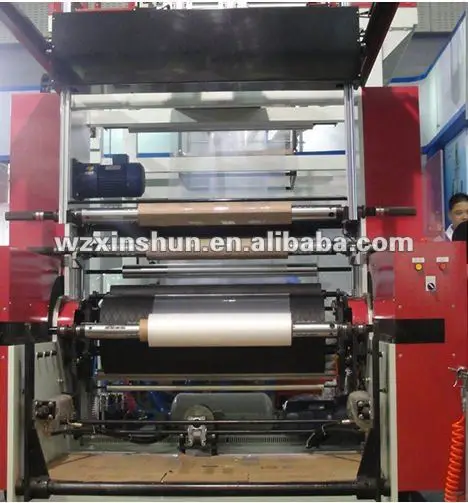

3. The coiling unit adopts pressure friction rewinding or center rewingding, which is driven by torque motor, with even and smooth rewinding and easy roll chang.





Modle type	SJ-55	SJ-60	SJ-65
Dimeter of Screw Stem	55mm	60mm	65mm
Major Diameter Ratio of Screw Stem	30: 1(L /D )	30: 1(L /D )	30: 1(L /D )
Rational Speed of Screw Stem	10-110rpm	10-110rpm	10-110rpm
Specification of Die Head	80-160mm	100-200mm	120-250mm
Thickness of Product	0.015-0.15mm	0.015-0.15mm	0.015-0.15mm
Folding Width of Product	200-800mm	300-1000mm	300-1200mm

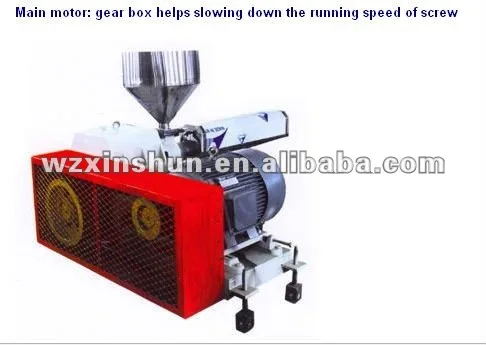

Main Moter Power	15kw	18.5kw	22kw
Heating Power	13kw	16kw	18kw
Output	24-45kg/h	30-55kg/h	35-65kg/h
Machine Weight	1.9T	2T	2.1T
Overall Dimensions (L * W * H )	6200*2300*4500mm	6300*2500*5000mm	6300*2700*5200mm





Video link:  //v.youku.com/v_show/id_XNDAwMjc5NzMy.html

OPTIONAL EQUIPMENT:
1)AUTO LOAD
2)AIR COMPRESSOR
3)SPECIAL DIE
4)DIE ROTARY DEVICE
5)BOUBLE SIDES WINDER
6) UP AND DOWN
