2018 PP PE plastic recycle machine
US $20000-$40000
Newest Technology small scale waste plastic to diesel pyrolysis plant 10t/day
- Category: Rubber Recycling Machinery >>>
- Supplier: Xinxiang Huayin Renewable Energy Equipment Co. Ltd.
Share on (1749750884):
Product Overview
Description
Newest Technology 10Ton Used Waste Plastic Recycling Device
Company Introduction
We are specialized in manufacturing waste tire/plastic/rubber recycling machine, pyrolysis machine and oil distillation machine,
oil refining machines, tire oil/plastic oil/engine oil/ship oil refining plants. We have three workshops producing every parts, professional
laboratory improving technology and demo plant which could show customers running machine. And experienced engineers guarantee
installation of our equipments and good after -sale service as our company starts from 1993.
We have three factories totally.One is demo factory for showing our running machine lines to customers;Another is our big workshop to
make the reactors;And the last one is our oldest factory which makes the auxiliary parts .And we also have our own independent laboratory.

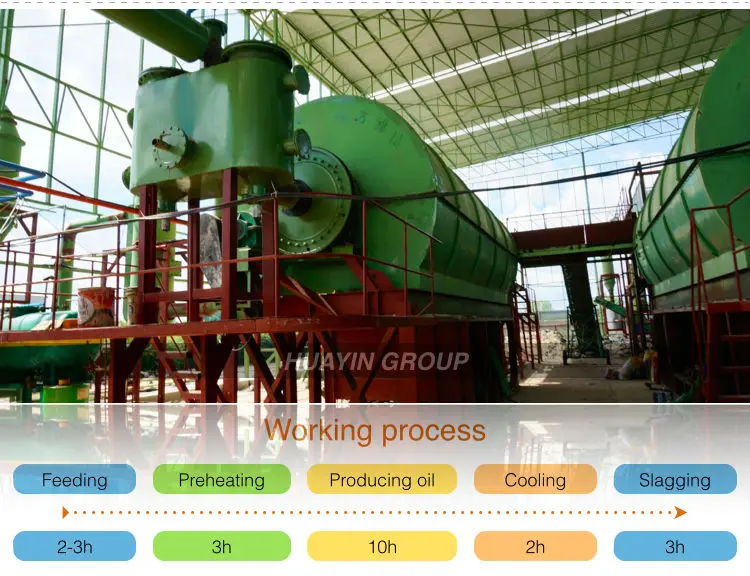

Working process
Working proccess of the waste plastic pyrolysis plant
1. Put raw materials into reactor by auto-feeder, then heat the reactor. Do not stop heating the reactor when the temperature reaches nearly 250 degree Celsius, waste tyre will be transferred to oil gas.
2. The oil gas will be cooled by condenser to liquid oil then collected by oil tank.
3. The exhaust gas which can not be cooled to liquid oil will be recycled to heat the reactor. Smoke produced during processing can achieve national emission standard through dual desulfurization and dusting removal device.
4. After oil producing finished , give 3 hours for cooling the reactor,after that carbon black will be discharged automatically.
Main Components:

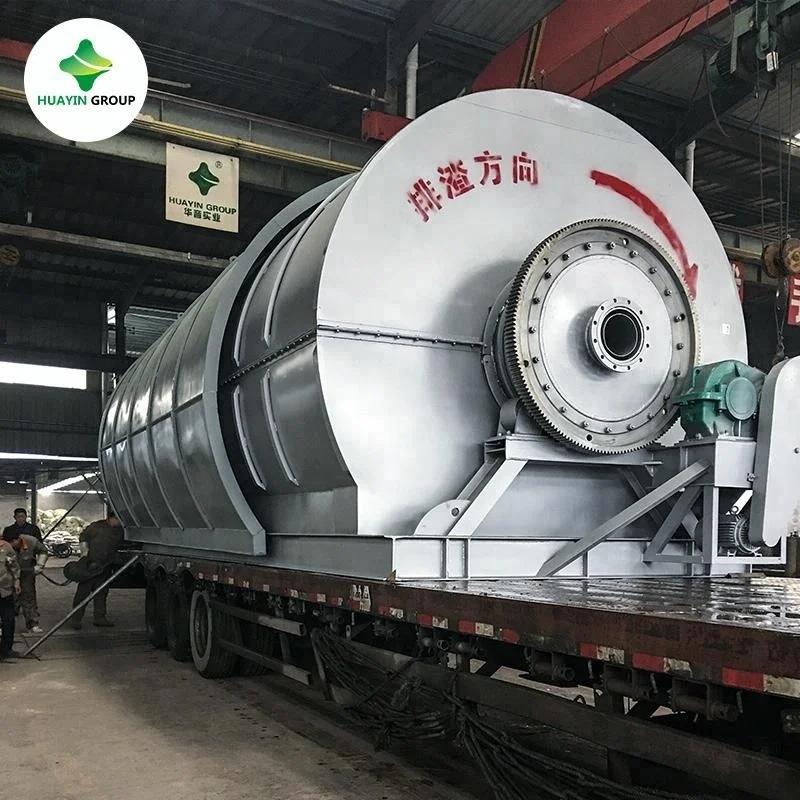

Reactor - pyrolysis for waste tire/rubber/plastic
1. catalyst chamber - reduce speed of oil gas; improve oil quality
2. oil-water separator - avoid oil gas being back to reactor for safety
3. cooling system (cooling pipe and vertical condensers / horizontal condensers) -better condensing effect, more oil you will get
4. oil tanks - collect oil
5. anti-back fire device - recycle tail gas to furnace as fuel; second water closing for safety
6. negative pressure device - guarantee working under normal pressure safety; shorten pyrolysis time; environment protection.
7. dust removal system - ensure the smoke reach national emission standards
8. auto-feeder - shorten feeding time; feed more raw material; save workers.
9. carbon black slagging device- automatically environmental protection; save time and workers.
Technical parameter of waste plastic pyrolysis machine
|
Model |
HY-05 |
HY-08 |
HY-10 |
HY-12 |
|
Raw material |
Waste rubbers/tyres/plastic |
Waste rubbers/tyres/plastic |
Waste rubbers/tyres/plastic |
Waste rubbers/tyres/plastic |
|
Daily Handling capacity |
5 tons |
8 tons |
10 tons |
12 tons |
|
Working pressure |
Normal pressure |
Normal pressure |
Normal pressure |
Normal pressure |
|
Main engine rotating speed |
0.4R /min |
0.4R /min |
0.4R /min |
0.4R /min |
|
Power |
15KWH |
15KWH |
15KWH |
15KWH |
|
Cooling Mode |
Water |
Water |
Water |
Water |
|
Floor Area |
200m2 |
250m2 |
300m2 |
300m2 |
|
Heating Mode |
Direct |
Direct |
Direct |
Direct |
|
Oil Yield |
45%-50% |
45%-50% |
45%-50% |
45%-50% |
|
Noise dB (A) |
<=85 |
<=85 |
<=85 |
<=85 |
|
Machine dimension(mm) |
D2200*L5000 |
D2200*L6600 |
D2600*L6600 |
D2800*L6600 |
|
Working Mode |
Intermittence |
Intermittence |
Intermittence |
Intermittence |

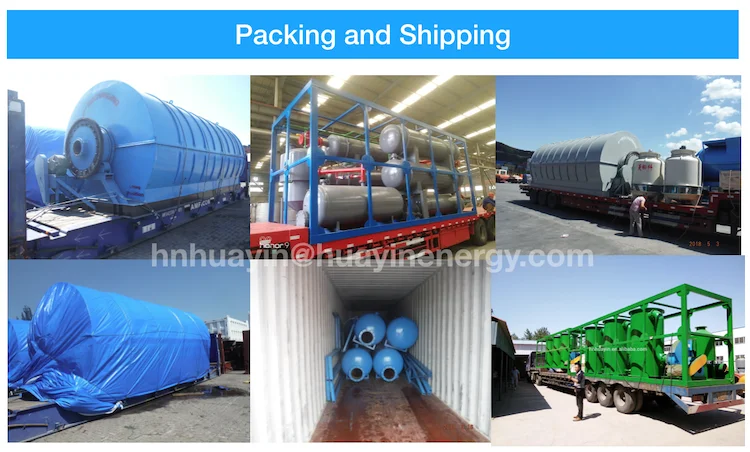

Packaging & Shipping
our machine is in QingDao Port which needs one 40HQ and one 40FR

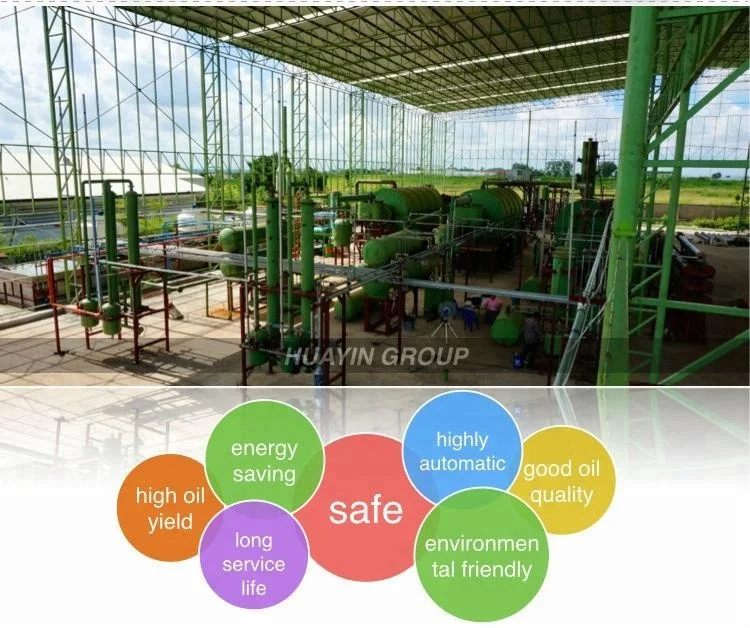

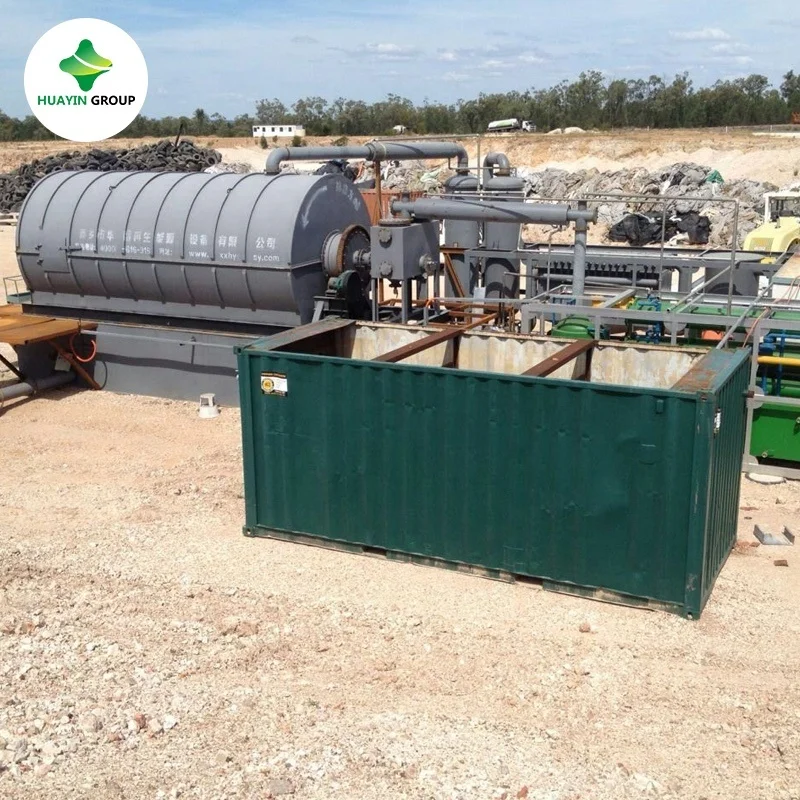

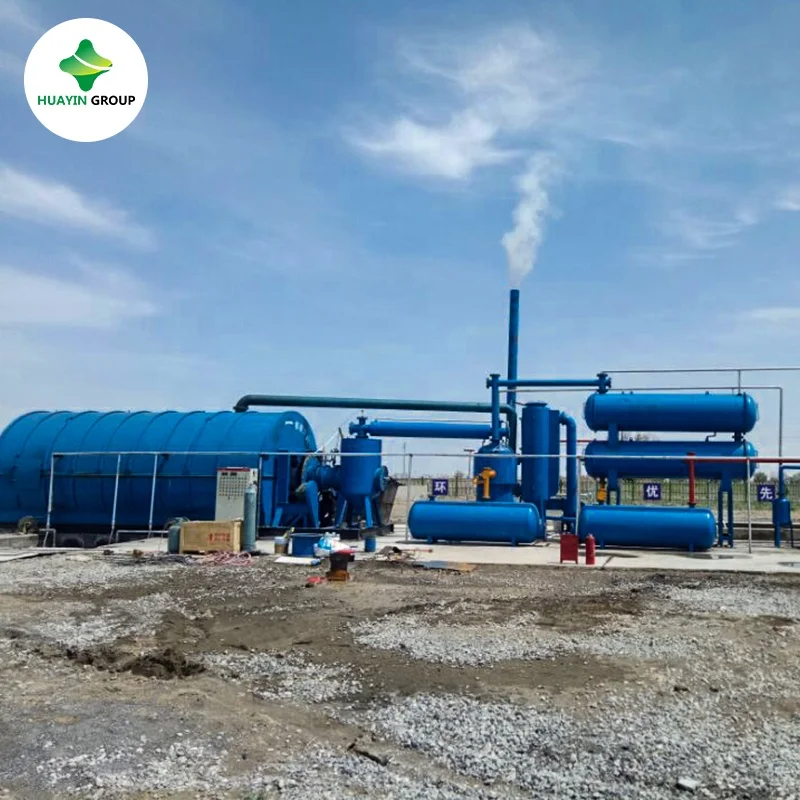

Global cases
Our machines are in different countries which are been installing.
FAQ
Q1 : IS that possible to be your agent or distributer ?
Yes , of course , we are glad to work with you to develop the market.
Feel free to contact with us to get more information .
We are the OEM manufacturer for pyrolysis and distillation machine , we are developing partners to occupy our market.
Q2. How to ensure the delivery time ?
We have modern high automation production lines , usually it is just take 5 days to finish producing one set machine.
Moreover , we have prepared machines in our workshop , urgent orders can be negotiated .
Q3. What is your payment terms ?
The Payment terms can be EXW , FOB , CIF , CFR , L/C terms etc.
Other terms can be negotiated.
Q4. Do you provide oil samples ? What is the delivery time ?
Yes , OIl samples can be provided . The delivery time shall be 5 working days.
Q5. Do you produce portable size machine ?
Yes , the smallest capacity is 10kg portable size , we can produce it according to customer requirement.
Need more information, please contact me freely.
