Vertical lift hopper bucket conveyor ne chain cement bucket elevator
- Category: Material Handling Equipment >>>
- Supplier: Henan Pingyuan Mining Machinery Co. Ltd.
Share on (1778692206):
Product Overview
Description
NE cement bucket elevator with capacity 40t/h
Product Description
Introduction
NE cement bucket elevator with capacity 40t/h’s traction configuration is plate chain , NE cement bucket elevator with capacity 40t/h is used for vertically transporting powder , granular and block material , and also high grinding material , such as coal powder , slag , limestone , cement raw material , cement clinker , cement , coal , dry clay etc , material temperature is less than 250℃. Max. Lifting height can be 40m .NE cement bucket elevator with capacity 40t/h is special for cement, so we also call it cement bucket elevator.
Advantages and Features
1. Cement bucket elevator machine adopts plate chain, gravity discharge material.
2. High strength plate chain of the superior alloy steel is wear-resisting and steady.
3. Adopt several kinds of driving groups to drive, there are maintained frame and guardrail on driven platform.
4. With guard rails to prevent chain deviation while running.
5. With holdback to prevent material return.
6. Bottom part has the self-tension device.
7. Low driving power, inflow feeding, induction unloading, high-volume hopper intensive arrangement.
8. Wide lifting range, few requirements of material type and property.
9. Good running reliability.
10. Long life span.

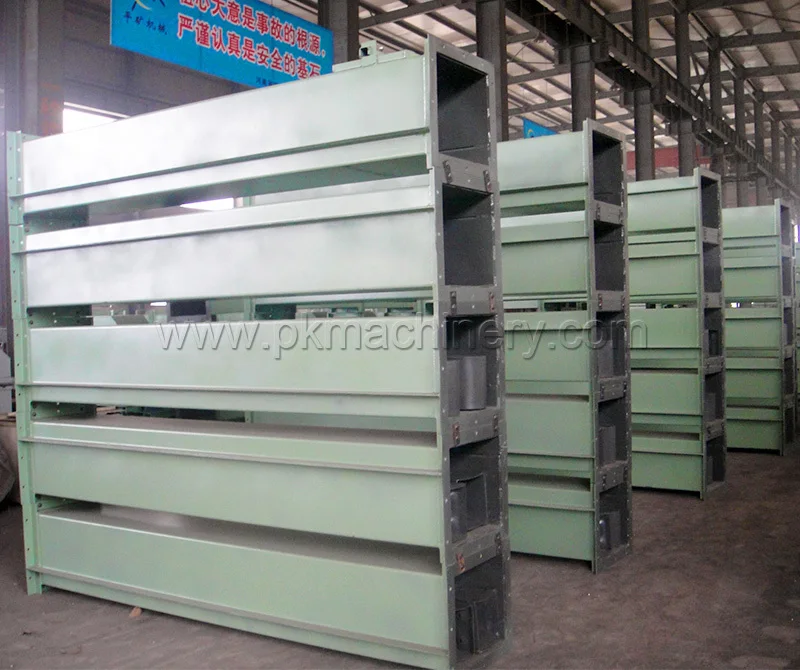

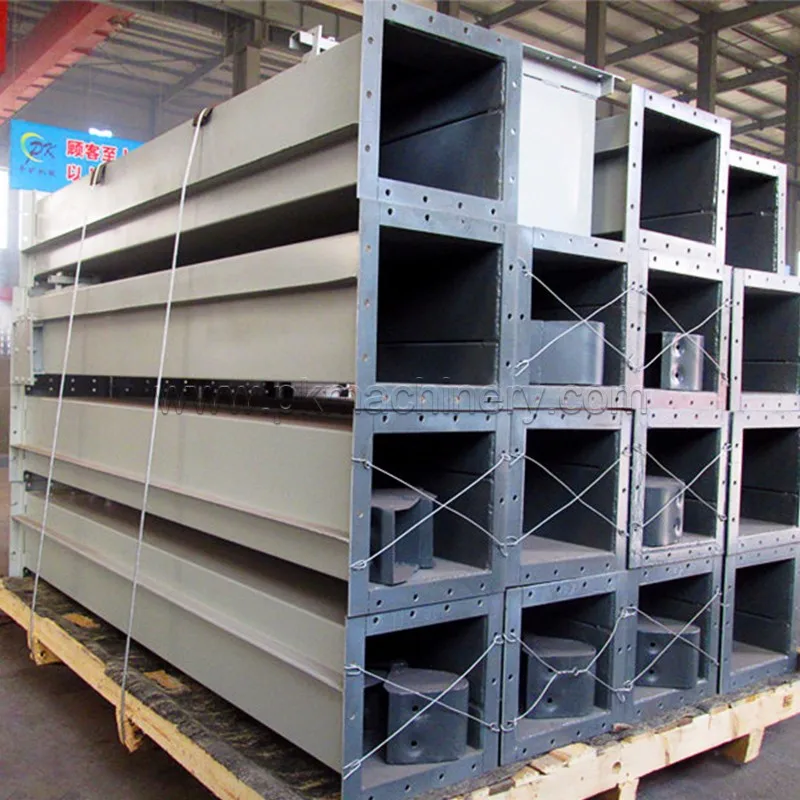

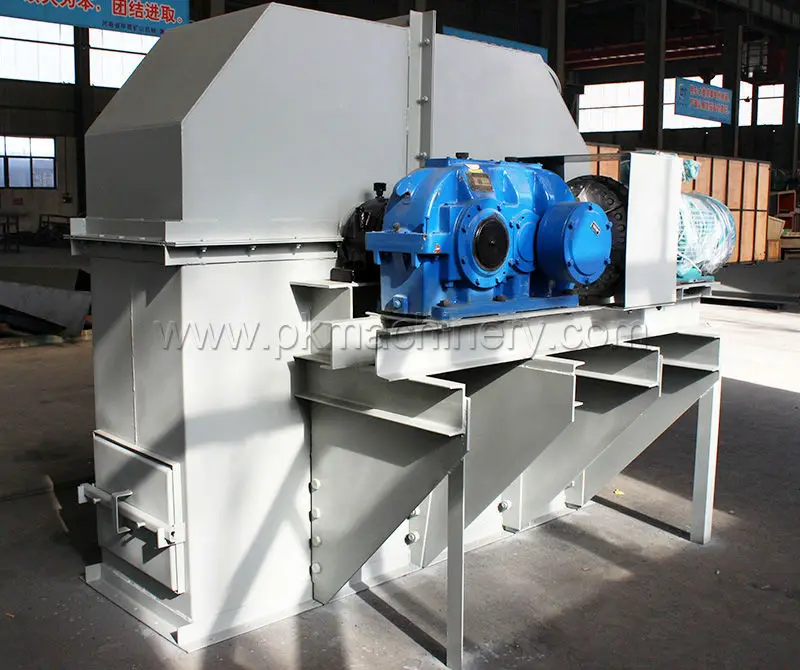

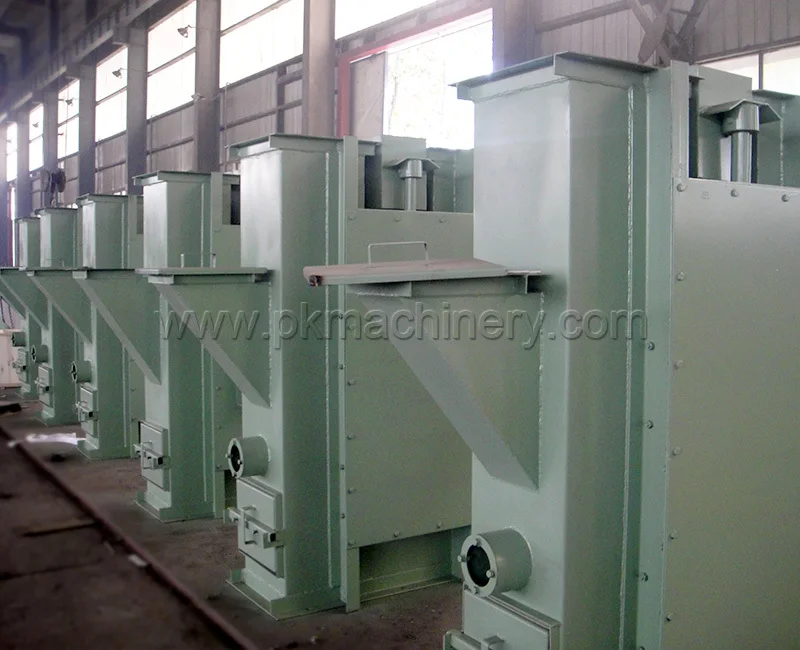

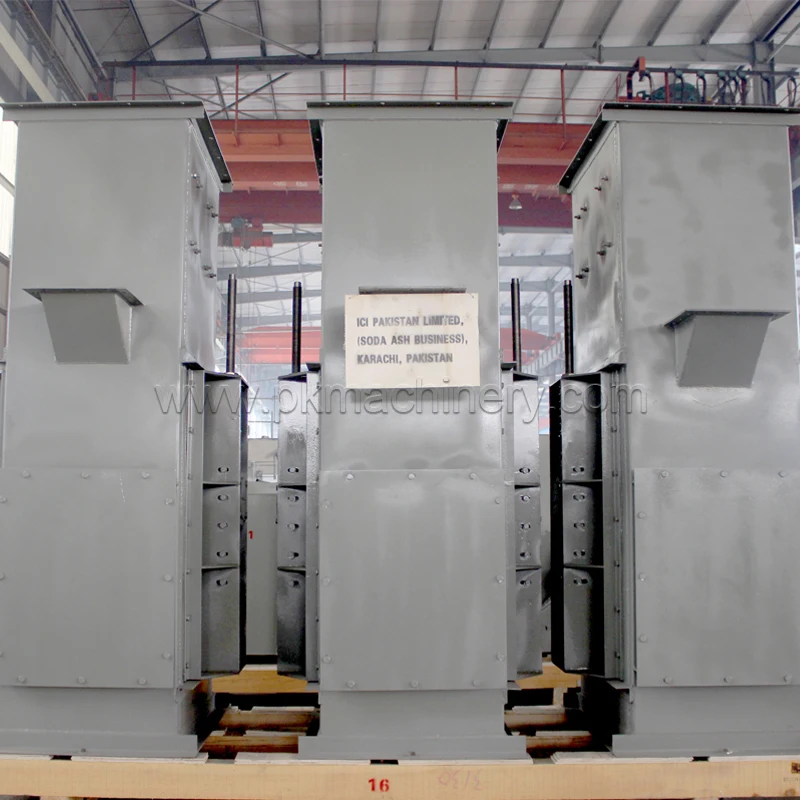

Detailed Images
Technical Parameters
Technical Parameter:
NE type Cement Bucket Elevator | |||||||||||
Model | NE15 | NE30 | NE50 | NE100 | NE150 | NE200 | NE300 | NE400 | NE500 | NE600 | NE800 |
Capacity (m3/h) | 15 | 32 | 60 | 110 | 170 | 210 | 320 | 380 | 470 | 600 | 800 |
Max. Particle Size (mm) | 40 | 55 | 60 | 70 | 90 | 100 | 125 | 130 | 140 | 150 | 165 |
Bucket Volume (L) | 2.5 | 7.8 | 15.7 | 35 | 52.2 | 84.6 | 127.5 | 182.5 | 260.9 | 330.2 | 501.8 |
Bucket Width (mm) | 250 | 300 | 300 | 400 | 600 | 600 | 600 | 700 | 700 | 700 | 800 |
Bucket Spacing (mm) | 203 | 305 | 305 | 400 | 400 | 500 | 500 | 600 | 700 | 700 | 800 |
Bucket Speed (m/s) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Max. Lifting Height (m) | 35 | 50 | 45 | 45 | 45 | 40 | 40 | 40 | 30 | 30 | 30 |
Note: All the parameters are for reference only, we can design and manufacture as per your requirements.
Packaging & Shipping
1.We can deliver NE cement bucket elevator with capacity 40t/h timely .
2.Standard sea shipping packaging.
Our Services
1.Reply your enquiry in 24working hours ,anytime you can contact us .
2.Provide good before-sale / after -sale services.
3.Provide Professional &technical support.
4.View our factory ,sincerely treat per customer's requirement .
Company Information
Henan Pingyuan Mining Machinery Co.,Ltd (PKmachinery) had earned many certificates about the whole strength and had cooperated with many group companies in the whole world. There is a systematized program in our company, every order will strictly according to the standard system to show our customer the best immediately.
PK machinery offers a full range of screening and conveying equipment,which involves vibrating screen,belt conveyor,bucket elevator,screw conveyor,scraper conveyor and related spare parts.What's more,PK Machinery is always cooperating with the world-class suppliers to ensure the product's high quality,including ABB,SEW,SIEMENS,etc.
Certifications
Certification---ISO9001:2015, BV, SGS, CE certification
