Single Component Polyurethane Pumps

Product Overview

Description

Single Component Polyurethane Pumps



Product Description

1. Item: IE-02
2. Weighing 9 KGS, portable, easy to carry & maintain, maximum output pressure up to 70MPa.
3. Injection pressure:0-70Mpa(8000-10000Lb)
4.  one ways of material feed-in: pour
5. The Drill is Matabo or Ruth. The power consumption:560W/220V

Material of application

WPU and OPU foam stop leakage agent, Epoxy resin.

Application Field

Subway Station, Tunnel, Culvert, Foundation Improvement, Soil Settlement, Reservoir, Port Project, Top Slab, Crack, Construction Join, Shrinkage Crack, Basement hairline crack etc. water stop projects.

Specification





No.	Item	Standard
1	Appearance	Aluminum structure, modular design
2	Volume	450mm length * 500mm height * 230mm width
3	Drive tool	Metabo B561 electrical drill
4	Drive power	220V/110V,50HZ,26A,560W
5	Maximum pressure	70Mpa / 10000psi / 680bar
6	Working pressure	20-40MPa / 2800-5600psi / 195-390bar
7	Injection performance	easy to inject, can use at low temperatures; single component grouting, simple construction, easy to clean up
8	Application range	subways, tunnels, reservoirs, underground structures, hair-like cracks, construction joints, expansion joints, cracks,site improvements, harbor construction, floor and other upgrading works.
9	sealing agent applied	water base polyurethane, oil base polyurethane, epoxy resin









Weight	9 kg
Maximum output pressure	70MPa
Pressure of restarting	less than 20 MPa
Safe range of high-pressure hose	less than 70 MPa
Safe range of switch valve	less than 50 MPa

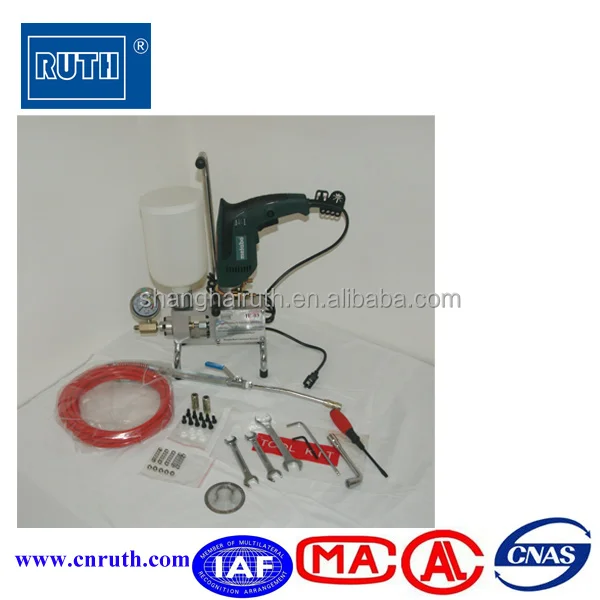

Full set of machine include:

1. The machine

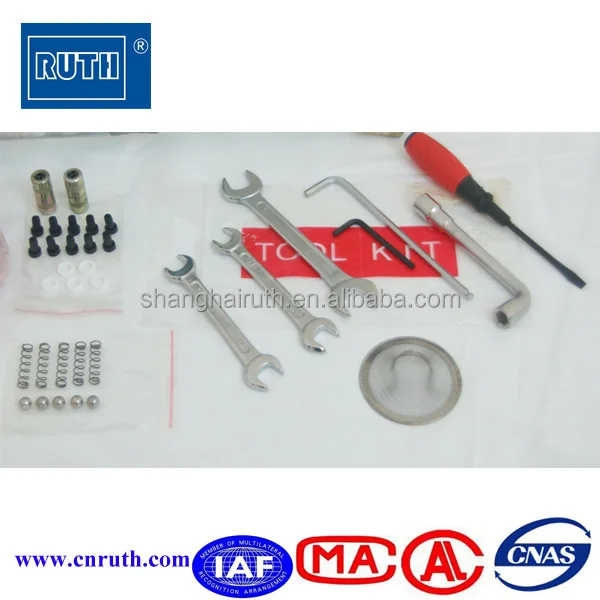

2. Accessories, including high pressure hose (4.5m), on &off valve, grease head.
3. Standby tools
