2 ядра 0,6/1kv медный кабель с нейтральным экранированный

Product Overview

Description

Features: 1. The long-term permissible operation temperature of the conductor shall not be higher than 70°C.  2. The max temperature of the conductor of cable should less then 160 °C when short circuit. (less then 5 second). 3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0°C.  4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame resistant

5. Light weight, perfect bending properties, installed and maintained easily and conveniently.  6. Rated voltage: 0.6/1kV, 3.6/6kV.  7. Number of cores: One, two, three, four, five.

8.Cable laying, bend radius≥10 times cable O. D.

Package:In coils, wooden drums, steel drums or steel-wooden drums.

We could producing according to the customers' requirements.Welcome your request for any quotations!



XLPE insulated power cable has the advantage of not only high mechanical strength , good ambient stress resistance, good  electrical properties  and anti-chemical corrosion, but also simple construction, light weight and convenient to use. It applies to electrical power transmission and distribution lines with A.C rated voltage Uo/u up to and including 25/36kv.



The main features of the flames retardant XLPE Power cable is hard to catch on fire or than the continuous burning of cables is very limited when it is on fire, It applies to the places with many cables laid highly together such as power generated station, subway, tunnel, high story building. Large sized factory and mines, oil field and coal mine.



Fireproof cable can operate nominally for some time when it is burning except that it can transmit electrical  power under nominal  condition. It is used in the places such as  nuclear plant , tunnel, high story building and other places concerning to fire security and its lifesaving.



Flame retardant cable should only follow the above standards, but also, its flame retardant performance should be devided into  3 types of A/B/C and four grades of I, II, III, IV as prescribed In GA306.1-2001standard. The A type is the best, user can choose it according to the specific need.

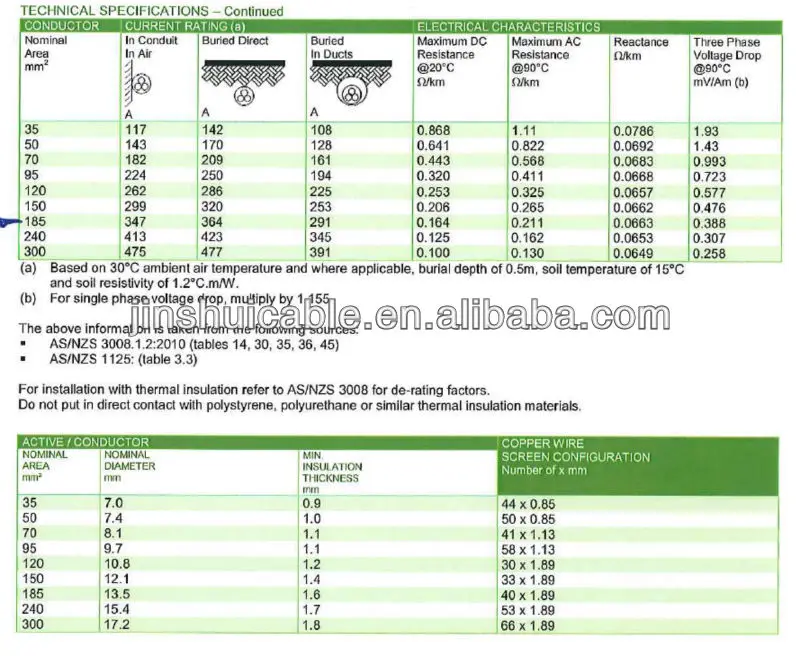

technical parameters



Specification         mm2	O.D       mm	Reference weight of cable     kg/km		Recommended Current Capacity     (A)		Max D.C resistance at20°C (Ω/km)
		copper	aluminium	copper	aluminium	copper	aluminium
3×50	86.1	8896	8025	186	150	0.387	0.641
3×70	89.9	10054	8757	240	185	0.268	0.443
3×95	93.7	11310	9546	288	220	0.193	0.320
3×120	96.9	12502	10271	323	251	0.153	0.253
3×150	100.9	14008	11217	366	281	0.124	0.206
3×185	104.6	15562	12119	415	320	0.0991	0.164
3×240	109.6	17853	13399	492	372	0.0754	0.125
3×300	114.6	20262	14696	560	428	0.0601	0.1000
