Injection Packer, Grout Injection Packer, Waterproof Material preventative waterproofing products

Advantages:

1.No time-consuming sealing by injection packers

2.Reasonable, technical method for preventives as well as additional sealing

3.Low conssumption of injection material

Example of Application:

1.Buildings in ground water area(white tank)

2.Especially in Wall/base area

3.For tube ducts(aim: sealing)

4.Waterworks and wastewater treatment plants, clear-water reservoirs, underground car parks, tunnels, etc

Reaction resins and cement suspensions:

Injection hose1:

Outside Φ 13mm and internal Φ 6mm

Reel with 120m

Customize (minimum order 10m)

Injection material:

PUR foaming resin

PUR resin

EP resin

Cement suspension

Injection hose2:

outside Φ 11mm and internal Φ 5mm

Reel with 100m

Customized (minimum order 10m)

Injection material:

PUR foaming resin

PUR resin

EP resin

Cement suspension

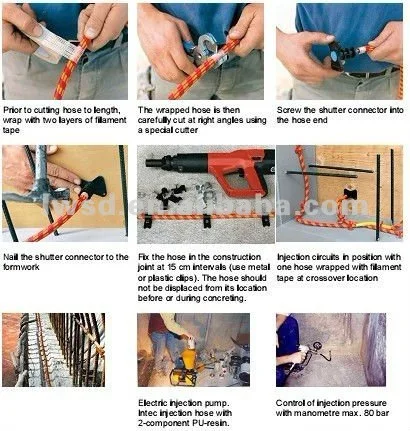

Installation:

The injection hose shall be fixed tightly at the hardened concrete building component by continuous anchoring so that it can not float on fresh concrete

The fixing of the hose can be carried out by:

1.Mounting clips

2.Fixations for injection hoses

Normally the fixations are placed with a distance between them of about 15cm. if necessary this distance must be adapted to on-site conditions

Information about Installation:

1.Length of injection hose: about 10-12m

2.Injection hose must lie flat on the concrete to avoid any reduction of cross section

3.Fix injection hose, e.g. with mounting clips

4.Distance of injection hose to the outside of wall

5.The hoses shall overlap by at least 15cm and should lie parallel at a distance of about 3-5cm

6.Enter psition of injection hoses in the drawings

About us:

Beinjig Longway Times Science & Technology Co., Ltd

Founded in 2004, Beijing Long Way Times Science & Technology Co., Ltd. has been committed to the research and development of new type environmentally friendly building materials as well as the innovation of service and construction process.

Our company is the member of Chemical Grouting Sub-Committee, Chinese Hydraulic Engineering Society, the Director Member of Waterproof Sub-Committee and China Construction Industry Association. The products developed by Langwei include AC-II liquid acrylate grouting materials (Patent No.20********2.7), MMA (Methyl Methacrylate) grouting materials, permeable crystalline waterproofing materials, polyurethane grouting materials, epoxy grouting materials and water-swelling water-proofing gel. Our products are of top quality among domestic similar products
