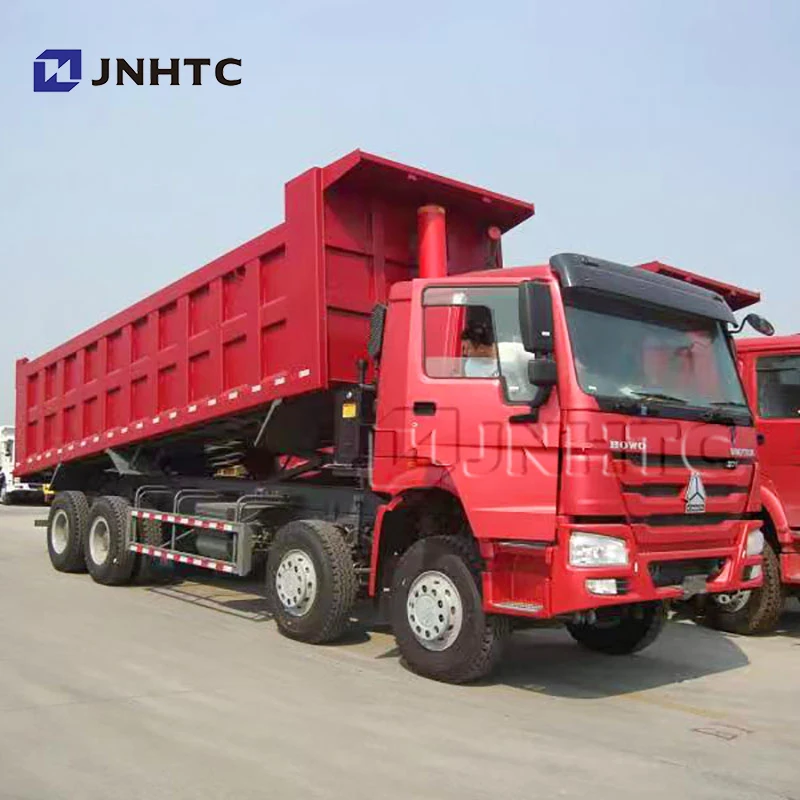

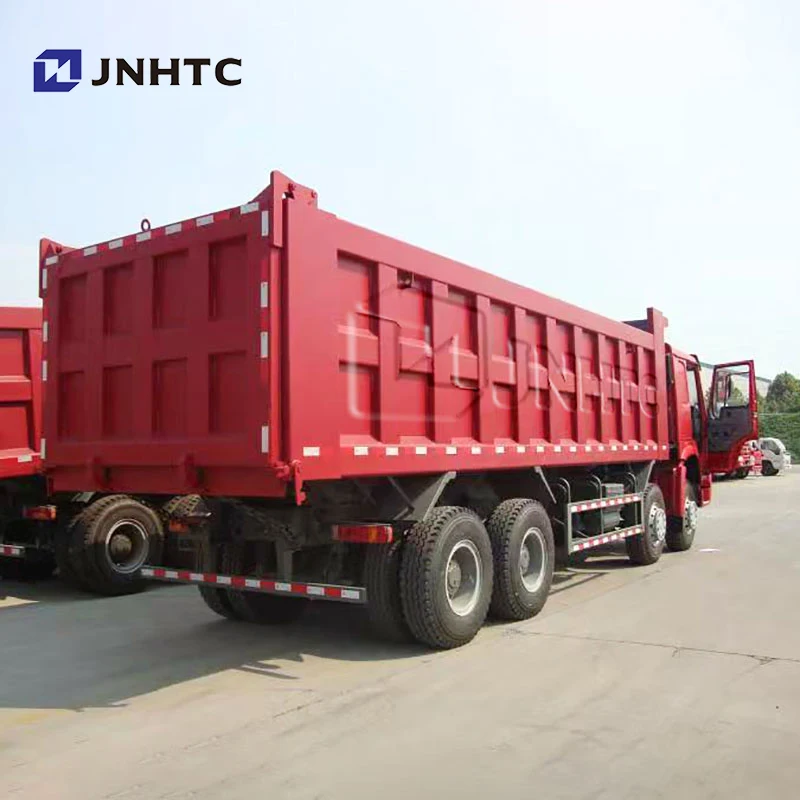

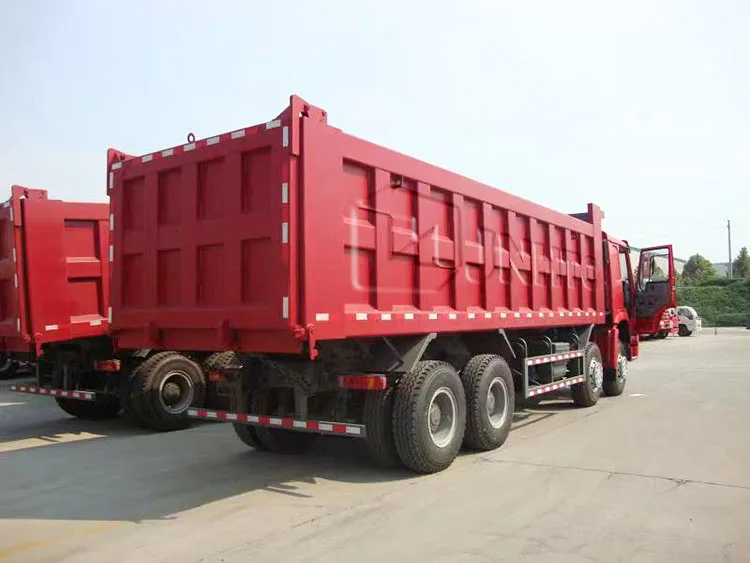

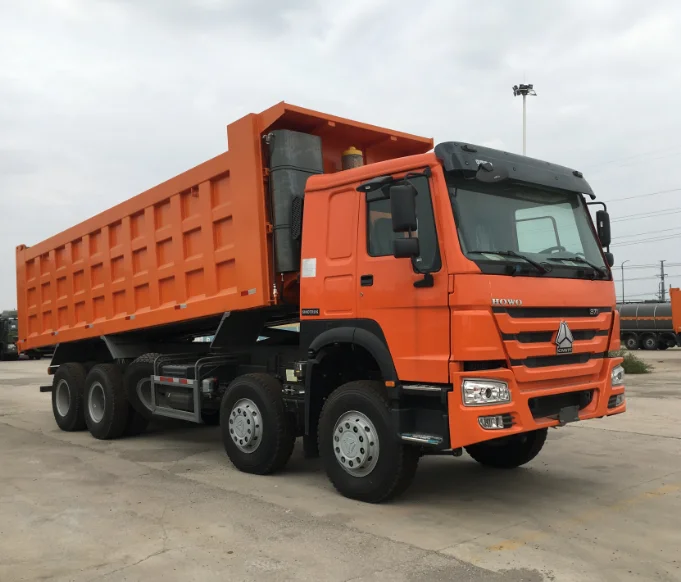

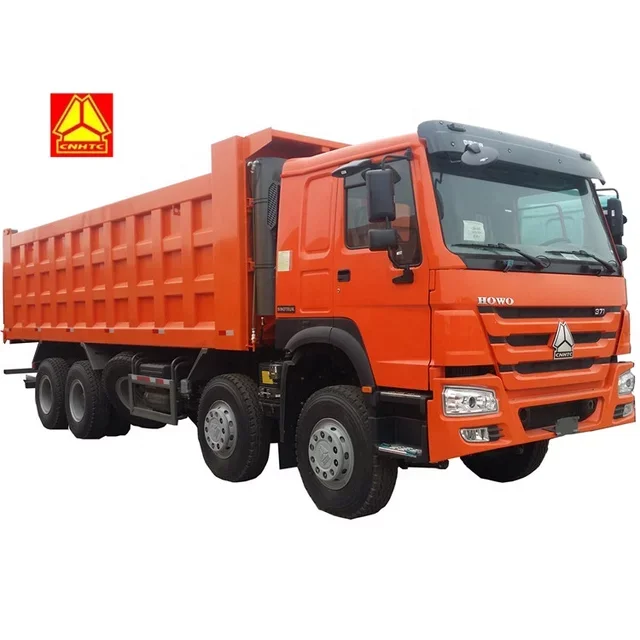

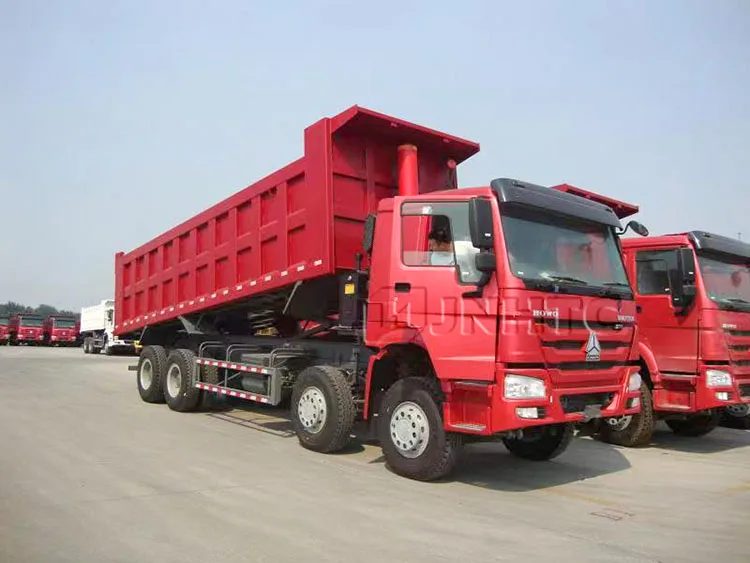

CNHTC HOWO SINOTRUK 336HP 8x4 Dump Truck/Tipper Truck/Heavy Duty Truck
- Category: Dump Trucks >>>
- Supplier: Jinan Heavy Truck Import & Export Co. Ltd.
Share on (1871404121):
Product Overview
Description
with high-level configuration and world-class technology, its performance is excellent. It’s generally used for long-haul transportation; Combined with different semitrailer, it can used to load different bulk cargo on the premise of good road condition.
HOWO Product range: Semi-trailer towing vehicle, goods vehicle, tipper, concrete mixing carrier and other special truck refitted on its chassis.
Driving type: 4×2, 6×2, 6×4, 8×4 and 10×4 etc.
Power range: 266PS - 410PS
HOWO Product range: Semi-trailer towing vehicle, goods vehicle, tipper, concrete mixing carrier and other special truck refitted on its chassis.
Driving type: 4×2, 6×2, 6×4, 8×4 and 10×4 etc.
Power range: 266PS - 410PS
Mode | ZZ3317N3567C1 | |||||
Cabin | HW76 cab.One berth original luxury cab with sleeper. | |||||
Vehicle Main Dimensions | L×W×H(mm) | 10245×2496×3450 | ||||
Wheel base(mm) | 1800+3500+1350,1800+3500+1400 | |||||
Approach/Departure angle(°) | 19/21 | |||||
Weight in KGS | Tare Weight (kg) | 1,520,015,450 | ||||
Loading Capacity (kg) | 1,567,015,420 | |||||
Axle load | 6500/7000/17500 | |||||
Max.Drinving Speed (km/h) | 75 | |||||
Engine | Brand | HOWO | ||||
Model | WD615.95E/96E | |||||
Type | 6-cylinder in-line with water cooling; | |||||
4-stroke direct injection; | ||||||
turbo-charging and inter-cooling | ||||||
Horse Power(HP) | 336/375 HP | |||||
Emission Standard | Euro II | |||||
Axle | HC16, overall cast steel axle and Han Ruisen disconnect suspension | |||||
Gearbox | HW19710 | |||||
Clutch | Reinforced diaphgragm clutch, diameter 430mm | |||||
Steering Gear | ZF8098, original made in German. Power steering, hydraulic steering with power assistance. | |||||
Fuel Tank(L) | 300 | |||||
Tire | 11.00-20,11.00R20,12.00-20 18PR,12.00R20 18PR | |||||
Brakes | Service brake: dual circuit compressed air brake | |||||
Parking brake: compressed air operating on rear wheels | ||||||
Auxillary brake: engine exhaust valve brake | ||||||
Dump Body | ||||||
Thickness | Side | 6mm in high tensile strength steel Q235A | ||||
Front | 6mm in high tensile strength steel Q235A | |||||
Bottom | 8mm in high tensile strength steel Q235A | |||||
Dump Body Size | L×W×H | 7300×2300×1100 (mm) | ||||

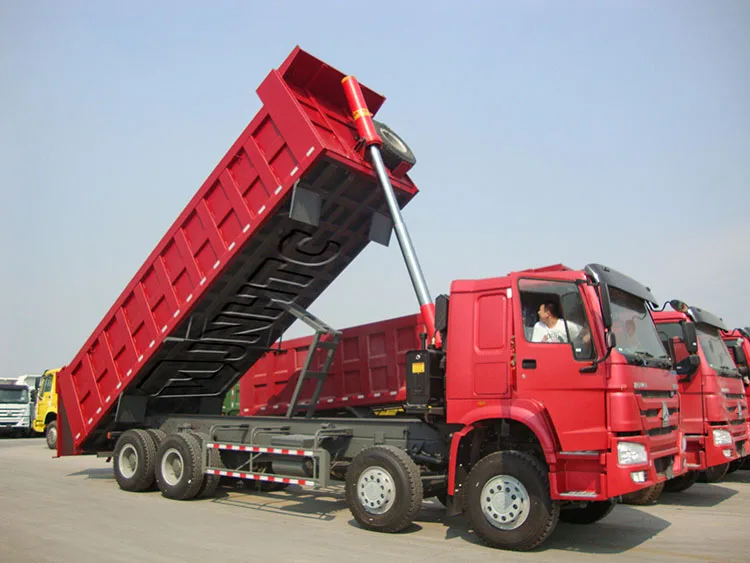

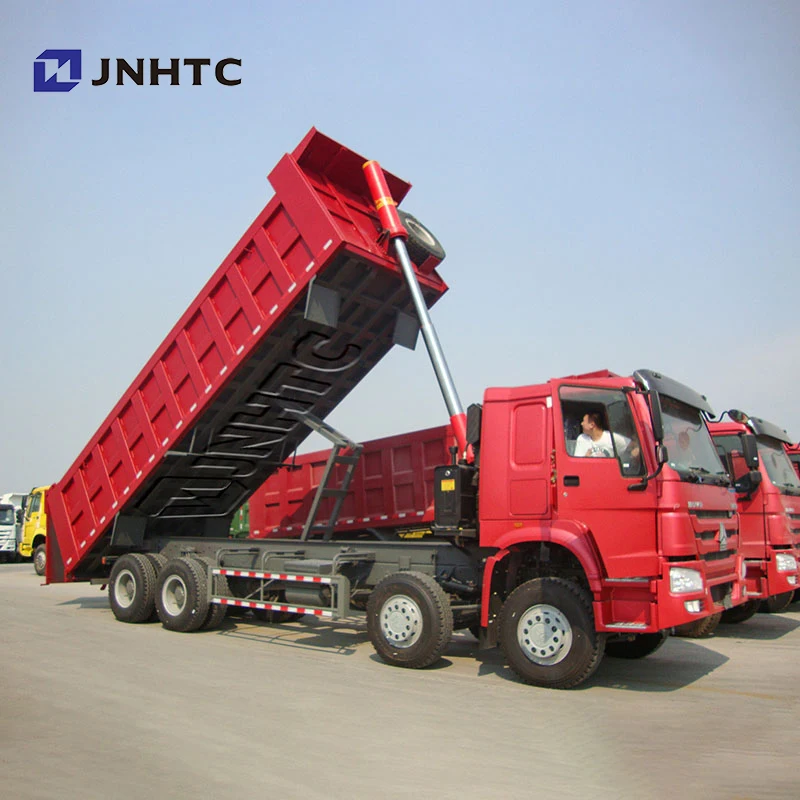

Tipping Hydraulics | Tipping Type | Front tipping type | ||||
Tipping System | Complete set of HYVA brand hydraulics system | |||||
