Cnc Pipe Bending Machine for Exhausting System in Car Wuxi Taihu Taiwan ABBA 3600 KG Taiwan Newstart Taiwan Weinview
- Category: Pipe and Tube Bending Machines >>>
- Supplier: Zhangjiagang Telhoo Machinery Manufacturer Co. Ltd.
Share on (1872858776):
Product Overview
Description
cnc pipe bending machine for exhausting system in car
Know more about us: www.telhoopipebender.com
Full automatic exhausting system Bending Machine for sale is full automatic type machine for bending three dimensional complicated workpiece, which can input YBC or XYZ into controlling system, then machine make the tube bend accordingly.
Main specification
Technical parameter
Specification/Model | DW75CNC |
Max bending diameter of pipe | 75mm |
Max bending wall thickness of pipe | 3mm |
Max bending radius | 300mm |
Min bending radius | 100mm |
Max bending angle | 190° |
Max feeding length | 2800mm |
feeding method | direct feeding / clamping feeding |
Bending speed | Max 85°/s |
Rotary speed | Max 200°/s |
Feeding speed | Max 1000mm/s |
Bending accuracy | ±0.1° |
Rotary accuracy | ±0.1° |
Feeding accuracy | ±0.1mm |

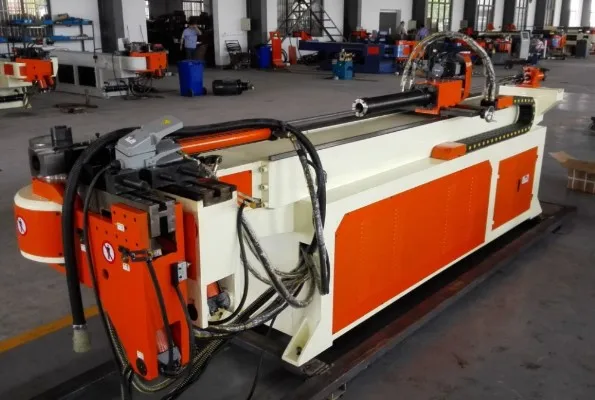

Machine picture
Working video
