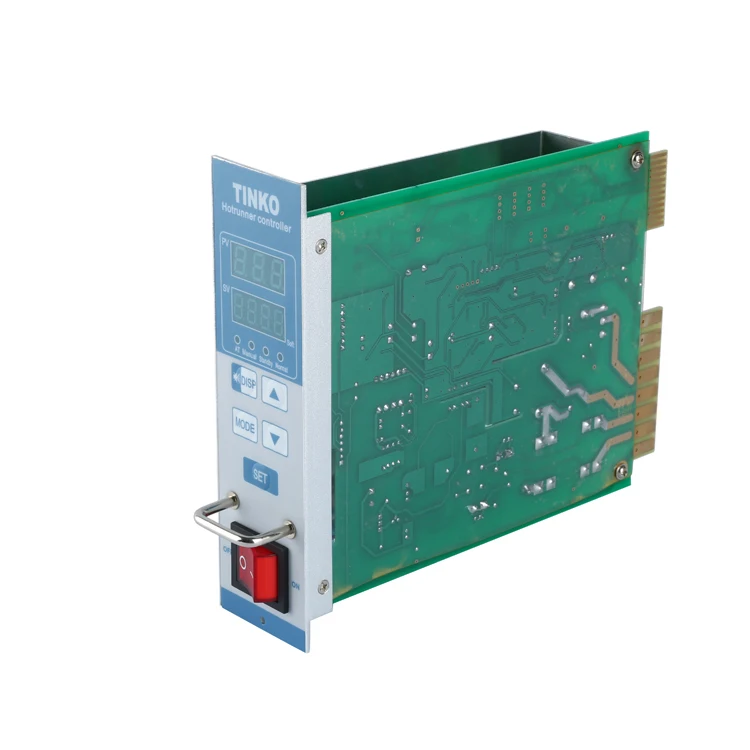

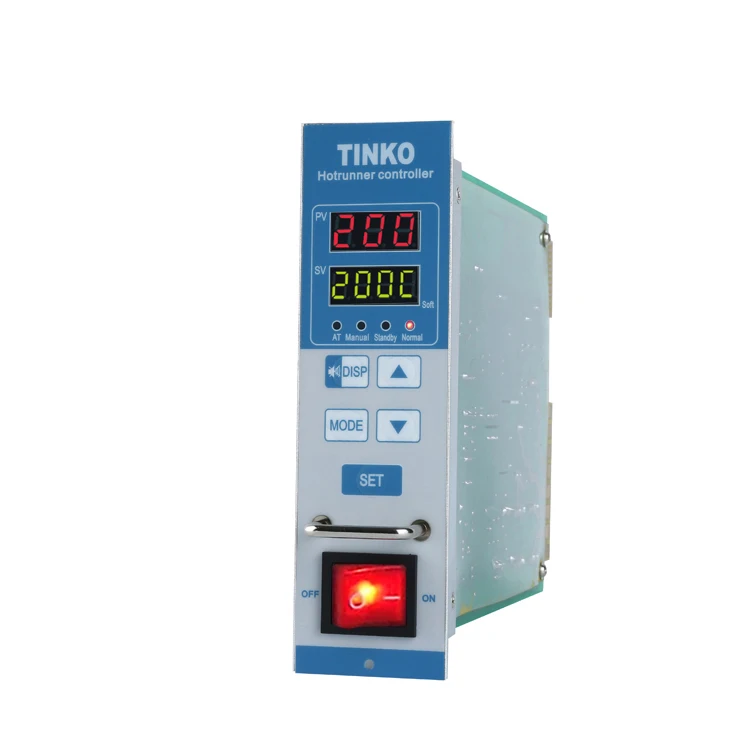

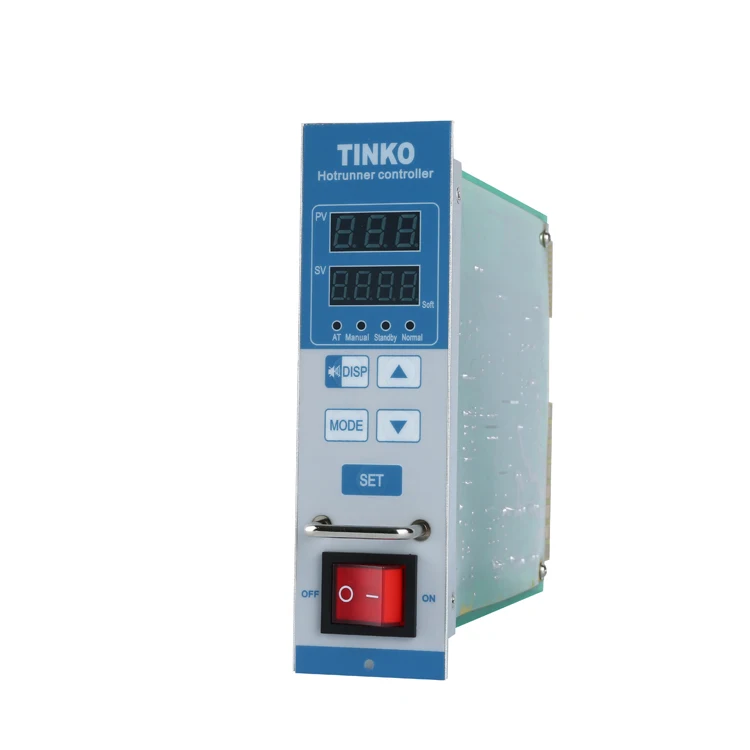

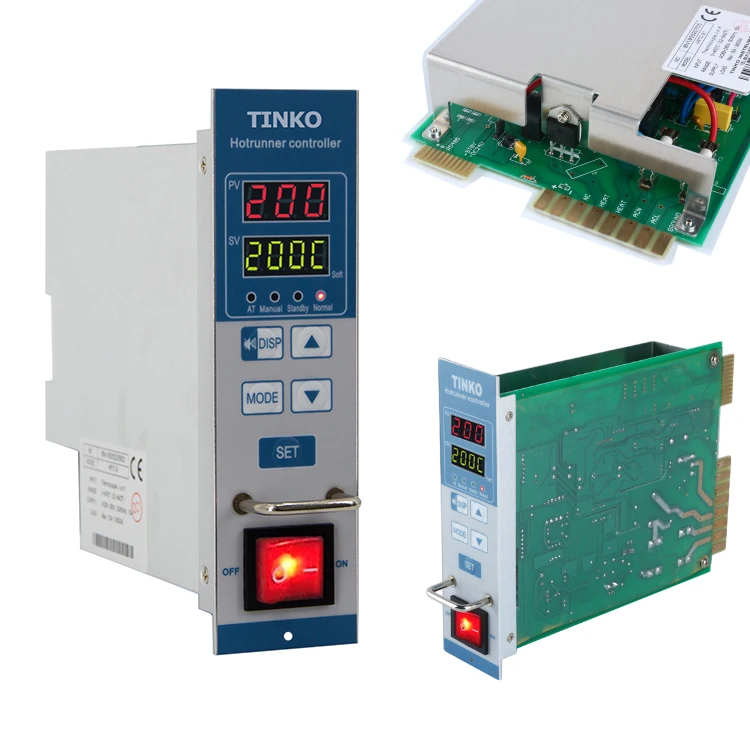

Tinko soft start hot runner PID temperature control module cards with Rocker Switch
- Category: Test Instruments >>>
- Supplier: Tinko Instrument (Suzhou) Co. Ltd.
Share on (1878916964):
Product Overview
Description
HRTC-B
Hot Runner Temperature
Control Module
Control Module
Products Description
1. General Specifications
Power Supply | AC85~ 415V, 50/60HZ | Consumed Power | < 2.5W |
Control Mode | Auto-PID / Manual | Output Type | Zero Cross / Phase Angle |
Sensor Type | Thermocouple J or K | Measurement Range | 0~500℃(32~932℉) |
Measurement Accuracy | ±0.25% FS | Setting Range | 0~450℃(32~842℉) |
Control Accuracy | ±0.25% FS | Load Capacity | 20A, 50W~2200W(110V) 100W~4400W(220V) |
Working Temperature | 0~50℃(32~122℉) | ||
Storage Temperature | -20~70℃(-4~158℉) | Switching mode | HRTC-B: Rocker Switch |
Working Humidity | 10~80%RH (No condensing) |
2. Features
Hot runner temperature controller is a crucial part in the hot runner system. It can test the temperature and continuously adjust the output power to keep the temprature steady.
Widely used in electronics, automobiles, medical, commodities, toys, packaging, architecture, office equipment and other industrial sectors.
Stable performance to make your production efficient
■ Wide power supply range: 65-415Vac
■ Multiple self-diagnostic:
* thermocouple/heater inverse
* thermocouple/heater misconnection
* fuse broken down
* ambient temperature monitor
* thermocouple/heater misconnection
* fuse broken down
* ambient temperature monitor
■ Selectable manual control mode
■ Optional remote standby/alarm output
■ Compatible with YUDO, Athena, DME, INCOE, etc
■ Achieved ISO and CE certifications
Outstanding user experience
■ Price advantage from head of supply chain
■ Supporting video inspection
■ Skilled engineer in this field for 25 yrs
From Materials, Quality Control, Package, strictly control the quality from the start to the termination
• Material — we have suppliers which have cooperated for more than 10 years, thanks to them, our production growing steadily and supply sufficiently

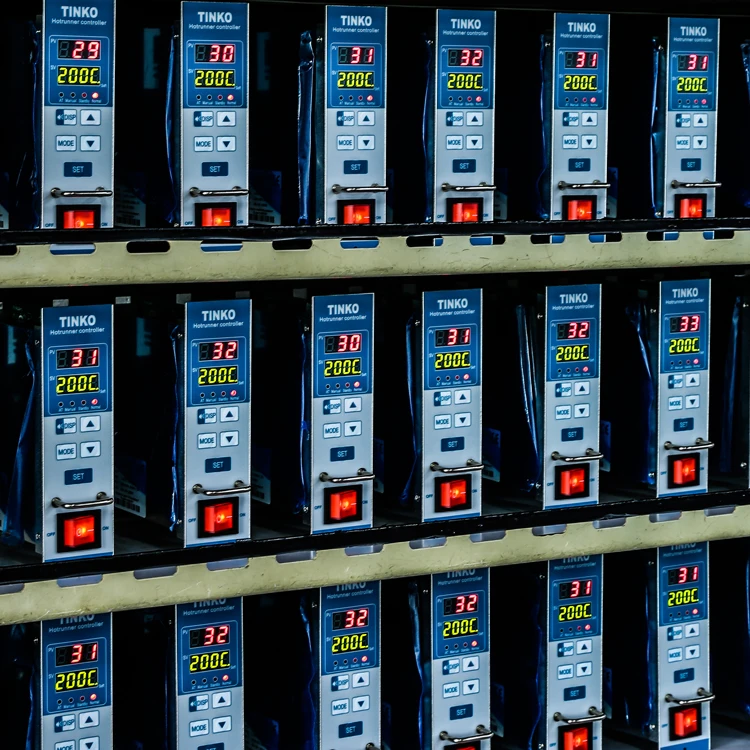

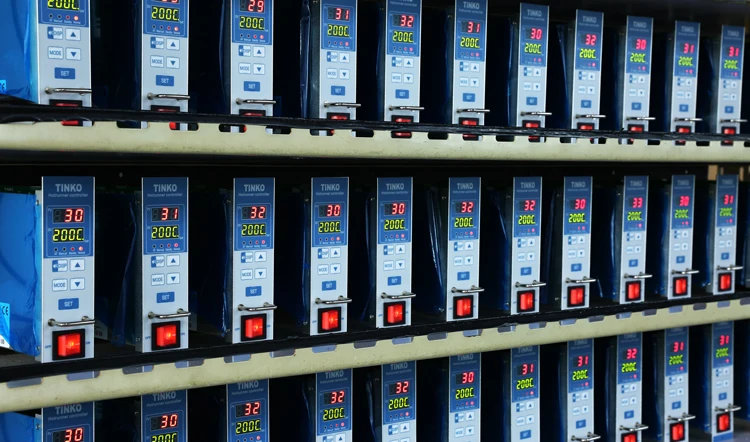

• Quality Control — we always do examines, burn-out tests and adapting tests to check if the products is qualified (every approved products will have a QC mark on their lables)
• Package — our package box have approved broken-testing which minimizes the risk of damage during the shipping
Click to contact us
for more info
for more info
More Options
ALL MODULES COMPARISON

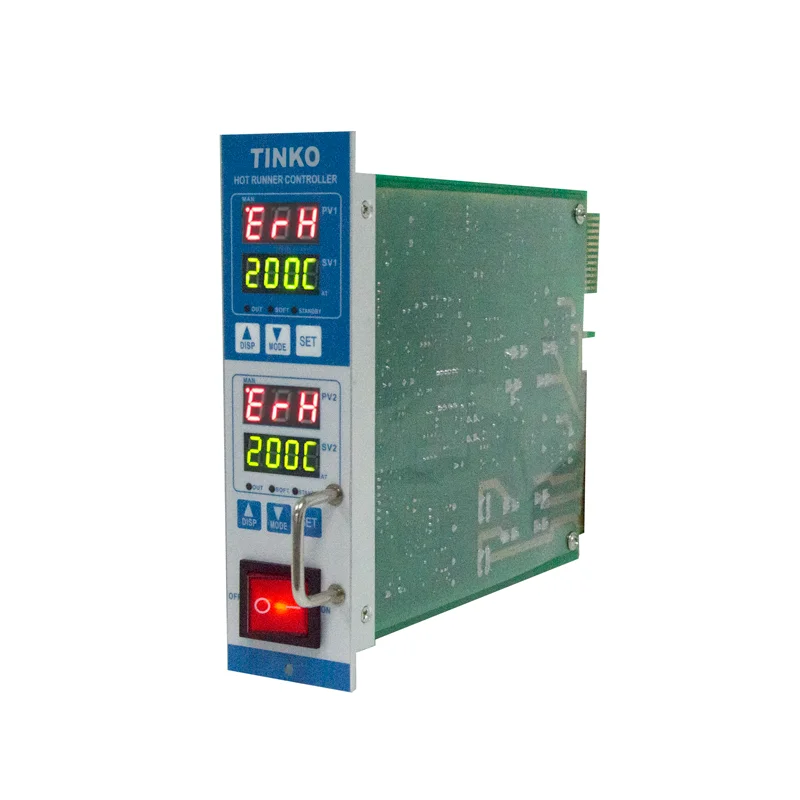

Features | HRTC-A | HRTC-B | HRTC-G | HRTC-F2 | |||
Zone | Single zone | single zone | Single zone | Dual zones | |||
Process Display | LED | LED | LCD | LED | |||
Sensor Type | Thermocouple J or K | ||||||
Power Switch | Pushbutton | Toggle switch | Pushbutton | Toggle switch | |||
Control Mode | Auto PID or Manual | ||||||
Control Accuracy | ±0.1%F.S | ±0.1%F.S | ±0.1%F.S | ±0.1%F.S | |||
Comply with DME/Athena/YUDO | YES | NO | |||||
Communi-cation | optional | optional | optional | NO | |||
Hyperlinks | |||||||
APPLICABLE CONTROLLER
HTRC Series
• 1~24 zones mainframe is provided
• Compatible with DME, YUDO, etc.
• Low cost, saving space
• Customized connector type, mold-power & thermocouple wiring mode, power supply wiring mode
