Active/Passive 0 10V Signal dimming driver 0 10V controller for dimming led lighting
- Category: >>>
- Supplier: Shanghai Jibang Electronic Technology Co. Ltd.
Share on (1880793466):
Product Overview
Description
Active/Passive 0-10V Signal dimming driver 0-10V controller for dimming led lighting
Product Description
Summarize:
This series is 0/1-10V dimmers for led strip and other constant voltage or constant current led lamps,we offer AC and DC input products.No flicker on low brightness.We use logarithmic
brightness curve to get smooth and good sense for eyes.They all compatible with products of Lutron,Dynalite,Clipsal,LDS,Osram,Philips,ABB,Schneider,Levition,JUNG,Berker,Be Lichtregler etc.
Features of dc constant voltage dimming 0-10V dimmer
1, Analog Signal driver,receive 1-10V dimming signal.
2, Single channel constant voltage output,Max.10A per channel.
3, Support active and passive to use.
4, With the self-test function, support short circuit and over current protection functions.
5, When the power turn off,it has memory function.
Details of dc constant voltage dimming 0-10V dimmer
| Model NO. | Channels | Input Voltage | Max Current Load | Max Output Power | PWM Socket |
| DM9100 | 1CH | DC12V~24V | 1CH*10A | 120W(12V)/240W(24V) | Press button terminal |
| DM9103 | 1CH | DC12V~24V | 1CH*10A | 120W(12V)/240W(24V) | Press button terminal |
| DM9135 | 1CH | DC12V~24V | 1CH*6A | 72W(12V)/144W(24V) | Press button terminal |
| DM9138 | 3CH | DC12V~24V | 3CH*6A | 216W(12V)/432W(24V) | Screw terminal |

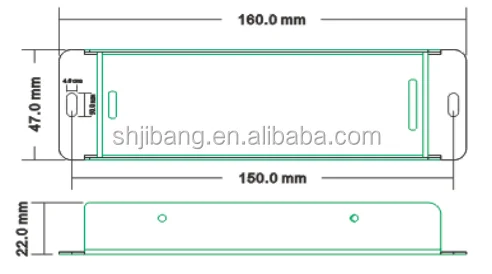

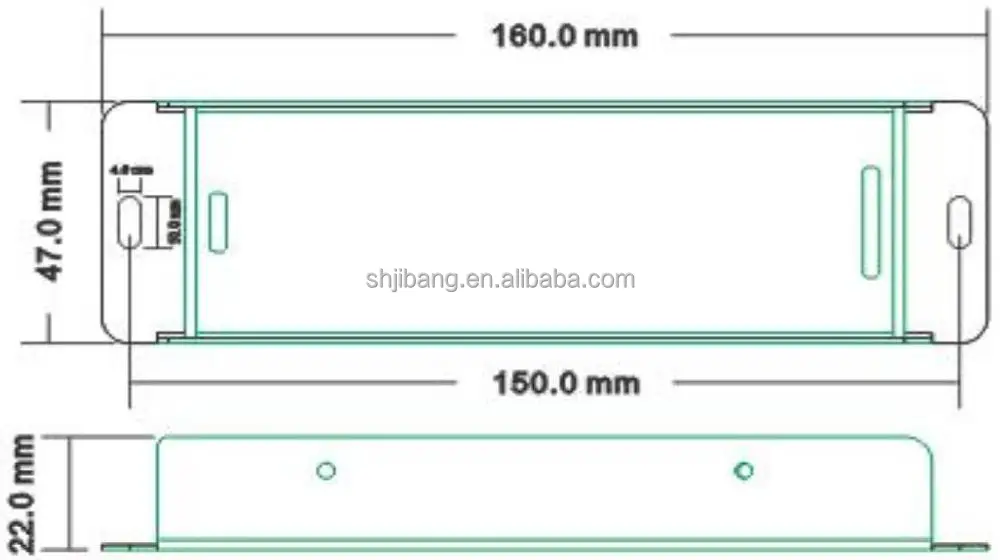

Size
Function Instruction
According to the product connection diagram, active 0/1-10 v voltage regulator, or passive 1-10 v dimmer,LED load,power by positive and negative to connect to the right port, open the power supply, adjust the 0/1-10 v voltage regulator, so as to change the output of the controller, until get the satisfactory of LED output brightness.
When the [ Analog IN ]port breaking, controller all light output; When the[ Analog IN ] port two terminals short circuit, the output shut down.

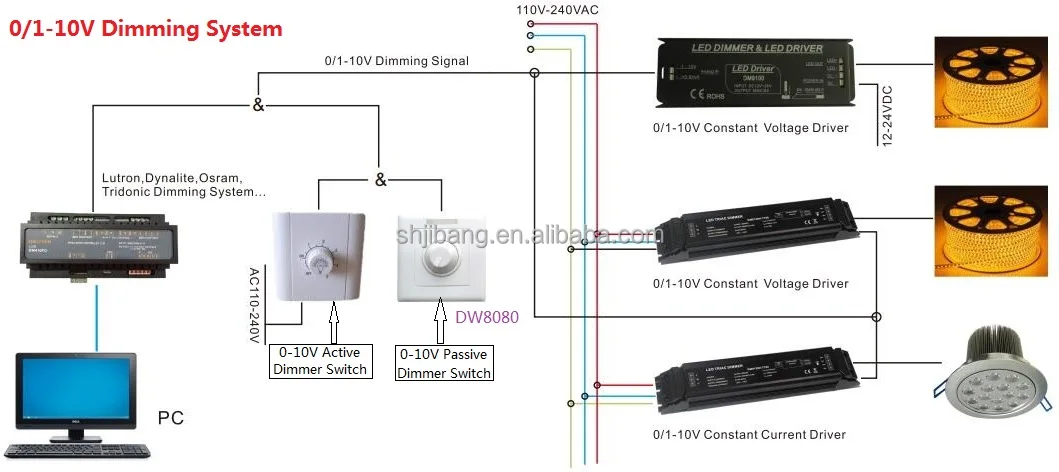

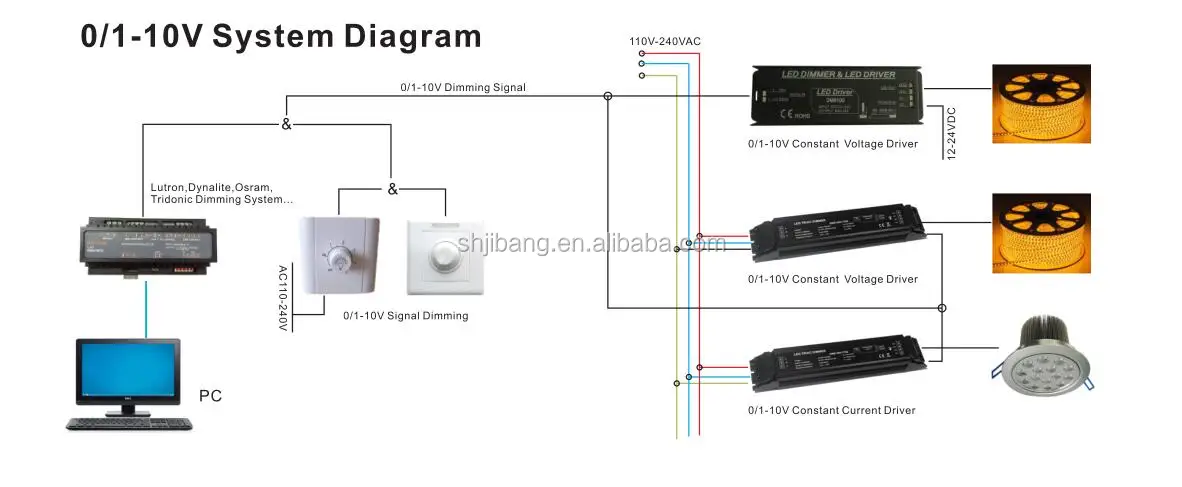

Wiring Diagram
Remark:
1. Please choose regulating curve smooth 0/1-10 V dimmer, otherwise it may directly affect the LED dimming smoothness.
2. Load LED's voltage and the controller of power supply voltage must be consistent, and must be in the product prescribed voltage input range.
3,0/1-10V Active and Passive dim signal input can get 0-100% brightness output and the dimming curved path is proportional to the dim signal.
