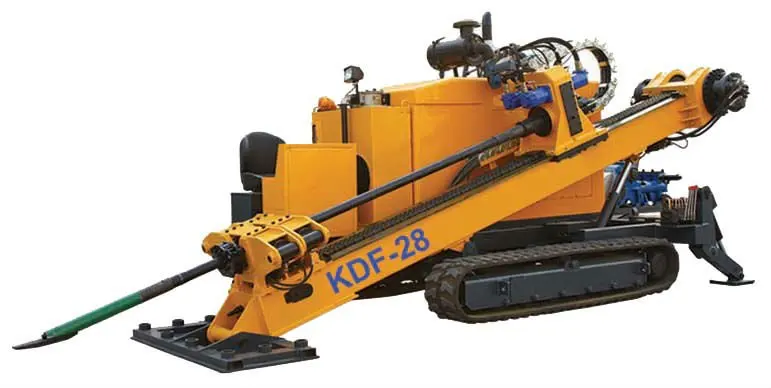

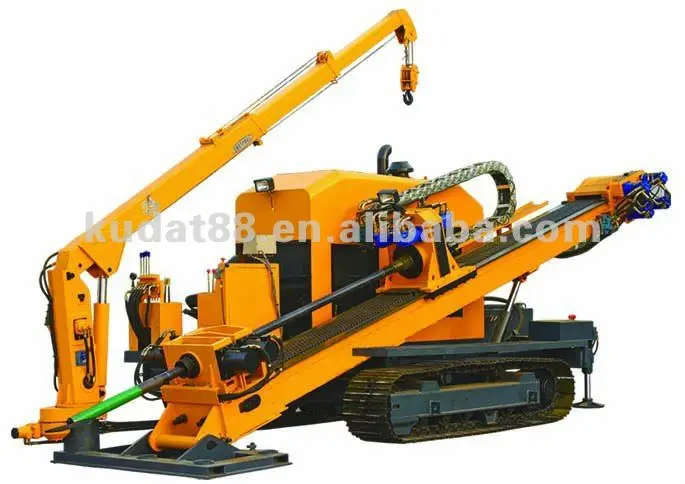

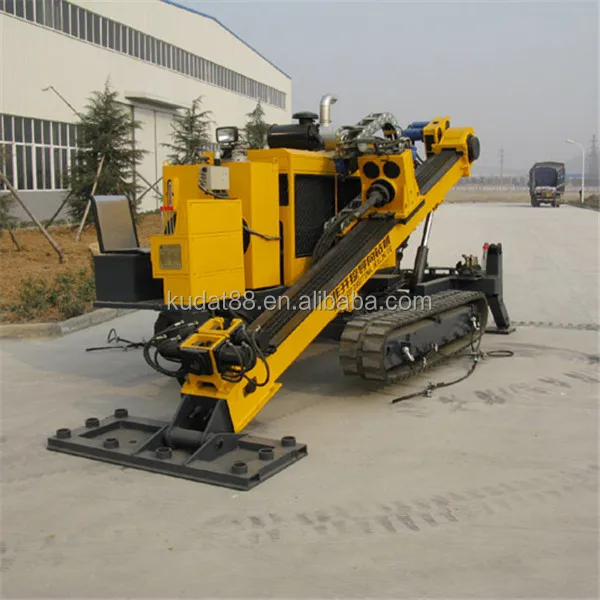

hot sale Underground Horizontal Directional Drilling Machine / HDD Machine For Sale KDP 15DL
- Category: >>>
- Supplier: Wuhan Kudat Industry & Trade Co. Ltd.
Share on (1903941839):
Product Overview
Description
Product Description
Drill machine | |
Pullback force (kN) | 150 |
Rated spindle torque force (kN) | 4200 |
Rated pressure (Mpa) | 20 |
Spindle rated rotary speed (r/min) | 60/120 (L/H) |
Thrust force (kN) | 75 |
Feed travel distance (mm) | 3500 |
Diesel engine model | R6105ZG36 |
Diesel engine rated power (kW/rpm) | 85/2000 |
Diesel engine fuel consumption (g/kw.h) | ≤ 236.6 |
Travel speed (km/h) | 2.5 |
Mud pump flow capacity (L/min) | 150 |
Mud pump pressure (Mpa) | 8 |
Entry angle (o) | 0-22 |
Guide hole diameter (mm) | 80 |
Overall dimension (LxWxH) (mm) | 5600x2050x2380 |
Operation weight | 6000 |
Drill rod part | |
Rotary guide head diameter (mm) | 80 |
Rotary connecting swivel diameter (mm) | 120 |
Drill rod (dia. x length) (mm) | 60x3000 |
Max. pullback diameter by reamer (mm) | 420 |
Guide hole length (m) | 300 |
Reamers (mm) | φ179 φ259 φ313 φ365 φ417 |
Mud pump part | |
Mud tanker capacity (m3) | 1.5 |
Sludge making capacity (m3/h) | 6 |
Engine rated power (kW) | 4 |
Mixing method | Direct Inject sludge |
Overall dimension (LxWxH) (mm) | 2400x1300x1681 |
Operation weight (kg) | 252 |
|
|
