XSHF гармонический привод нулевой обратной жесткости ресниц Высокая точность торсионной жесткости <1 дуга мин (большинство размеров)
- Category: Speed Reducers >>>
- Supplier: Cangzhou Haina Electronic Technology Co. Ltd.
Share on (1913962977):
Product Overview
Description
Product Description

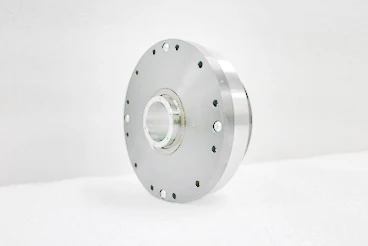

XSHF Harmonic drive reducer
Strain Wave Gearing (also known as "harmonic drive" because Harmonic Drive gears are strain wave gears produced by the Harmonic Drive companies) is a special type of mechanical gear system that can improve certain characteristics compared to traditional gearing systems (such as Helical Gears or Planetary Gears). It was invented in 1957 by C.W. Musser. The advantages include: no backlash, compactness and light weight, high gear ratios, reconfigurable ratios within a standard housing, good resolution and excellent repeatability (linear representation) when repositioning inertial loads,high torque capability, and coaxial input and output shafts.High gear reduction ratios are possible in a small volume (a ratio from 30:1 up to 320:1 is possible in the same space in which planetary gears typically only produce a 10:1 ratio).
Company Information
Our Services
Our pursuit: quality first, technology first, reputation first, service first.Companies adhere to quality first, customer first, reputation first, dedicated to new products, new technology, new process of constant innovation and development, in order to make more new and old friends both at home and abroad, for the development of harmonic drive technology in China.Here, wish to all the attention of cangzhou haina express our sincere thanks to the friends from all over the world.
FAQ
