Industrial Quick Freeing Machine SSD Tunnel Freezer For Food
- Category: Freezing Equipment >>>
- Supplier: Zhejiang Sanshon Machinery Co. Ltd
Share on (1922766064):
Product Overview
Description
Industrial Quick Freezing Machine SSD Series Dumpling IQF Tunnel Freezer
Product Description
Summary
The SSD series dumpling IQF tunnel freezer adopt stainless steel wire net belt or plastic net belt. According to different varieties, the products to be frozed can be put in the tray or directly on the conveying belt, and the rapidly frozen by the wind blowingfrom the top to the bottom or by the side wind. The quick-freezing machine of this model has the widest process range. It is suitable for various prepared foods(such as bun, dumpling, fish ball, etc.), seafood and especially varieties unsuitable for fluidized freezing. The optional range for freezing time is within 12~100mins.
Application
It has a wide application, is suitalbe for buns, dumplings, fish ball and other products.
Main technical parameters
Output±10%(kg/h): 300
Refrigerating capacity (kw):70
Freezer length (m): 8
Overall dimensions (m):10.4*3*2.5
Power required (kw) :21.2
Input material temperature (°c):+15
Output material temperature (°c): -18
the freezer temperature (°c): -36±2
Freezing time (min):12-100 continually adjustable
Refrigerant: R717/R22/R404A
Models
Model | Dimension (m) | Power required (kw) | Cold load consumption (kw) | Capacity(kg/h) |
SSD-100 | 8.5*2.8*2.5 | 10.3 | 22 | 100 |
SSD-200 | 10.5*2.8*2.7 | 11.0 | 40 | 200 |
SSD-250 | 10.5*3.1*2.7 | 14.2 | 50 | 250 |
SSD-300 | 12.0*3.3*2.7 | 15.4 | 65 | 300 |
SSD-400 | 13.0*3.3*2.7 | 20.2 | 90 | 400 |
SSD-500 | 14.0*3.3*2.7 | 20.6 | 115 | 500 |

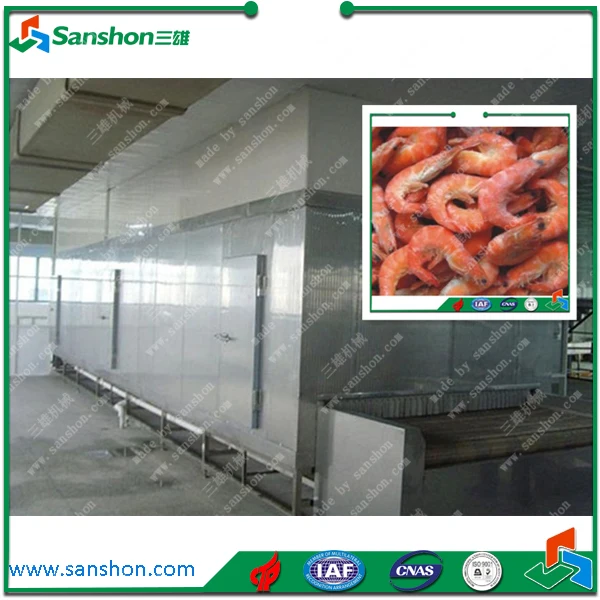

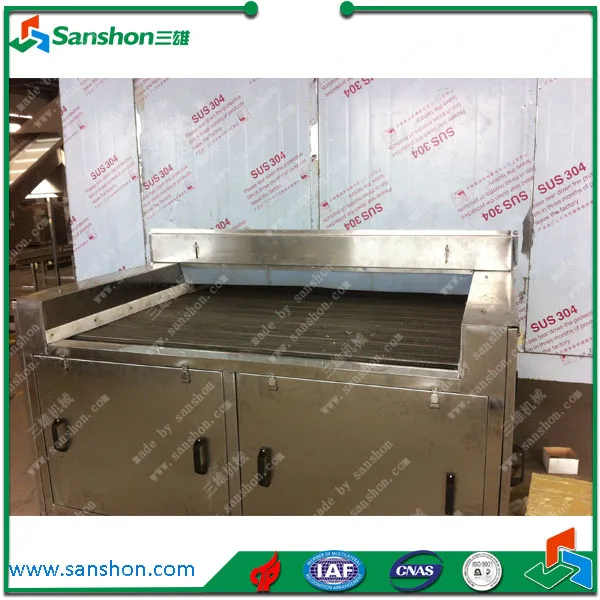

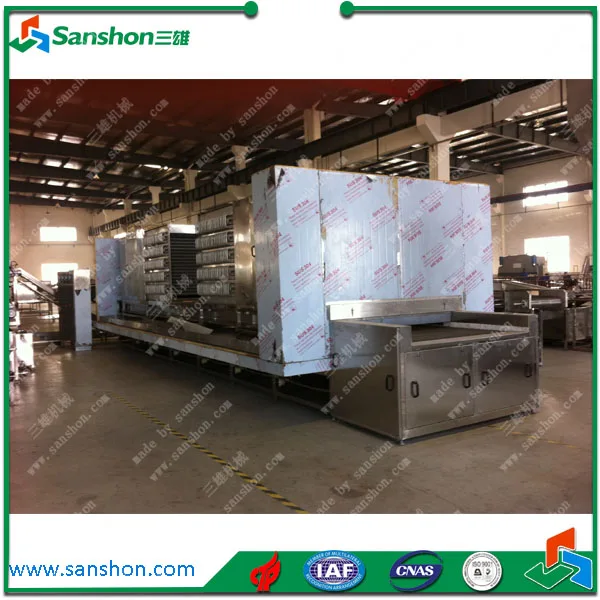

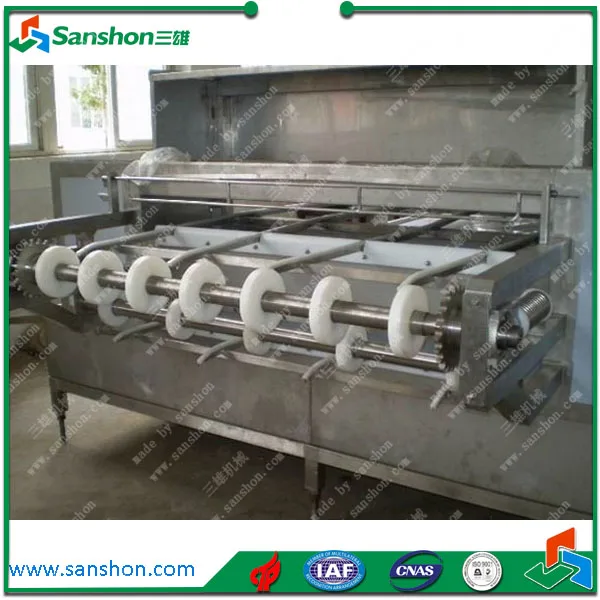

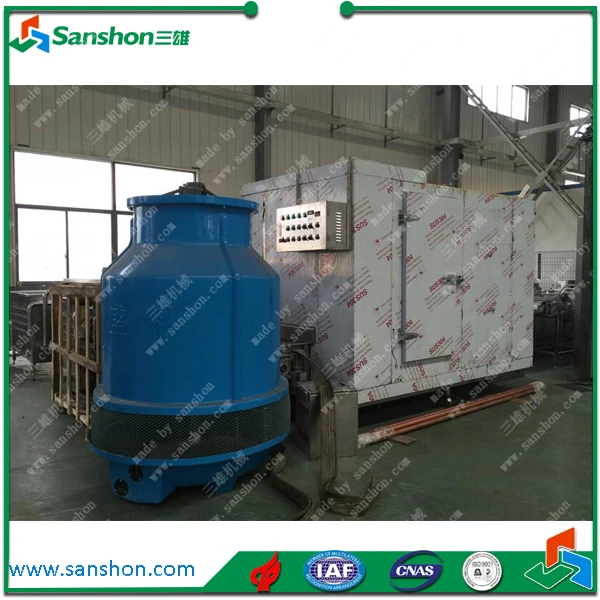

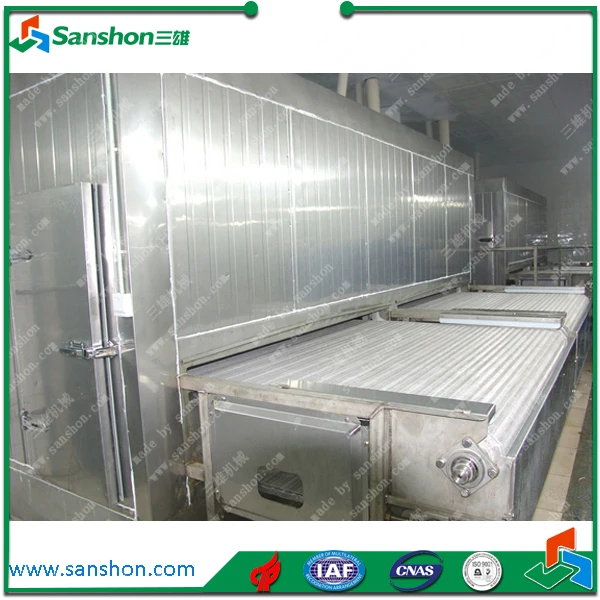

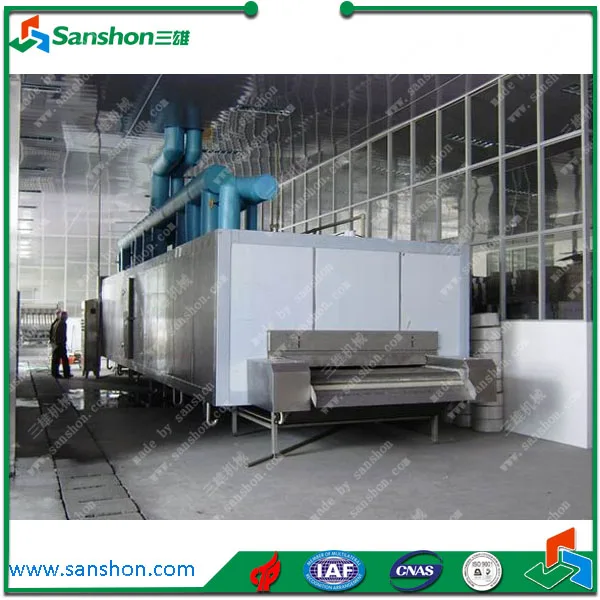

Product Pictures
