PLASTAR 1500mm Plastic Abc 3-Layer Film Blowing Machine
US $110000-$120000
PVC shrink film making machine
- Category: Blown Film Production Line >>>
- Supplier: Ruian Zhonglong Plastic Machinery Co. Ltd.
Share on (1928256981):
Product Overview
Description

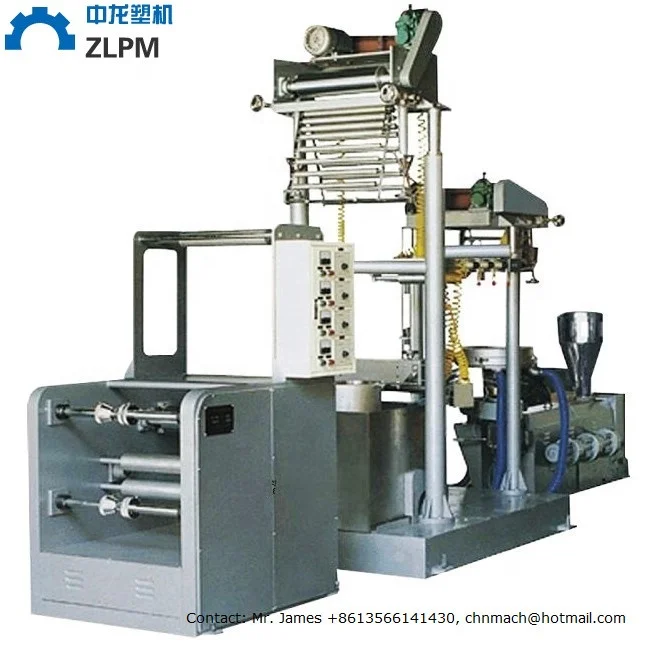

USAGE
This machine is PVC heat shrinkable film blowing machine for making printing grade PVC heat shrinkable film,
PVC shrinkable film is widely used for making printing labels, packing film. etc.
PARAMETER
Model | SJ-45/FM300 | SJ-50/FM400 | SJ-55/FM500 | SJ-60/FM650 | SJ-70/FM1000 |
Film width range | 60-300mm | 80-400mm | 100-500mm | 250-650mm | 350-1000 |
Film thickness range | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.12mm | 0.01-0.15mm | 0.01-0.15mm |
Output | 5-23kg/h | 10-32kg/h | 15-45kg/h | 20-55kg/h | 75-85kg/h |
Screw diameter | ¢45mm | ¢50mm | ¢55mm | ¢60mm | ¢70mm |
Screw ratio | 28:1 | 28:1 | 28:1 | 28:1 | 28:1 |
Main motor power | 7.5kw | 11kw | 15kw | 18.5kw | 22kw |
Main heating power | 7kw | 10kw | 13kw | 16kw | 19kw |
Die head diamter | ¢30 | ¢40 | ¢60 | ¢100 | ¢150 |
Machine weight | 1.8T | 2T | 2.2T | 2.5T | 3.0T |
Power input | 380V, 50Hz, 3P | 380V, 50Hz, 3P | 380V, 50Hz, 3P | 380V, 50Hz, 3P | 380V, 50Hz, 3P |
Machine dimension | 4.5*1.2*2.2 | 5.0*1.3*2.4 | 5.5*1.4*2.6 | 6.0*1.5*2.8 | 6.5*1.8*3.0 |
