Guangzhou BW audiovisual 17 inch lcd monitor lift

Product Overview

Description

Guangzhou BW audiovisual 17 inch lcd monitor lift



17 inch lcd monitor lift description

1,BW-LU series monitor lift specially designs for high-class conference solutions.

2,With its stable and reliable performance, simple and smart operation, It’s pretty popular in AV conferencing, intelligent office furniture, multimedia education, military command and financial analysis system etc.

3,With its unique overall functions, it provides an efficient solution and enjoyable experience in conference communication especially for enormous information share like data, image and sound etc.

4,The lift is usually used together with our tabletop sockets to produce unexpected results.

5,Our strict quality control and product inspection system also guarantee the product quality.



17 inch lcd monitor lift exclusive selling points

1.    17”, 19”,22”, 24” available, others can be customized

2.    Aluminum oxidation with drawing polishing surface process to make sure smooth and bright panel

3.    Adopting superior gear machine to produce precise gear to ensure stable and reliable lift;

4.    Selecting qualified mute motor with CE CCC marked

5.    Drive sytem: constructed by belt gearing and dual-rack system that highly improve the operation stability and also make very low noise.

6.    Provided with English buttons to control the lift, UP, DOWN, STOP, FORWARD, BACKWARD

7.    Remote control ,manual control and central control;

8.    Circuit Board protection system: Supply power automatically when the monitor lifts up. Power off automatically when lift down to help reduce energy consumption

9.    Adjustable angel of the screen after lifts up.

10.  Equipped with different data interfaces for convenient data access.



17 inch lcd monitor lift specification

Item NO.	BW-LU17		BW-LU19		BW-LU22
Style	LCD Lift with monitor
Products	Monitor lift+remote control
Panel size	490*160*4mm		550*160*4mm		620*190*4mm
Box size	470*150*655mm		530*150*655mm		600*175*665mm
Panel thickness	4mm
Lift mount size	420*80mm		480*80mm		540*105mm
Packing size	578*250*770mm		650*270*780mm		720*300*850mm
N.W	22kg		24kg		28kg
Voltage	110-220v
Power	20W
Pitch angle	0-15°
Single trip time	≤20s
Working Temp.	0-45°
R.H.	≤80%
Color	silver/black
Remote distance	35m
Operation noise	≤30db
Material	Wiredrawing aluminum alloy
Control way	Touch key-press/Remote control/RS485 central control
Running way	double motor with gear drive
Protecting way	protecting finger from nipping
Accessory	stator 2pcs  screw(5*10mm)4pcs  power line 1 pc

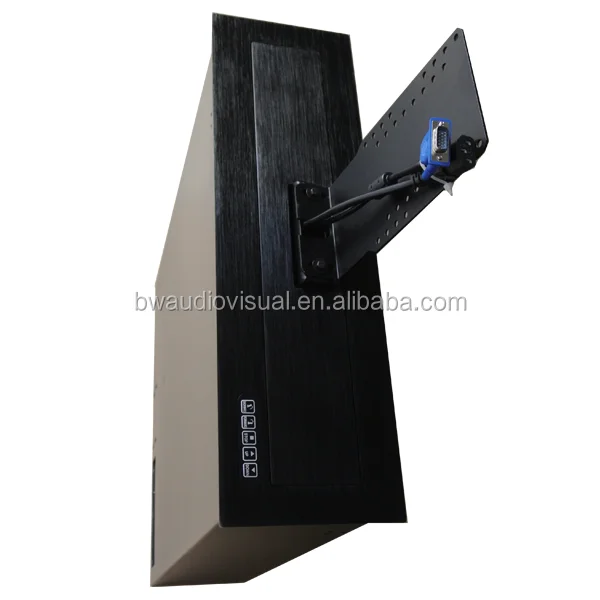

17 inch lcd monitor lift images

17 inch lcd monitor lift projects



Related products show

17 inch lcd monitor lift operation process

1.    Before used, check terminal power and connection lines

2.    Code proofreading of remote control if needed, details refer to manual pls;

3.    Press “UP” button on the panel or controller to lift up the monitor;

4.    After the lift is up, adjust the suitable angel of the screen through “BACKWARD” & “FORWARD” buttons;

5.    After use finished, press “DOWN” button to lift down the monitor;

6.    The power will be automatically off after lift down;

7.    Plug off the power and connection lines.

17 inch lcd monitor lift package



17 inch lcd monitor lift certificate



17 inch lcd monitor lift after-sale service

1, Shipment tracking. B/L(other document) or tracking number will be gave at the first time.

2, Any problem will be solved in 24 hours.

3, Technical support always on line.

4, Regular follow-up service.



17 inch lcd monitor lift oversea market



Factory show



Delivery and payment

FAQ

Warmly welcome to contact
