advanced display UPS D series
- Category: Batteries >>>
- Supplier: Zhongshan Dianxing Electrical Appliance Industry Co. Ltd.
Share on (1932383143):
Product Overview
Description
Product Specification

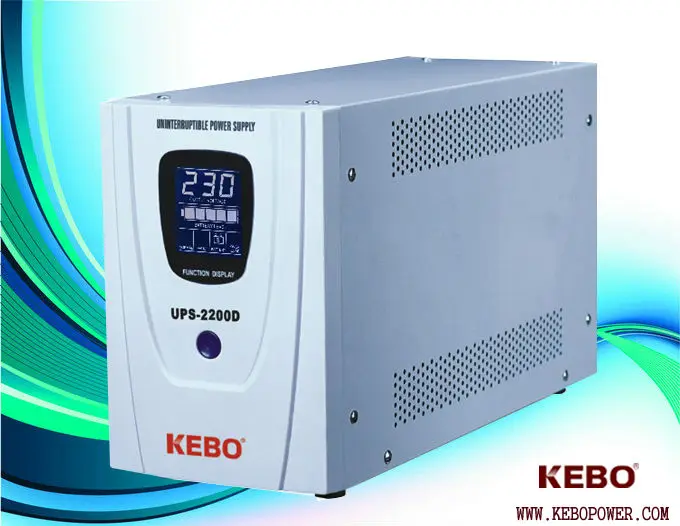

| Model | UPS-2200D | |
| Power | 2200VA/1300W | |
| Technology | Line Interactive | |
| Input | Input Voltage Range | 165V-275Vac/90Vac-140Vac±3% |
| Nominal Input Voltage | 220/230/240/110/120Vac | |
| Input Frequency | 50/60Hz | |
| Max.Input Current | 4.7A/9.4A | |
| Output | Nominal Output Voltage | 220/230/240/110/120Vac |
| Max.Output Current | 3.3A/6.6A | |
| Output Voltage Range(Normal Mode) | 220/230/240/110/120Vac+10%-15% | |
| Output Voltage Range(Battery Mode) | 220/230/240/110/120Vac±10% | |
| Output Frequency(Normal Mode) | Synchronized(Sine Wave) | |
| Output Frequency(Battery Mode) | 50/60Hz | |
| Wave Form | Step Wave | |
| Power Factor | 0.6 | |
| Efficiency | 90% | |
| Transfer Time | 10ms | |
| Batteries&Runtime | Battery Type | Maintenance-free Sealed Lead-Acid Battery,Leakproof |
| Included Battery Modules | 2×12V/7.0Ah | |
| Runtime | Full Load 2.5 Minutes | |
| Half Load 8 Minutes | ||
| Charge Time | 12 Hours(90%) | |
| LCD Status Display | Output Voltage,Normal,Fault,Battery,Overload,Battery Level | |
| Audible Alarm | Buzzer | AC Unusual/Battery Low Voltage/Overload/Short Circuit/PCB Failed,Beep for 240Seconds |
| Interface Port(s) | Interface | RS-232/USB |
| Control Software | UPSlion2000 | |
| Cold-start Capability | Yes | |
| Protection | Surge Protection and Filtering | High Voltage,Low Voltage,Surge,Spike |
| Overload Protection | 120%-150% | |
| Battery Low Voltage Protection | 20V | |
| Output Short Circuit Protection | Output auto cut off,Buzzer beeping | |
| EMI Filter | Yes | |
| Tel/Fax/Modem Jack | Yes | |
| Regulatory Approvals | CE/UL/CUL Listed,UL497A,UL 1778 | |
| Operating Conditions | Operating Temperature | 0-40°C |
| Storage Temperature | -15-45°C | |
| Operating Relative Humidity | 10%RH-95%RH,Non-condensing | |
| Dimension | Inner Box(mm) | 593*220*305 |
| Unit Weight(kgs) | 23 | |

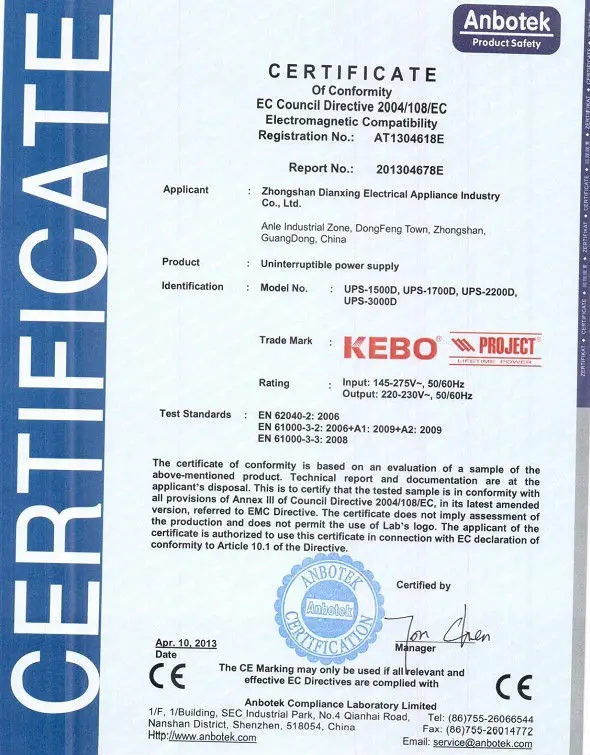

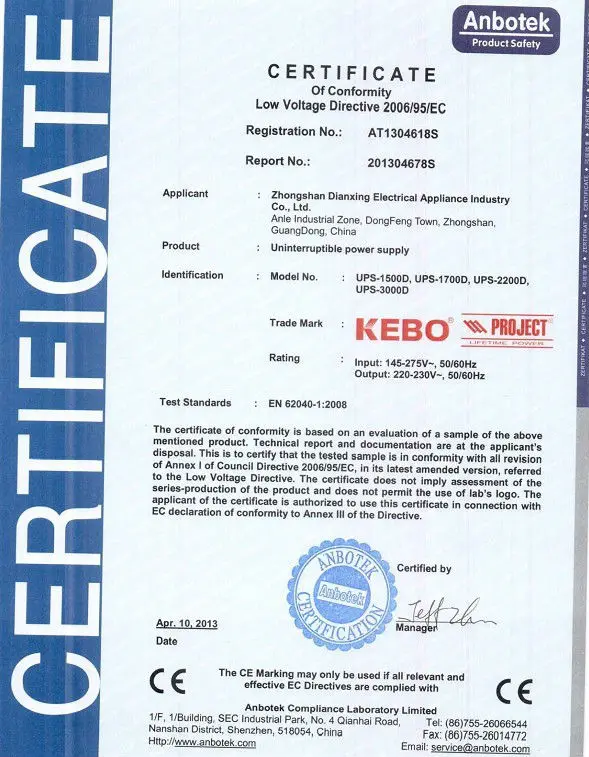

Product Certification

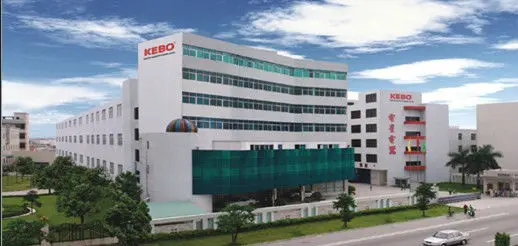

About KEBO:
A Factory with 6 production lines
A Factory with 30 years History and Expertise In power Supply
A Factory with market presence in 95 Countries.
A Factory with more than 500 Experience Workers
A Factory with more than 32,000Square Meters Factory.
The best warranty policy comes from the excellent product quality itself, by buying KEBO products, you are comfortably enjoying 2 years' warranty.

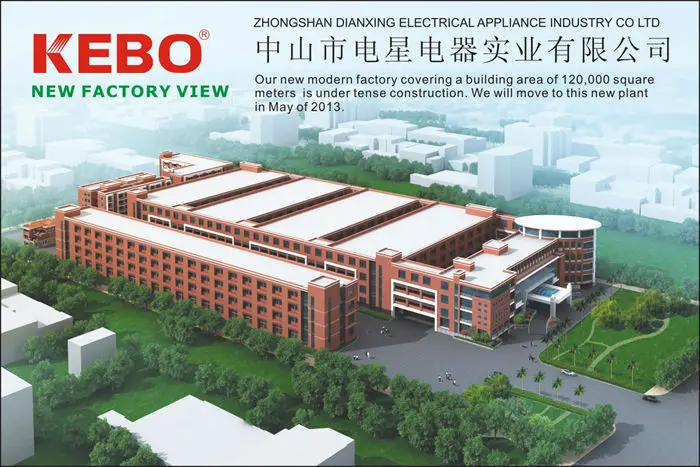

New Factory:
KEBO's new factory is in rush construction now. The 4 big buildings and staff dormitory have already finished, and it will be intended for use next year in 2014. Welcome to visit our new factory!
Factory Workshop
