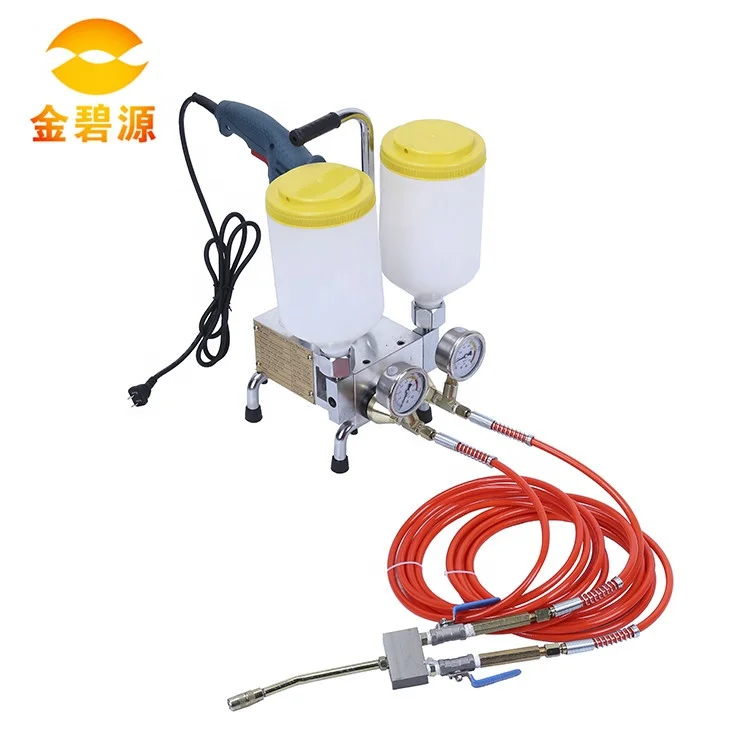

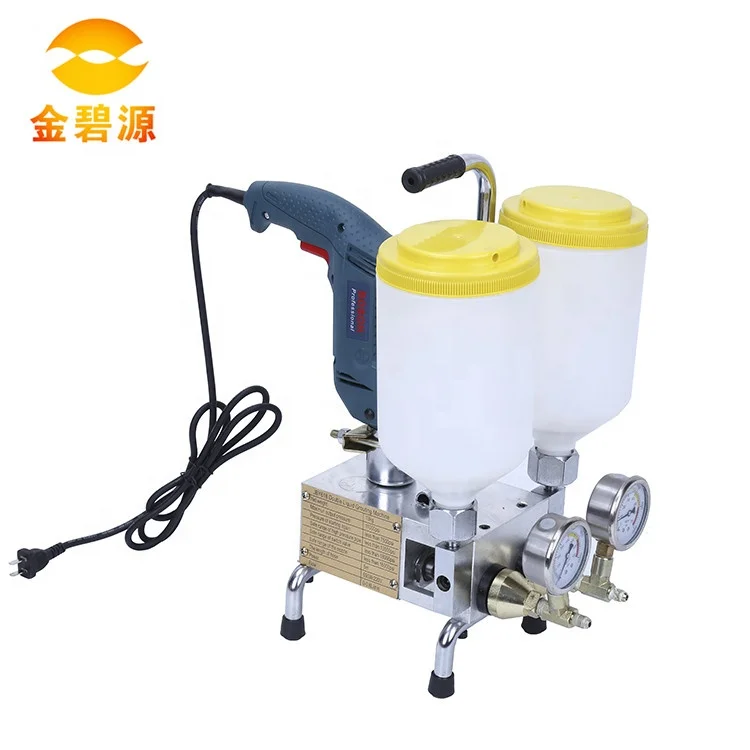

Double Liquid polyurethane foam/epoxy resin Waterproof machine

Product Overview

Description

Hot Selling portable grouting injection pump PU injection with high Technology

Product Description

Double-liquid grouting machine is a professional machine for structure reinforcement, leak stoppage, easy to maintain. The parts of machine aren’t deformed when being injected. Besides, it can avoid the inconvenience of heavy machinery for workers and is the best tool for the persons who work on the professional water- sealing project.



Fast Construction:upgrade to 0 ~ 6000spi work pressure in a few seconds, faster than other models on perfusion.

Durability: when the pressure is up to 8000psi (Max), the parts of the body will keep their shapes.

Simple Repair: it can be repaired in the construction site, avoiding stopping working because of sending for maintenance due to mechanical failure.



Specification

Double liquid grouting machine
Net weight	13kg
Maximum output pressure	10000psi
Pressure of starting again	less than  7500psi
Flow	0-0.8L/min
safe range of switch valve	less than  15000psi
the length of hose	5m
Power	690W/220V

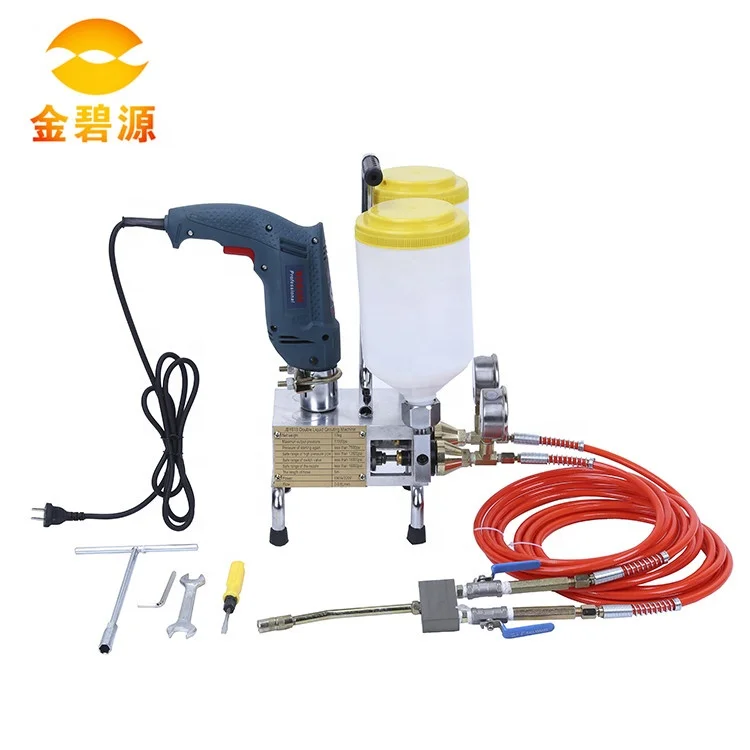

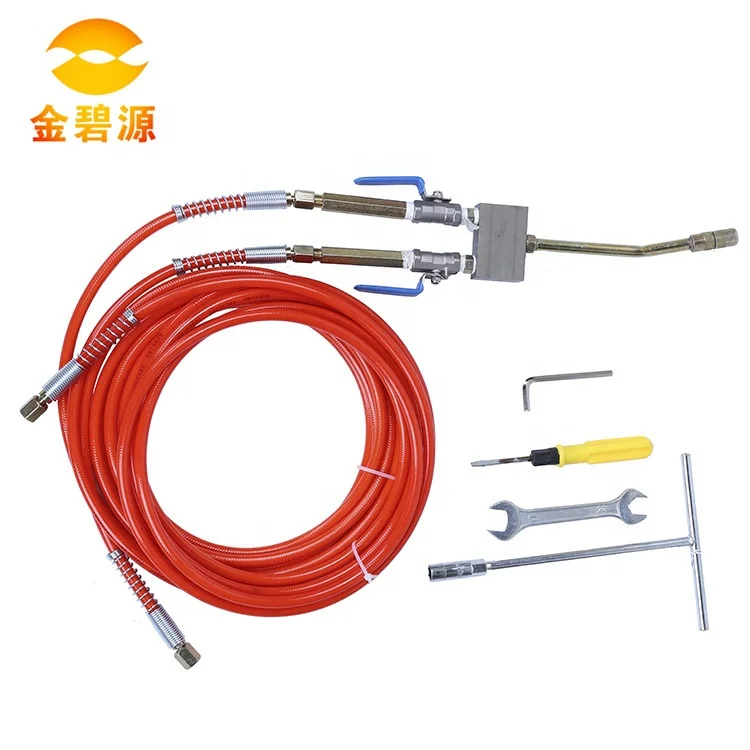

Accessories freely

Drill	1 SET 910W

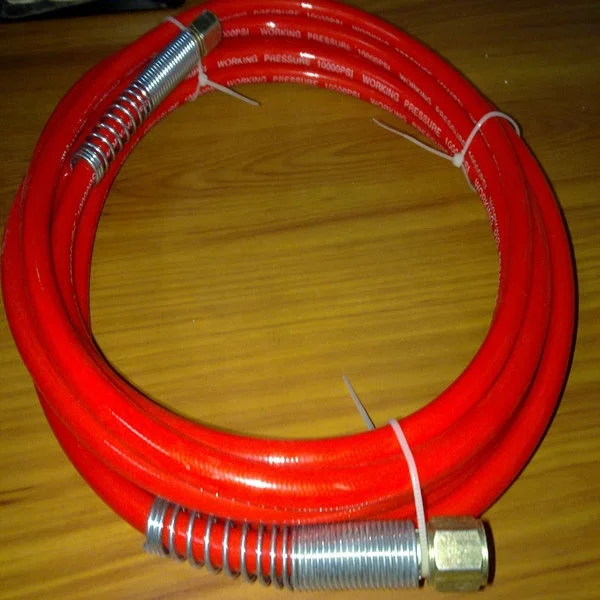

High Pressure hose	2 PCS 5M
Shut-off Value	1 SET
Repairing Kit	1 SET
Seal Set	1 SET
T Type Wrench	1 SET
Rubber Pad	10 PCS
Grease Coupler	1 PC
Filter	1 PC
Material Cup	2 SETS



















Application places

Leakage blocking, strengthening and reinforcing for subway tunnel, culvert, structure hives, crack, second construction joint and so on.



Usage

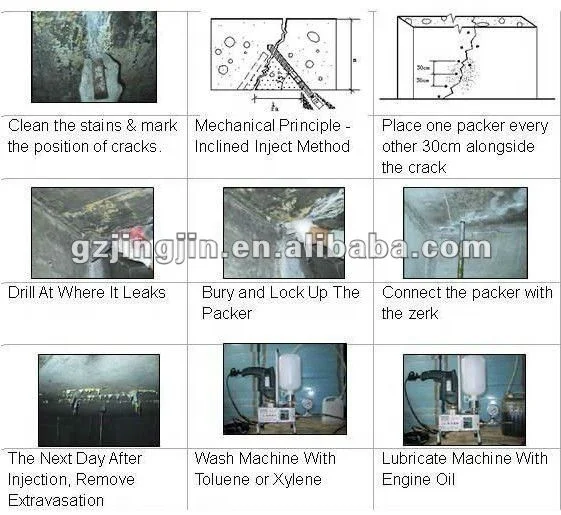

A + B agent or polyurethane foam separately pours into the feed cup. Firstly, turn off the switch of straw and insert the double-liquid needle locked, start the power switch and inject the water-sealing agent into the body for leak stoppage & reinforcement.

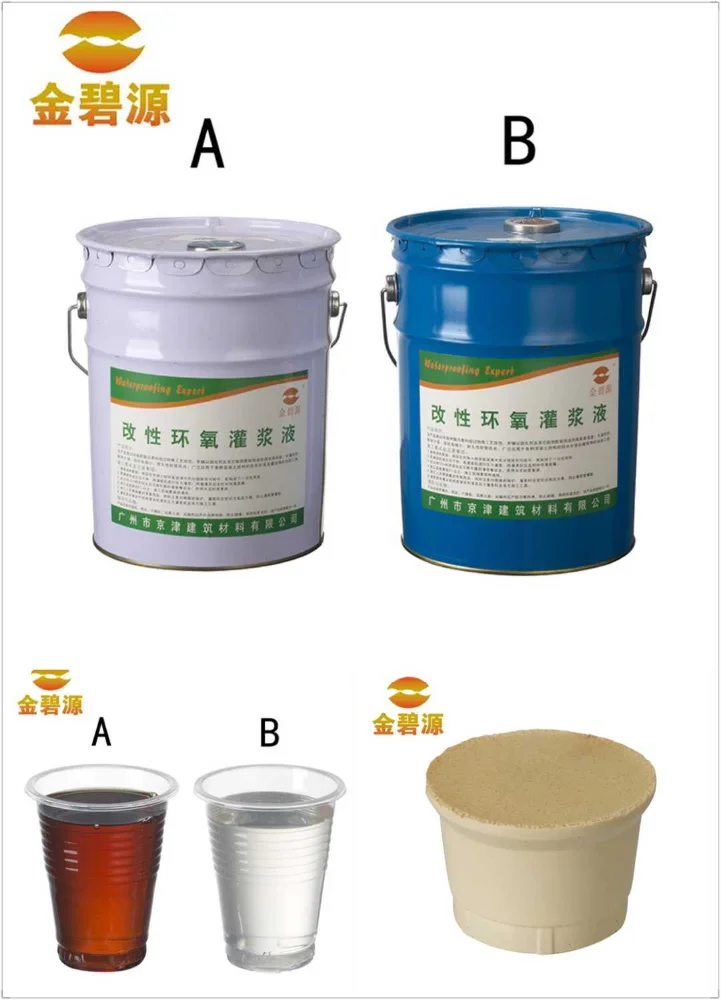

Suitable Materials

1:1 matching double-liquid non particle low-viscosity liquid.

1. Double liquid-type PU Foam Waterproofing plugging agent, insulation material,

2. Double liquid-type quick-setting PU/EPOXY reinforcing agent

Troubleshooting

1. Ask: Leaking in the nozzle while injection?

Answer: The rubber nut wears out in the nozzle. Dismount the nozzle and replace it with a new one.



2. Ask: The pressure of the pump cannot raise?

Answer: Take of the four hexagonal screws in the pressure increasing cylinder, clean groove in the pressure pump with hard brush (steel brush) and steel ball, spring and pressure increasing cylinder. If the surface of the steel ball is not smooth enough, please replace it and assemble it. Adjust the screw, any leaking while injection, please adjust the screw with the special spanner. If it can’t be adjust, please change the washer.



3. Ask: Piston if full of the residue?

Answer: Clean up the residue on the piston.
