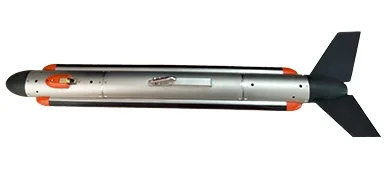

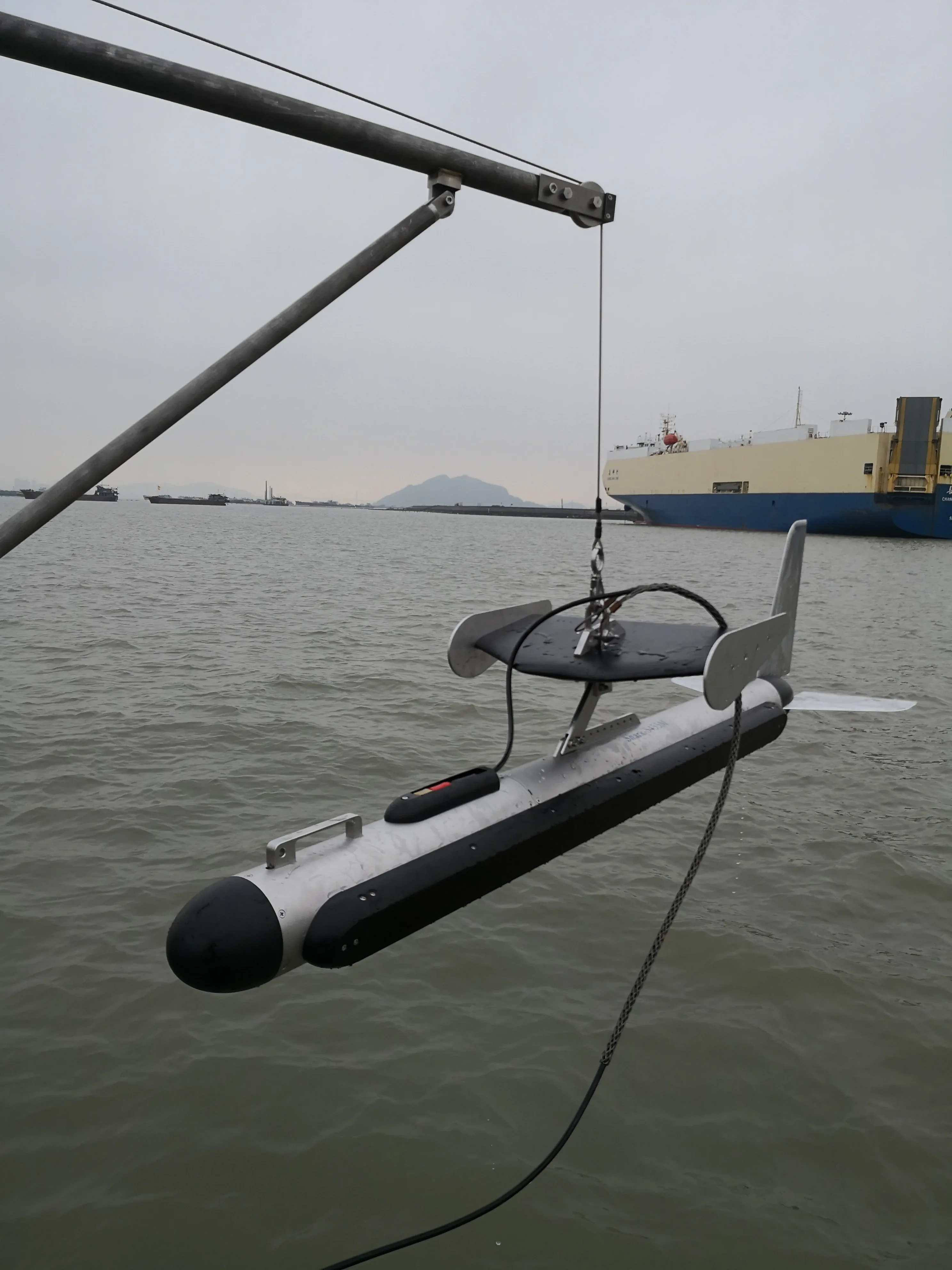

Side Scan Sonar SharkS150D

The side scan sonar can be operated in 150 kHz and 450 kHz frequency . With the control of the deck unit, signals are transmitted and echoes of seafloor are received in the towfish successively. The raw data is processed, analyzed and displayed by the sonar software, which can form a high resolution image. At the same time, the data could be saved in OTSS or XTF format. The system contains strong pressure stainless steel tow fish, high strength of Kevlar cable, waterproof deck unit and customized OTech® software.





SPECIFICATIONS
Towfish
Frequencies	150kHz,450kHz
Beam width	Horizontal: 0.6°@ 150kHz, 0.2°@ 450kHz; Vertical: 40°
Maximum working range	450 meters @ 150kHz; 150 meters @ 450kHz
Depth rating	450m
Resolution	Horizontal: 1.25cm, vertical: 0.0035h (h: working range)
Size	1500mm*105mm(L*D)
Weight	29KG
Standard sensors	High,Roll, pitch, heading, high, depth
Cable capstan	Length: 50m
Connect Box	Power: 30W/220VAC(24VDC)
Black box searching	Optional
Sonar Workstation
Basic operating system		Windows XP®/Win7
Sonar software		SharkPro®
Data format		SDF or XTF or both, selectable
Navigation input		NMEA 0183
