wire butt welder steel wire butt welding machine
US $60000-$80000

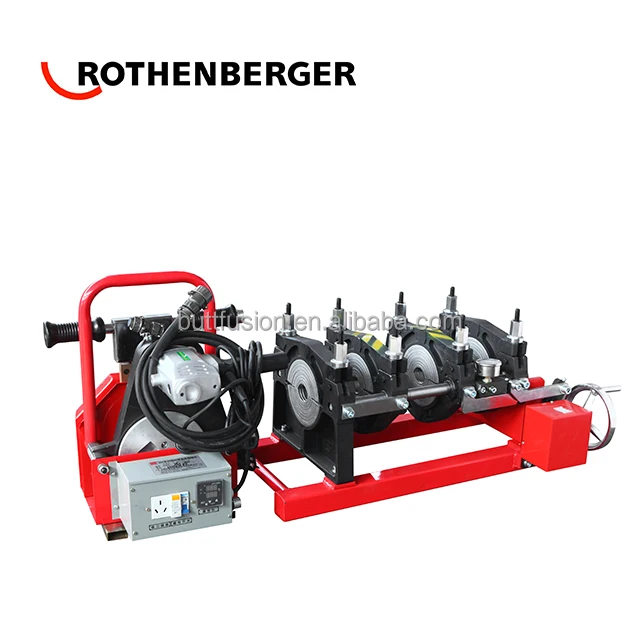

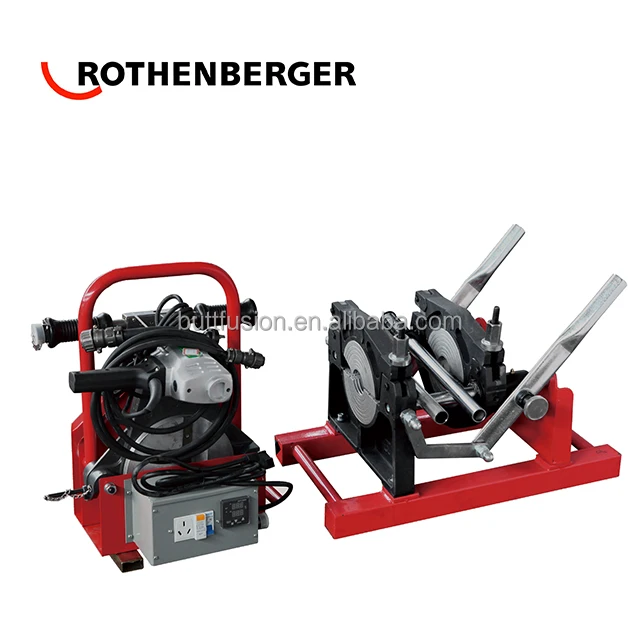

SHDS160 manual welding pipe machine
- Category: Butt Welders >>>
- Supplier: Rothenberger (wuxi) Pipe Technologies Co. Ltd.
Share on (200594067):
Product Overview
Description
SHDS160/50 manual welding pipe machine with 3 types
HDPE pipe manual butt fusion welding machine with 2 circles ,
Manual Butt Fusion Welding Machine with 4 rings for HDPE Pipe,HDPE pipe Manual butt
fusion welding machine,
This is designed in accordance to the interantional correspondent standards
Application and features
Suitable for welding of plastic pipes and / or fittings made of PE, PP, and PVDF can be operated in any complex work condition.
Consists of basic frame, planing tool, heating plate and support for planing tool and heating plate.
Removable PTFE coated heating plate with separate temperature control system
Electric planing tool
Be made of lightweight and high strength material; simple structure, small and delicate, user friendly
Model | SHDS160 |
Pipe sizes (mm) | 50,63,75,90,110,125,140,160 |
Heating Plate Max. Temp. | 270°c |
Temp. deviation in surface (170~250) | ±10°c |
Working Voltage | 220V,50Hz |
Heating Plate Power | 1.0 KW |
Planing Tool Motor Power | 0.7 KW |
Total Power | 1.7 KW |
Weight | 57Kg |
Packing Dimension | 680×520×510 500×470×620 |
Four circles -hand wheel
Four circles -hand push
cirlces-hand push
Our company ROTHENBERGER (Wuxi) Pipe Technologies Co., Ltd. is the leader manufacturer of buttfusion equipment in China. We occupy the 70% domestic market and export to more than 45 countries. We specialize in producing a complete range of international standard butt fusion equipment includingfield welding machine, workshop fitting machine, pipe saw, all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.
