3d printer filament extruder

Product Overview

Description

Application of ABS/PLA Plastic Filament Extruding Machine :



3D abs,pla filament & typing Strips mainly used for 3D Printer.

The main products of the ABS,PLA Filament Extruder: 1.75mm ABS/ PLA 3D Filament & Typing Strips.





2. Work Flow of the ABS/PLA Plastic Filament Extruding Machine  :

SJ45 Single Screw Extruder with Die Head→Stainless Steel Water Cooling Trough→Laser Online→Haul-off Unit→Double-Station Winder→Packing



3.Main Equipment of the ABS/PLA Filament Extruder:



No.	Items	Specification	Qty
	HX-45 3D Filament Extruder	ABS/PLA 1.75mm, 3.0mm	1 set
2.1	Stainless steel hopper	Stainless steel	1 set
2.2	45 single screw extruder	Φ45*28D	1set
2.3	Die Head	1.75mm,3.0mm	1set
2.4	Stainless steel water cooling trough	3m	1set
2.5	Laser online		1set
2.6	Haul-off Unit	Four-roll	1set
2.7	Double-station Winder	standard	1set











































4 Technical parameters of  ABS/PLA Plastic Filament Extruding Machine:



Model No.	Pipe size	Screw size	Screw L/D	Total Power	Output Capacity
HX-35	0.5-3mm	35mm	25-28	28kw	15kg
HX-45	1-5mm	45mm	25-28	35kw	20kg

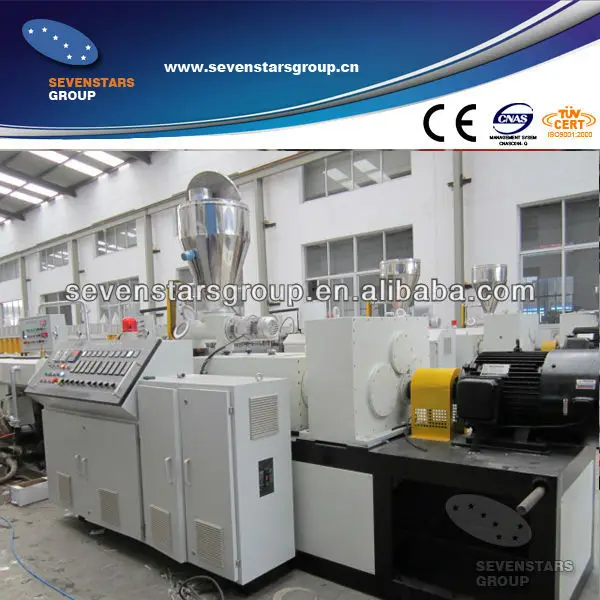

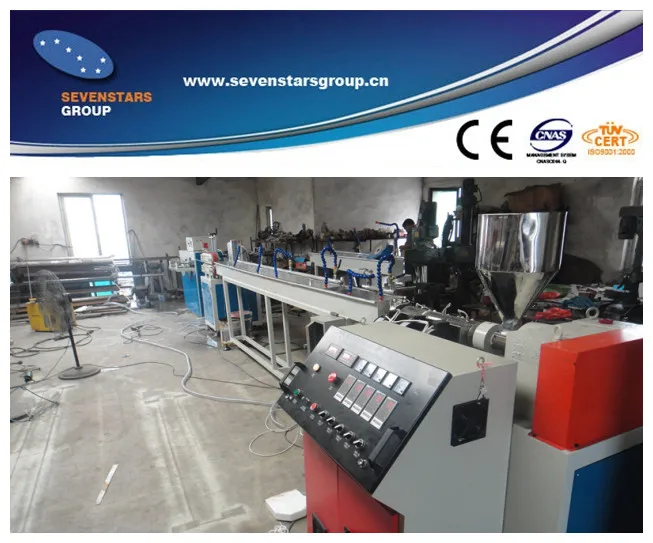

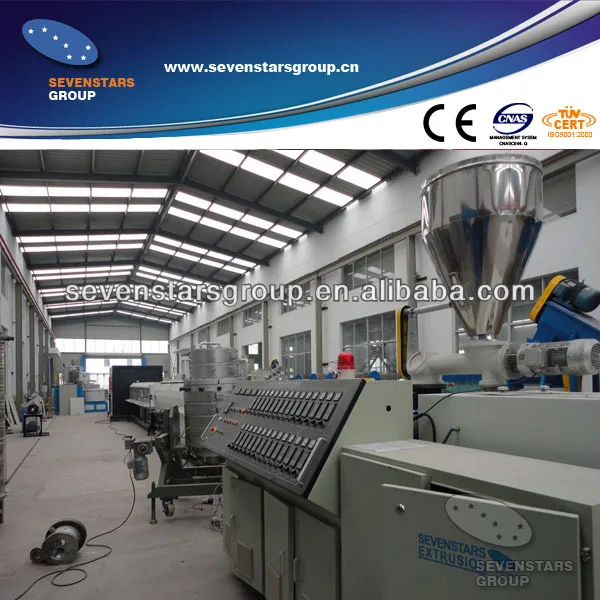

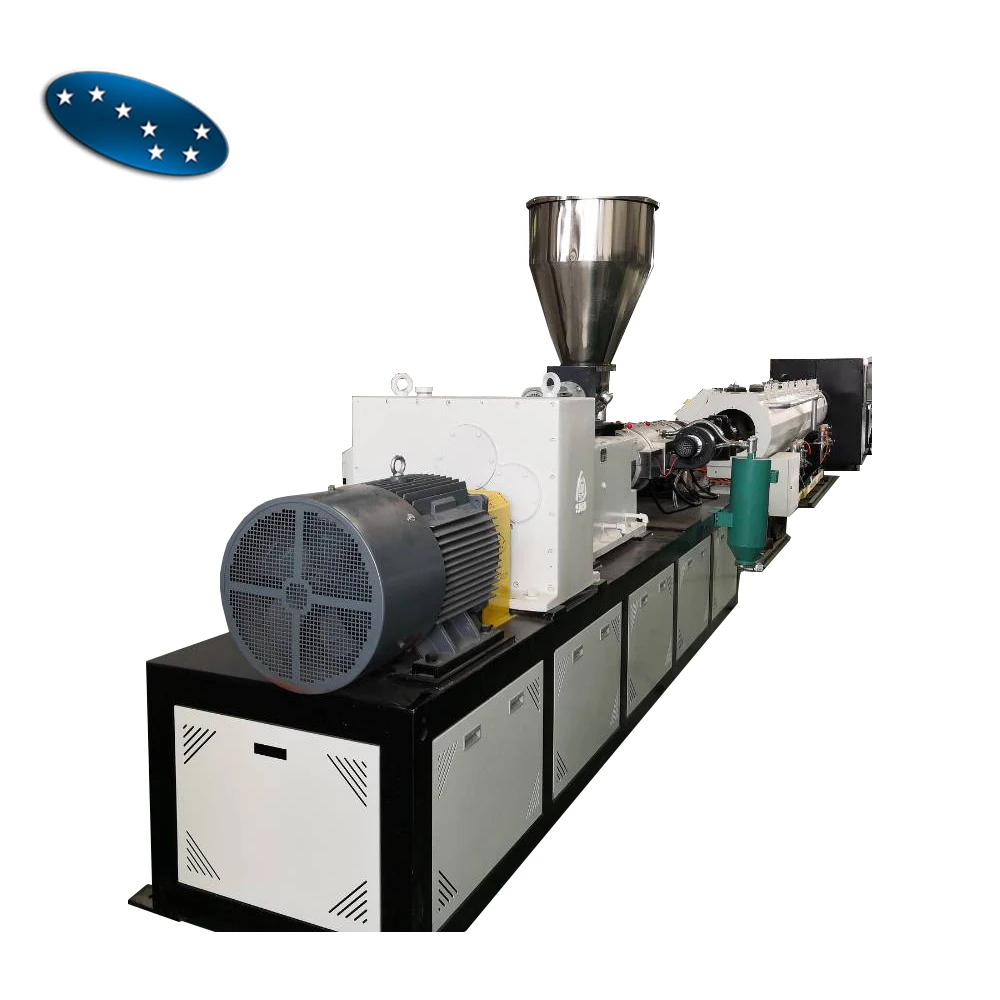

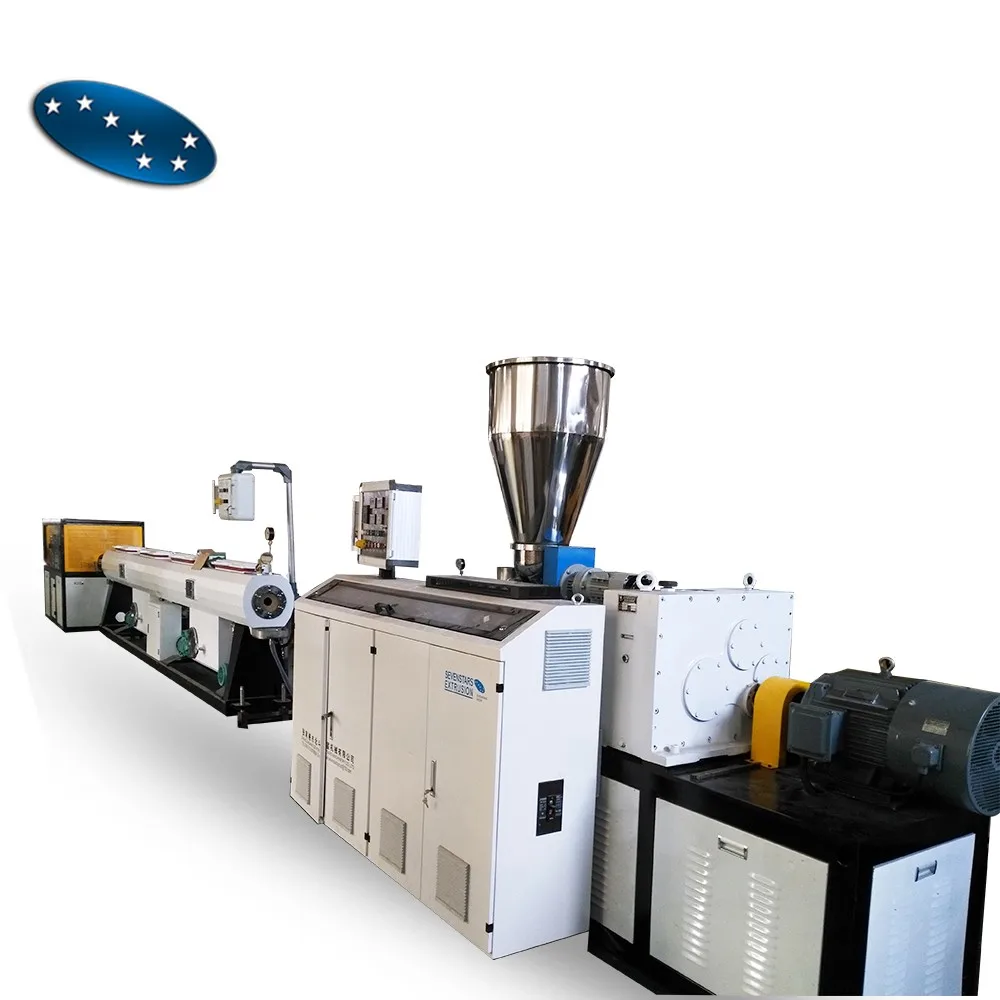

5. Picture Show of  ABS/PLA Plastic Filament Extruding Machine :
