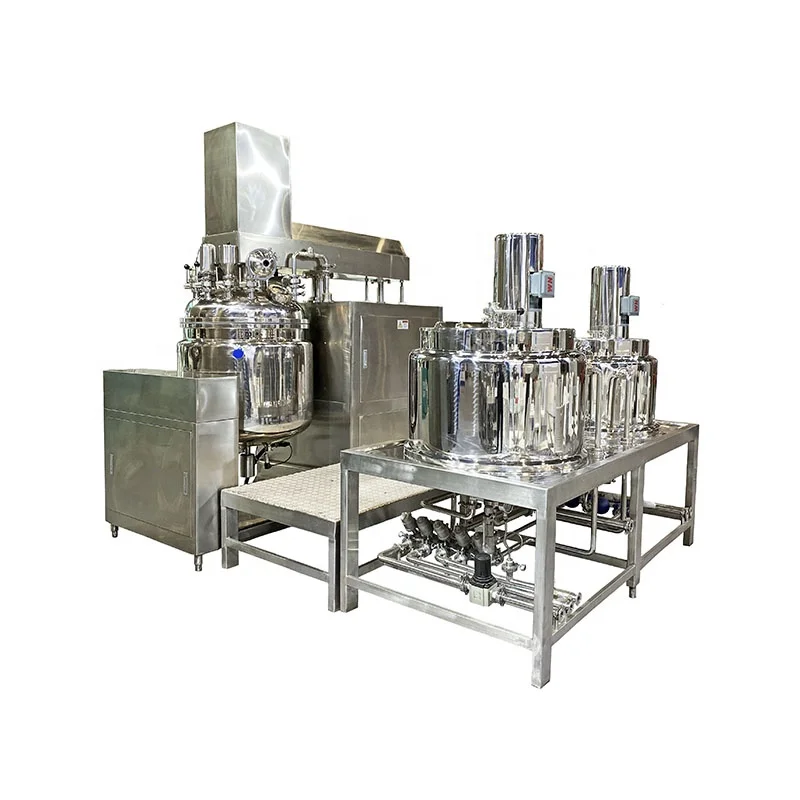

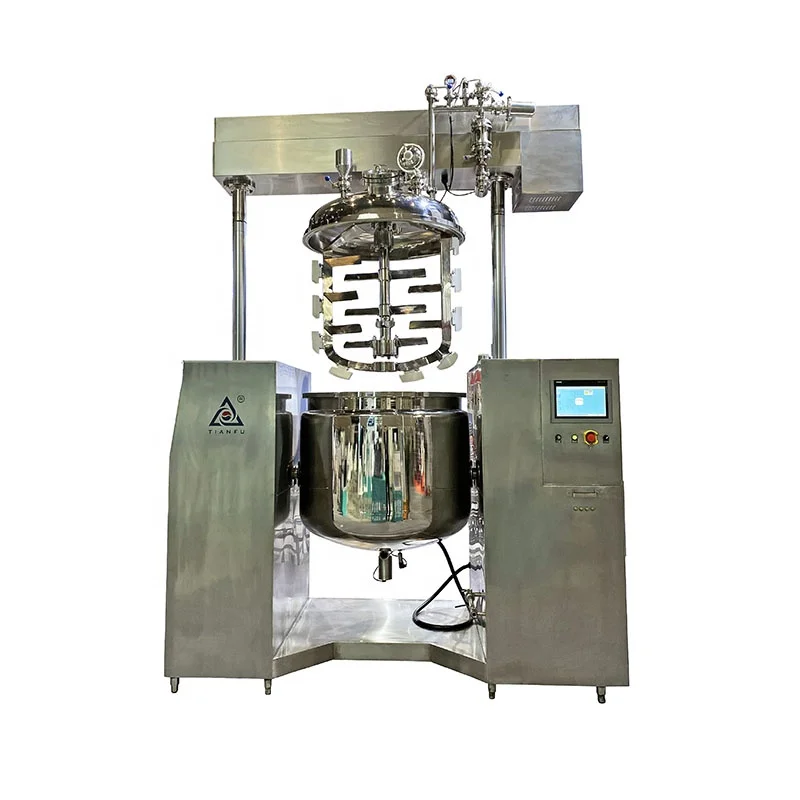

TFZRJ-100L Vacuum emulsifier is a coaxial mixer of triple type, which is used for stable homogenizing and emulsifying with refined granules. The quality of emulsification is depending on the dispersion of granules at the stage of preparation. The smaller the granules are, the weaker the surface aggregation will be, so the damage chance of the emulsifying will be less. The homogenizer will achieve high-quality emulsifying mixing effect depending on the hybrid actions of reversing impellers under the vacuum condition of treatment. TFZRJ series of turbine emulsifying machine have a good performance on quality guarantee of finished products.
Capacity:
100L
Heating:
By electricity or steam
Material:
SUS316L/304
Control:
By PLC or button
Working:
Vacuum/Atmospheric
Application:
Cosmetics, Pharmaceuticals, Daily chemicals, Food & Beverage etc.

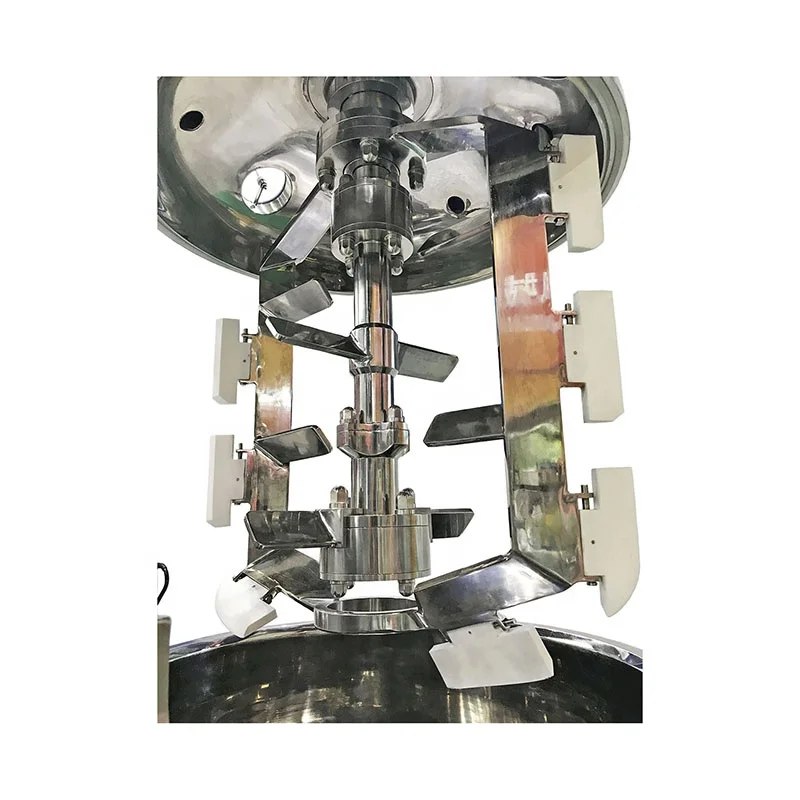

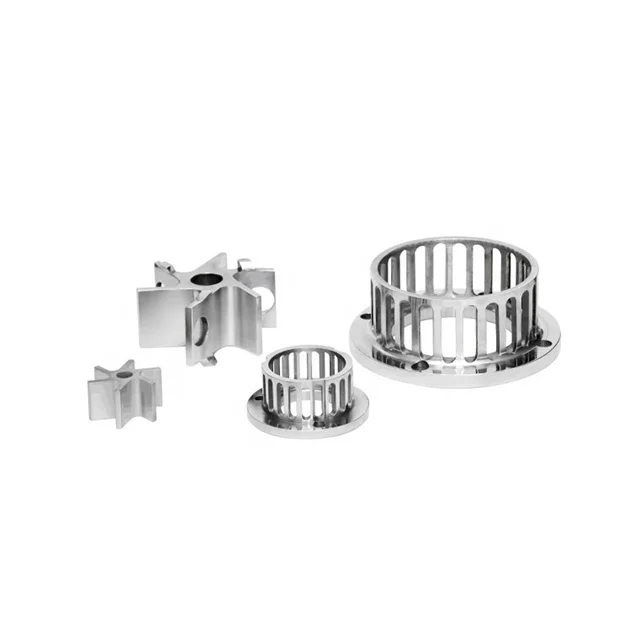

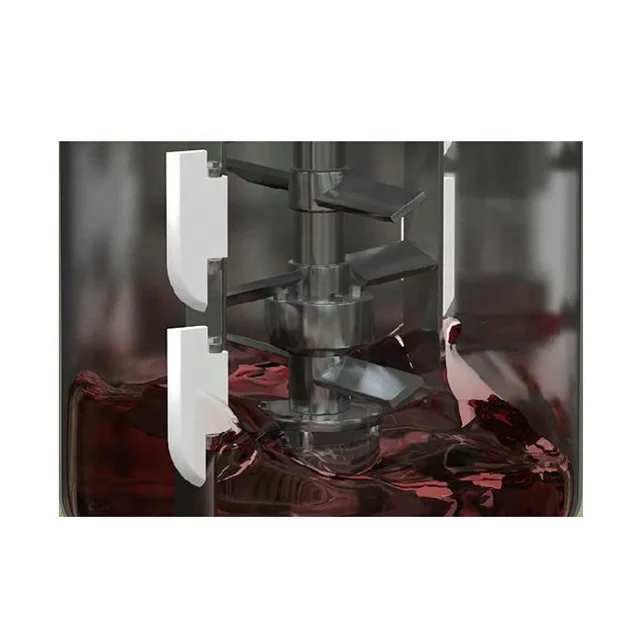

Mixing system
3 mixers:
High speed: 0-3500 rpm
Low-speed: 0-40rpm
Scraping: 0-60rpm
Control System:
3.5.1 PLC is TP1200 series from Siemens, Germany 3.5.2 Touch screen is TP1200 or smart Siemens Company 3.5.3 Mixing speed can be adjusted and displayed on the touch screen, as well as temperature display of each pot, high and low temperature limitation setting, controlling of automatic valve, setting of Emulsifying time and slow speed emulsifying mixing time, Controlling function of hydraulic lifting system etc., all these functions can be operated through touch screen.
Size Information
Size Chart of This Design
Capacity
50L
100L
1000L
3000L
OEM size
