New design CNC pipe bender with CE certificate
- Category: Pipe and Tube Bending Machines >>>
- Supplier: Zhangjiagang Minghua Machinery Manufacture Co. Ltd.
Share on (209859790):
Product Overview
Description

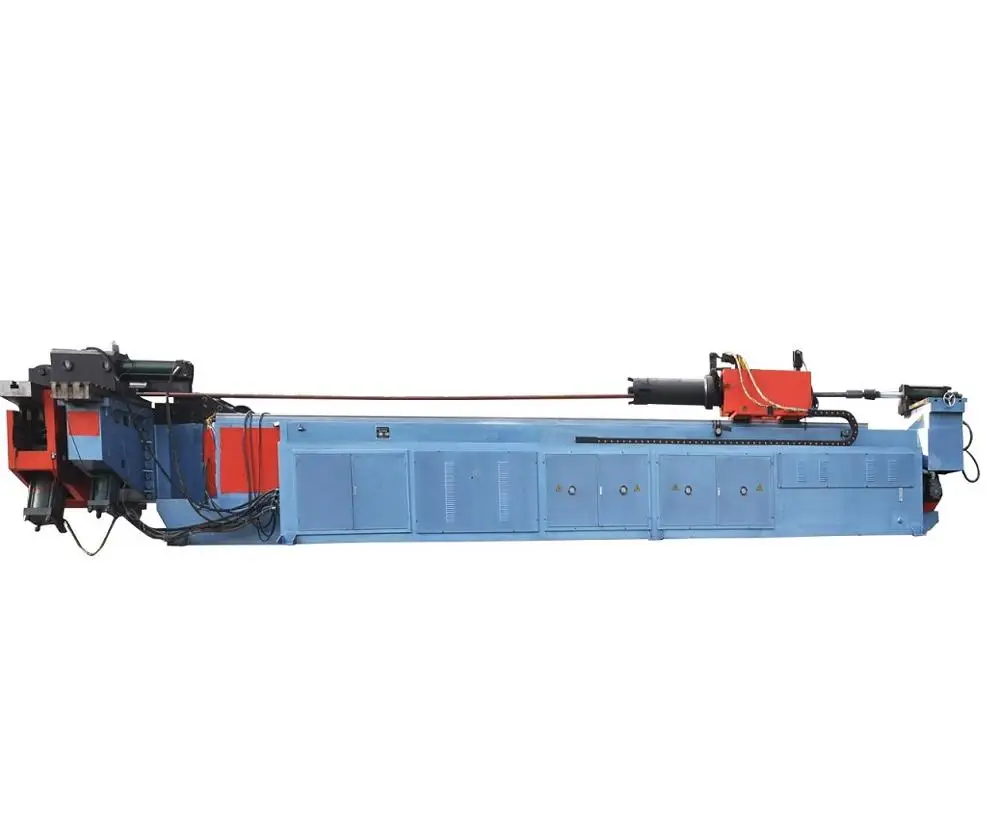

DW189CNC pipe bender
- Automatic recognition of power in machine and work piece, the processing is both quick and good
- Slow returning core, boosted by barrow, imporving the apprearance of the angle.
- The whole operation is in the computer, simple, quick and correct
- Picturized programming system: draw and modify on the stereo pipe image on the screen, makes the operation simple, quick and correct
- Rebound test: comparison test on the features of lots of pipe materials
- Single-step debugging function- a careful observe on the deformation of the pipe material during the trail manufacture of dies.
- Automatic drawing of the graphics of dies-clear help to develop new products
- Over-all inspection: hydraulic/electrical circuit/ driving systems, adsence of phase in motors/inversion, voltage, temperature, oil pressure, and automatically diagnose the troubles
- passwords, keys, working hours/ recordings of quantities, are applied to management of production.
Technical parameters:
| Specification/Model | DW189CNCX2A-1S | Remark | |
| Max bending capability | Φ189mm×14mm | 1. The Minimum bending diameter of CNC pipe bending machine based onthe pipe diameter. 2.The Max bending diameter of CNC pipe bending machine can accordingto the customers requirement 3.The Max length of mandrel of CNC pipe bending machine can according to customers requirement. | |
| Max bending radius | R600mm | ||
| Min bending radius | R80mm | ||
| Max bending angle | 190° | ||
| Max feeding length | 4000mm | ||
| feeding method | direct feeding clamping feeding | ||
| Working speed | Bending speed | Max 20°/s | |
| Rotary speed | Max 160°/s | ||
| Feeding speed | Max 600mm/s | ||
| Working accuracy | Bending accuracy | ±0.15° | |
| Rotary accuracy | ±0.1° | ||
| Feeding accuracy | ±0.1mm | ||
| Information inputting method | 1. axisX . Y. Z 2.working valueY. B. C | ||
| Bending method | Hydraulic bending | ||
| Power of rotary servo motor | 5kw | ||
| Power of feeding servo motor | 7.5kw | ||
| Max bending groups | 1. 12 2. 33 | ||
| Max storing components | 1. 330 2. 125 | ||
| Motor power | 30kw | ||
| Oil pressure | 14Mpa | ||
| Size | 8500 x 2000 x 1700mm | ||
| Weight | 15000kg | ||
