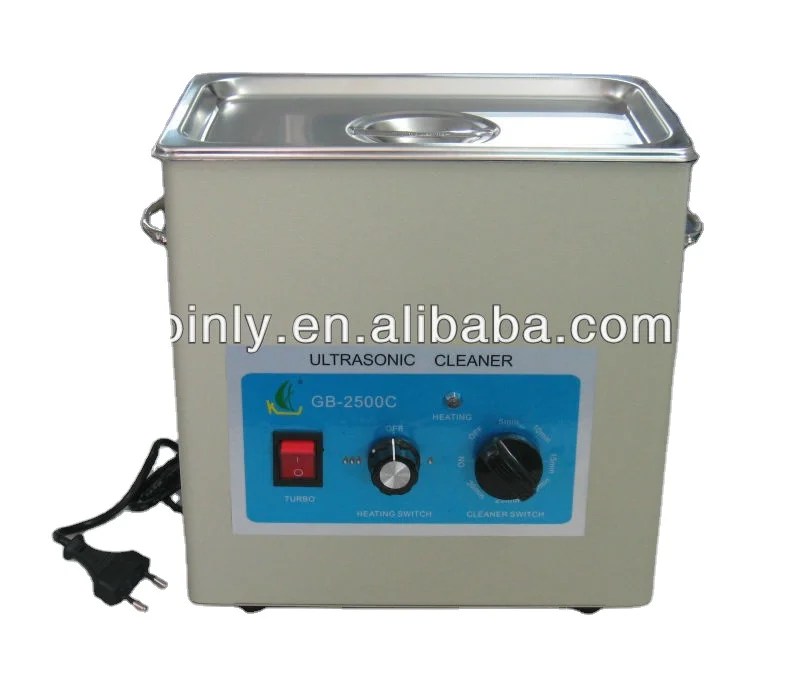

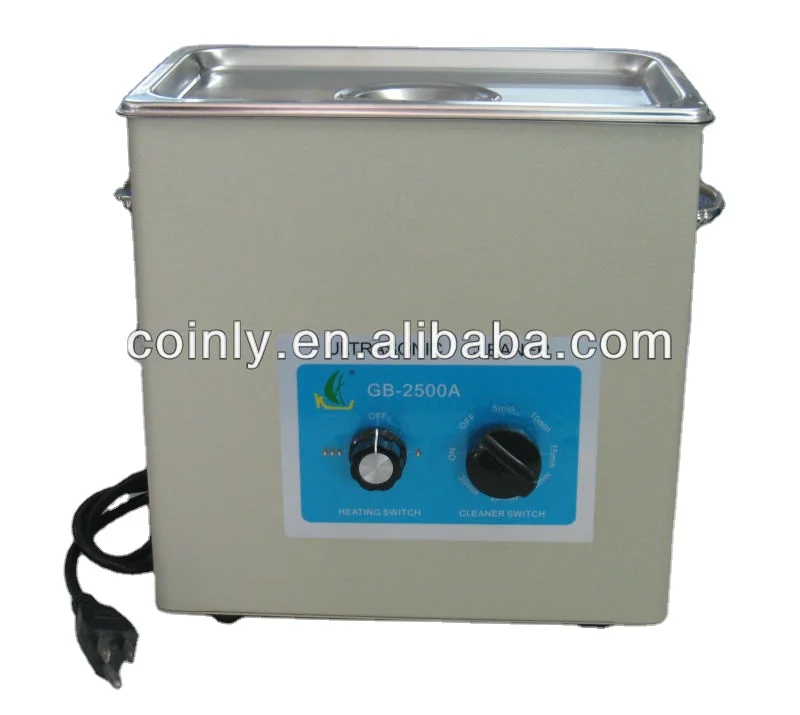

Commercial Digital Heated Stainless Steel Ultrasonic Cleaner GB-1000 SERIES are mainly used in laboratory, stores and the industrial small batch operations for cleaning of clockworks, glasses, jewellery, electronics, hardware, plastic ceramic parts, etc..
Incorporation of ultrasonic generator and cleaning tank, compact construction, resistance of acid and alkali, handsome and practical.
Cleaning time and heater controlled by computer, it can be set optional.
Digital display, visual representation and easy operation.
Sealed housing, resistance of water and humidity.
Model
Specification
GB-800B
GB-1300
GB-1500B
GB-2500B
GB-5000B
GB-10LB
GB-15LB
Ultrasonic Power
50W ± 10%
50W ± 10%
50W ± 10%
120W ± 20W
140W ± 20W
220W ± 20W
300W ± 20W
Ultrasonic Frequency
38KHz ± 10%
38KHz ± 10%
38KHz ± 10%
38KHz ± 10%
38KHz ± 10%
38KHz ± 10%
38KHz ± 10%
Heated Power
100W ± 10%
100W ± 10%
100W ± 10%
200W ± 10%
200W ± 10%
200W ± 10%
300W ± 10%
Tank Size(mm)
(length×width×height)
165×140×40
165×140×65
165×140×75
245×140×95
280×190×110
300×240×150
330×300×150
Product Size(mm)
(length×width×height)
190×170×210
190×170×230
190×170×230
310×180×270
370×230×280
400×280×320
440×350×330
Capacity(ml)
800
1300
1500
2500
5000
10000
10000
Model
Specification
GB-800
GB-1300
GB-1500
GB-2500
GB-5000
GB-10L
GB-15L
Ultrasonic Power
50W ± 10%
50W ± 10%
50W ± 10%
120W ± 20W
140W ± 20W
220W ± 20W
300W ± 20W
Ultrasonic Frequency
38KHz ± 10%
38KHz ± 10%
38KHz ± 10%
38KHz ± 10%
38KHz ± 10%
38KHz ± 10%
38KHz ± 10%
Tank Size(mm)
(length×width×height)
165×140×40
165×140×65
165×140×75
245×140×95
280×190×110
300×240×150
330×300×150
Product Size(mm)
(length×width×height)
190×170×210
190×170×230
190×170×230
310×180×270
370×230×280
400×280×320
440×350×330
Capacity(ml)
800
1300
1500
2500
5000
10000
10000
