Ultrasonic Aircraft Wheel / Tyre Cleaning Machine With Electric Lifting (62204253986)

Share on (62204253986):


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

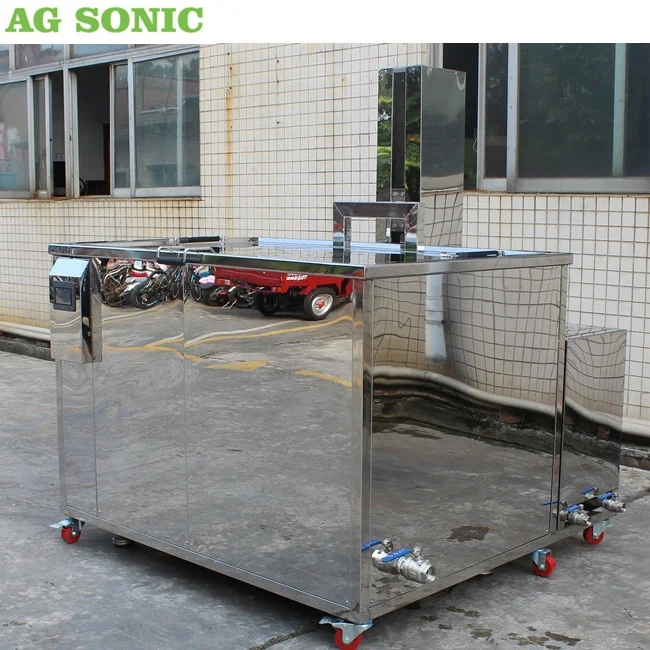

Ultrasonic Aircraft Wheel / Tyre Cleaning Machine With Electric Lifting


industrial ultrasonic cleaner


industrial ultrasonic cleaner is robust and reliable, delivering effective cleaning results for all manufacturing, processing and maintenance applications.


This ultrasonic cleaner can process multiple parts in one cycle, removing contaminants from crevices and other hard to reach areas thoroughly and quickly. The improved cleaning results reduce the need for re-cleans or rejects, increasing throughput and cleaning quality of your components whilst the simple one-button-press operation allows the operator to process other tasks during the cleaning cycle.




Ultrasonic cleaning is a water based cleaning solution where ultrasonic transducers are used to provide cavitation agigation insude the tank which has waer and suitable chemical to clean oil,dirt,debree,grease and other contaminants from various types of auto components.
We expertise in all types of ancilary parts washing like brakepads, steering coloumns, crank shats, pistons, valves, gaskets, clutch pads, mirrors and many more.
Features of the machine:
•Low maintainence machine
•Heavy duty cleaning systems
•Chemical friendly- SS Rust proof body
•Industrial guage farication, build to last
•One year warrenty on any manufacturing defect
•Completely customized to suit the cleaning requirement
•Less human interfearance and less scope of error
•Accurate and uniform cleaning everytime








Ultras Wave Explanation


Pressure waves generated by high-frequency sound waves create micron-size bubbles in the aqueous cleaning solution. This bubble is shown just before implosion, which releases a tremendous amount of energy for cleaning





What can be cleaned by Ultrasonic ?


Ultrasonic cleaning involves the use of high-frequency sound waves (above the upper range of human hearing, ) to remove a variety of contaminants from parts immersed in aqueous media. The contamination can be dirt, oil, grease, buffing/polishing compounds and mold release agents, just to name a few. Materials that can be cleaned include metals, glass, ceramics and so on. Ultrasonic agitation can be used with a variety of cleaning agents.





01: Introduction for Ultrasonic cleaner


Ultrasonic cleaning is a technology that uses high frequency sound waves (ultrasonic: above the range of human hearing) to agitate an aqueous or organic medium (cleaning chemistry) that in turn acts on contaminations adhering to substrates like metals, plastics, glass, rubber and ceramics. Contaminants can be dust, dirty, oil, pigments, grease, polishing compounds, flux agents, fingerprints, soot wax and mold release agents, biological soil like blood, and so on





01: Application of indutrial ultrasonic cleaner


Ultrasonic cleaning can be used for many applications, including plastic parts, bearing, bolts, rubber parts, internal parts, plastic injection molds, transmission parts, and final cleaning of all engine parts prior to assembly, the versatility of ultrasonic cleaning machine make them the perfect choice for automotive, medical, pharmaceutical, aerospace, engineering and many other industries


Specifications Of wheel hub Tyre ultrasonic cleaner:
































































Ultrasonic tank size
Length* width* depth900*560*900mm
Capacity453.6liters
Competitive AdvantageWith pneumatic lift
Generator3 set
Suitable tyre sizeDiameter:500-800 mm Witdth:135-350mm
MaterialStainless steel 304/316L
Ultrasonic power4.5KW
Heating power12 KW
Timer1~30min adjustable
Heater20~80C adjustable
ultrasonic frequency28/40khz
voltageAC220/380/415V, 50/60Hz
casters4 casters with braker
transducer head90pcs




Features:



  1. With digital control panel-high technology ,eay to handle ,

  2. With Motor Rotation system –tyre and rim cab be rotated when ultrasonic cleaning

  3. With pneumatic chuck –can be hang on different size of car tyre

  4. With pneumatic lift-tyre can automatically up and down in the tank

  5. With Drainage-easy for waste water flow away

  6. With casters-easy to move


 Wheel /Tyre Industrial Cleaning Machaine enough for most vertical blinds as well


 2 Separate Tanks - one for cleaning and one for rinsing


3 Drain Pipes - one for each tank


4.Industrial-Grade Transducers: very reliable, efficient, and powerful


5.Durable Stainless Steel Tank


6.Digital Timer for Controlling the Ultrasonic Power


7.Temperature-Controlled Heating


8.Sturdy Casters for Easy Transporting


9.1 Year Warranty


10. ultrasonic wave generator control


Competitive Advantage:


Tyre ultrasonic Cleaner With pneumatic lift ,tyre can automatically up and down ,capable to make tyre cleaning 360 circle


Indutrial Ultrasonic Cleaner Application:














Automotive,


motorcycle, aircraft


To remove oil, grease, preservative, plastic residue left during mechanical cutting, grinding abrasive, glass fiber, dust, graphite and tar from Automotive air valve, glow plug, gasification plug, fuel pump, piston ring, battery terminal, machine control hand-wheel, motorcycleair-valve,etc.
Armurerie

weapons cleaning, such as guns, rifle, bullets , handcuffs, etc.


--For cleaning and lubrication.



What ultraosnic can do ?
Ultrasonic cleaners remove dirt, oils, lubricants, carbon, rust,and other types of grime that build up on engines and mechanical parts. Grooves, internal passageways, seals, and other hard to reach areas are cleaned easily, eliminating hours of disassembling and reassembling complex parts. Carburetors, pistons, cylinder heads, aluminum parts, and brake calipers are a few examples of components that are cleaned thoroughly with no manual scrubbing in an ultrasonic cleaner





It’s efficient, clean, green and cost-effective.
Most importantly, it works.
A powerful cleaning solution is now as simple as soap, water and some mighty little bubbles.
Ultrasonic cleaning technology is fast, gentle and extremely powerful. It uses microscopic cavitation bubbles and specially
formulated eco-friendly solutions to search every crease and crevice and eliminate even stubborn or difficult-to-reach contaminants, including grease, dirt, hydrocarbons, metal
shavings, buffing/polishing compounds, carbon deposits, mold release and more.


Benefits of ultrasonics for Engine Block :
Cleans delicate parts without damage
Cleans cracks and crevices that would be difficult to reach with the hand
Does not require line-of-sight for effective cleaning
Doesn’t use harsh chemical solvents that are dangerous for workers and the environment
Safe for aluminum, magnesium and zinc
Biodegradable cleaner
Clean multiple pieces at once without having to brush by hand – saves time and money


AG ultrasonic cleaning machine effectively and thoroughly clean all types of engine block Cleaning





Mainly application:
Applied for ultrasonic cleaning of engine parts, block,Semiconductor wafer, optical glass, clocks, beads and any other plastic, metal parts, anyway, the cleaning parts can immerse into the water without damage





 Engine Parts Cleaning, Car Engine Parts Cleaning, Truck Engine Parts Cleaning, Motor Bike Engine Parts Cleaning.
AGSONIC specialising in providing Ultrasonic cleaning services and products to the industrial sector utilising the latest ultrasonic cleaning technology.
The Engine Parts division specialises in the Ultrasonic Cleaning of Engine Parts, Car engine parts, Truck engine parts and Motor bike engine parts to both trade customers and individuals throughout the World.
Our Ultrasonic cleaning process, can effectively clean the following components- Aluminum castings, engine blocks, Carburetors, Cylinder Heads, Engines, Engine Components, Gear Boxes, Filters, Tubes and Valves.





How to use :
Fill with water in the ultrasonic tank, add some detergent as directions.
Set up time and tempeature;



Why Use Cylinder Head Engine Block Cleaning ?
Agsonics is renowned for their professional cleaning service to the motor industry.


How does ultrasonic cleaner technology clean?


Cavitation bubbles are vacuum cavities as tiny as red blood cells, or about 8 thousandths of a millimeter across. They are so small that it would take 1,250 of them lined up in a row to reach 1 cm long.


Under pressure of continuous vibration, these bubbles stretch and compress at a fast rate. Once they reach a certain size, as determined by the frequency and strength of the sound waves produced, the bubbles lose structural integrity and collapse violently. When these implosions happen near a surface, the bubbles emit high-powered streams of plasma that travel at more than 500 miles per hour and collide with, agitate and remove even very tiny particles and substances from that surface.

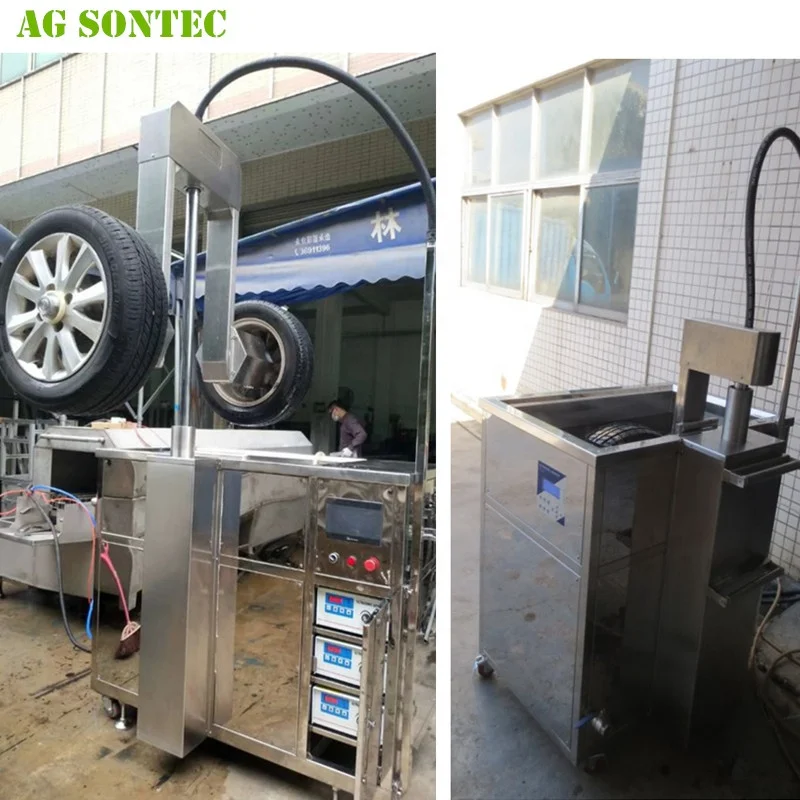

wheel cleaning agsonic_.jpg

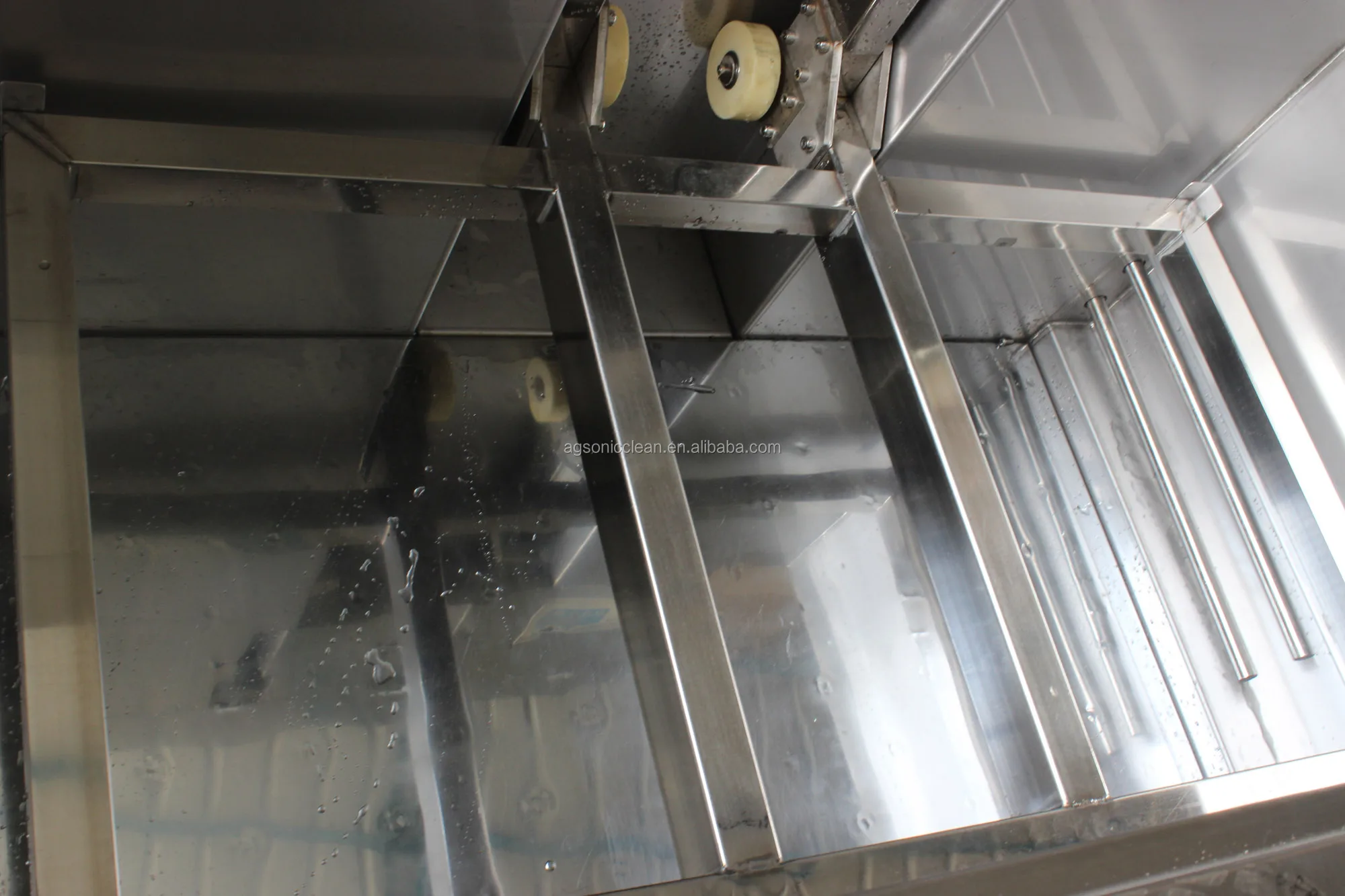

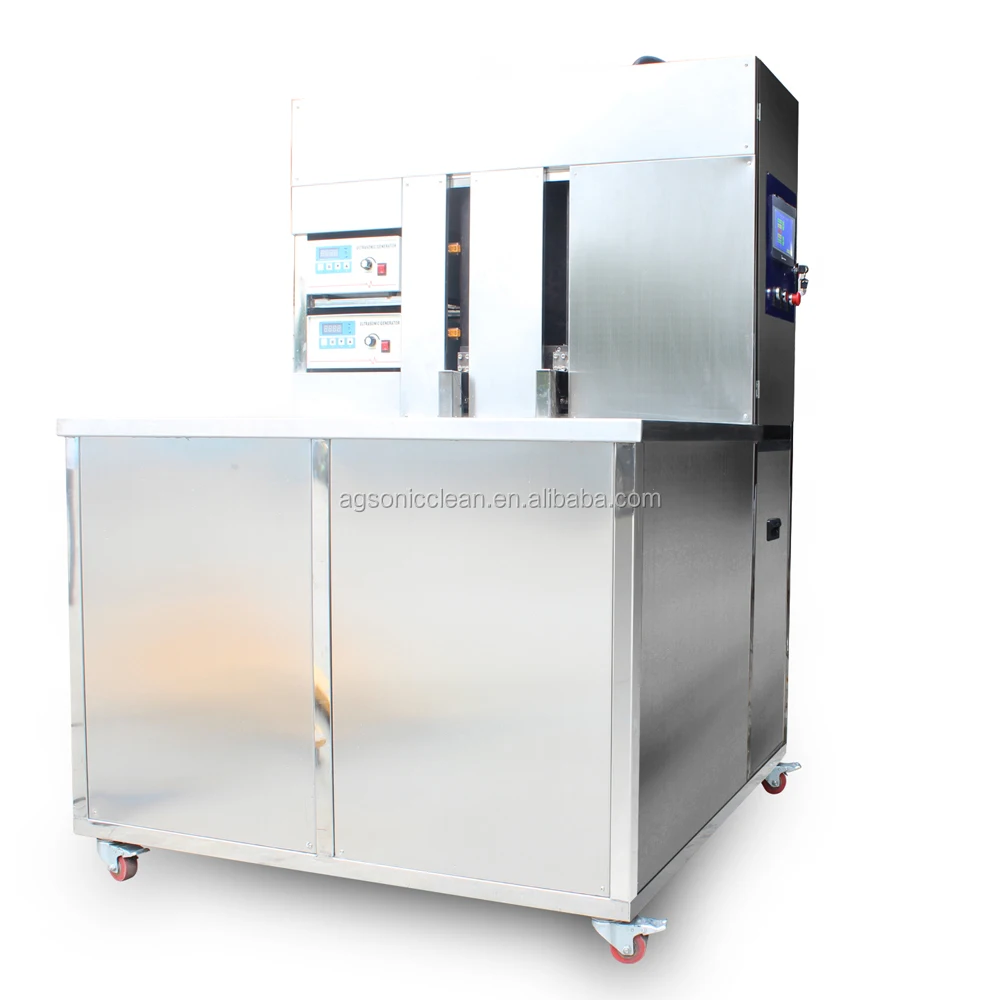

1000-5.jpgIMG_9119.JPGIMG_91162000.jpgdetails 1.jpgdetails 2.jpg





Packaging & Shipping


 packing process.png





Our Services


Supply high quality product
Provide OEM&ODM service
One Year Warranty
24/7 response.
Technical support for all time.
Professional suggestion for your cleaning job.
Full inspection for every product we made.








Company Information


1. AG SONIC technology limited, which engaged in ultrasonic cleaner field for more than 10 years. And the main products are ultrasonic cleaner with different capacity.


AGSONIC  has been manufacturing ultrasonic parts cleaners for years, providing manufacturers with the highest-quality systems available.  We are dedicated to manufacturing systems of many types and styles which include small table-top systems, large single-tank systems for injection molds are other large parts, strip and metal tape washers, aerospace parts washers, multi-stage machines which include cleaning, rinsing, and drying, automation systems, and custom equipment designed specifically for your needs.  If you are in need of an ultrasonic cleaner, you will find what you are looking for at AGSONIC .


---_01








FAQ


When should you consider adding ultrasonics to a cleaning process?


Usually, the answer is whenever parts are not getting clean enough using the current method. Ultrasonics become a viable purchase when cleaning issues are negatively impacting productivity, quality and/or the bottom line. Effective cleaning with ultrasonics has been proven in a wide range of industries ranging from microscopic medical devices to reconditioned locomotive shafts, from aerospace parts to parts prior to coating, and more.


Ultrasonics can be included in a new cleaning process or sometimes can be retrofitted into an existing process. In many cases, rejects due to residue on parts can be virtually eliminated with the addition of ultrasonics into clean and/or rinse stations in a properly-configured parts cleaning line.








Best Ultrasonic Cleaners for Auto Parts And Car Engine
Ultrasonic cleaner for engine parts are available in different size and versions that are suitable for the variety of needs – including the clean up of your car engine parts.
Here we provide our best reviews on top selling ultrasonic cleaners for car engine parts. Just check them out and get one as per your requirement.





For effective cleaning the ultrasonic cleaning machine must use the right of cleaning chemistry,operate at the right temperature and use the correct frequency, the part to be cleaned the contaminant to be removed and the degree of soil, determine this, our years of experience advising manufacturing and maintenance clients on the right process for their cleaning needs help us identify the exact product combo that you need, just send AG SONIC email or call us, and we’ll guide you to the right solution quickly





Ultrasonic technology uses absolutely no harmful chemicals.
No fumes. No strong odors. No dangerous or expensive chemical disposal. Reduced risk.
The technology is remarkable, but the process is easy. More efficient and effective than chemical processes, the machines are as simple to use as a dishwasher, with no hand labor or supervision necessary.



How do ultrasonic machines work?
Ultrasonic tanks generate high frequency sound waves through the use of transducers and electronic ultrasonic wave generators. Typical transducers are made from piezoelectric crystals which convert electrical energy into mechanical / sound wave energy because piezoelectric crystals change geometric size when electrical voltage is applied.


Types of transducers


There are two types of transducers: magnetostrictive and piezoelectric.


Magnetostrictive transducers operate on the principle that iron-rich metals expand and contract when placed in a magnetic field. It is this expansion and contraction that causes the canister in the device to resonate and generate ultrasonic waves.


Piezoelectric transducers use crystals with electrical properties. The crystals change shape when electricity is passed through them and then resume their original shape when the system is switched off. The resulting vibration makes waves that generate ultrasonic energy.


Ultrasonic cleaning applications


Ultrasonic cleaners can also be customized to suit the specific needs of a factory, hospital or other businesses. With thousands of commercial and industrial cleaning applications, ultrasonic cleaning is widely used across many industries. Ultrasonic cleaners are tailored to the types of parts that they are cleaning. Table top and bench top cleaners, for example, are best for cleaning small or delicate parts like bearings, surgical instruments, optical parts, machined parts, small gears and carburetor components. Precision cleaning is used for cleaning and restoring delicate items that may have been damaged by traditional cleaning methods.


Benefits of ultrasonic cleaning


Ultrasonic cleaning saves time and money:


· up to twenty parts can be cleaned at one time


· technology is simple to use and only requires one operator


· life of parts is extended due to gentle cleaning


· highly effective cleaning means all contaminants are removed in first round
