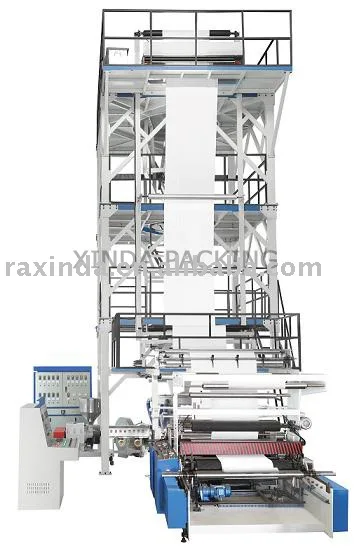

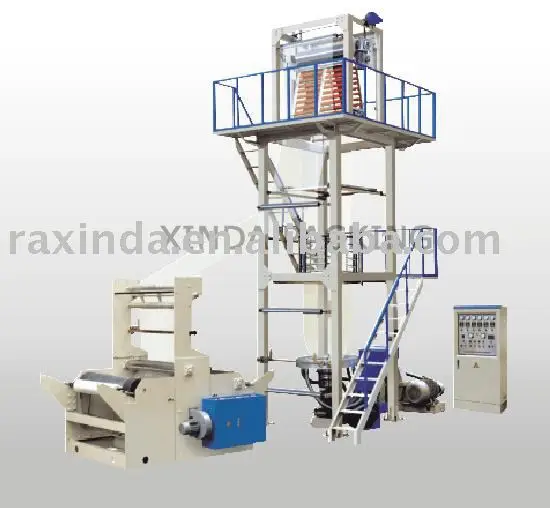

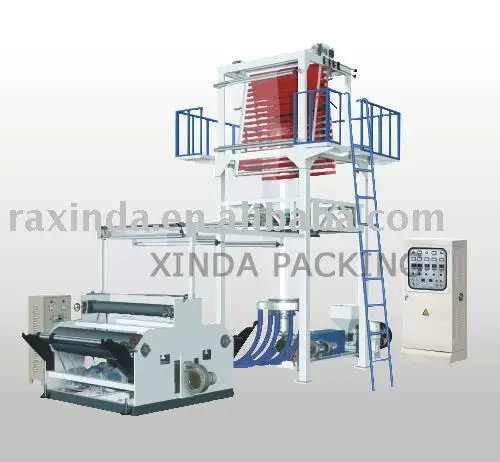

HDPE LDPE Film Blowing Machine

Product Overview

Description

High Speed Plastic Bag Film Blowing Machine

          It is extruder, cylinder and screw rods are made of quality alloy steel that have been ammoniated and processed in a precision way. Hence it is sound in hardness,durable in corrosion resistance. The specially designed screw is of sound quality in plasticizing which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene(LDPE), high density polytene(HDPE) and linear low density polytene(LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing rubbish bag and vest ones.

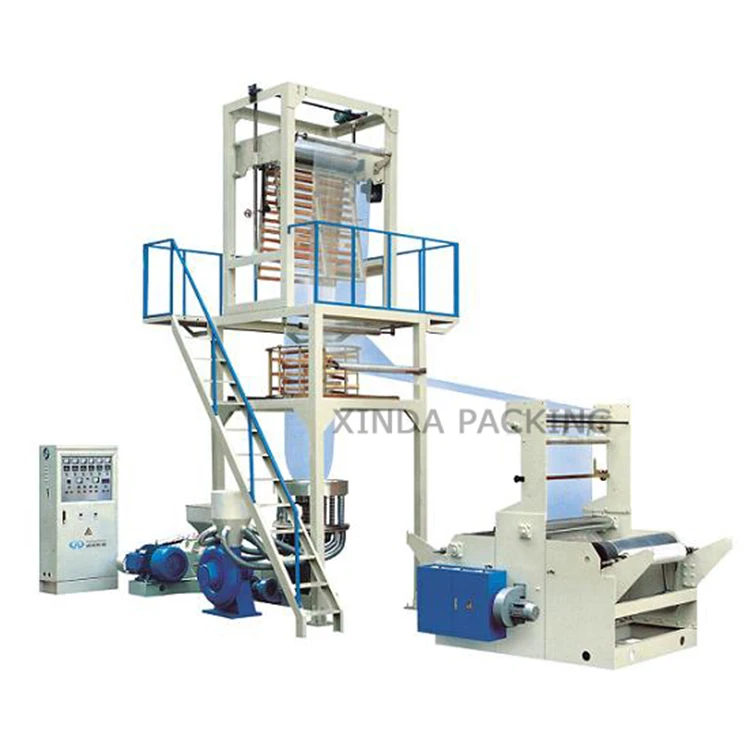

Model	XD-50/FM600	XD-55/FM800	XD-60/FM1000
Screw Diameter	50mm	55mm	60mm
Screw Ratio	L/D30:1	L/D30:1	L/D30:1
Screw Speed	10-120r/min	10-120r/min	10-120r/min
Power of Main Motor	18.5KW	22KW	30KW
Output	30-60kg/h	40-80kg/h	50-100kg/h
Max. Folding Width of Film	600mm	800mm	1200mm
Single sided Thickness of Film	0.008-0.10mm	0.008-0.10mm	0.008-0.10mm
Total Power	30KW	36KW	42KW
Weight of Machine	2600kg	3000kg	3500kg
Overall Dimensions	4600*2600*4000mm	4800*2800*4300mm	5000*3000*4800mm

Optional devices(you can choose according to your requirement):

1.Corona treater

2.Auto loader

3.Rotary Die-head

4.Double winders unit

5.Type of Tower Rise and down freely

6.Pneumatic shaft(cost USD 200/each), double winder need 4pcs, single winder need 2 pcs

7.Air pump

8.Mechanic Screen Changer, one is manual fast screen changer(cost USD 800),

   the other one is hydraulic fast screen changer

9.Border folding machine



Guarantee period and maintenance:

        Seller guarantees that the equipment is accordance with the function and requirement without manufacturing defects. The guarantee period is one year after the installation and adjustment.Buyer is responsible for the costs including maintenance and spare parts if the equipment damage is caused by the buyer’s improper use, not caused by the seller’s design and manufacturing.
         If the buyer needs seller to send an engineer the installation and training.The buyer should cover the all of expense for the seller’s engineers, such as, air-tickets, visa, accommodation and local traffic charges, salary (USD 80/day) in buyer’s side. And the buyer should do his best to cooperate the engineers of sales party in installation, supply the enough labor and tools, necessary accessory with them.

Company Information

          Our company is based on quality and guided by science and technology. We regard internationally advanced level of paper cutters as the code of conduct. In order to meet the rapid development market requirements, we are making innovations to take advantages of ourselves, developing high performance and high quality series of paper cutters that are light, mechanical, electric and hydraulic. Our products are well appreciated by users.



FAQ

Question: Can you design machines according to our request?

Answer: Of course. You can provide your size, color, then we will design for you.



Question: Do you provide after-sale service?

Answer: Sure, it is a must.



Question: How about your machines’ quality?

Answer: Our machines are famous for high quality and reasonable price, I am sure you will be satisfied with them.
