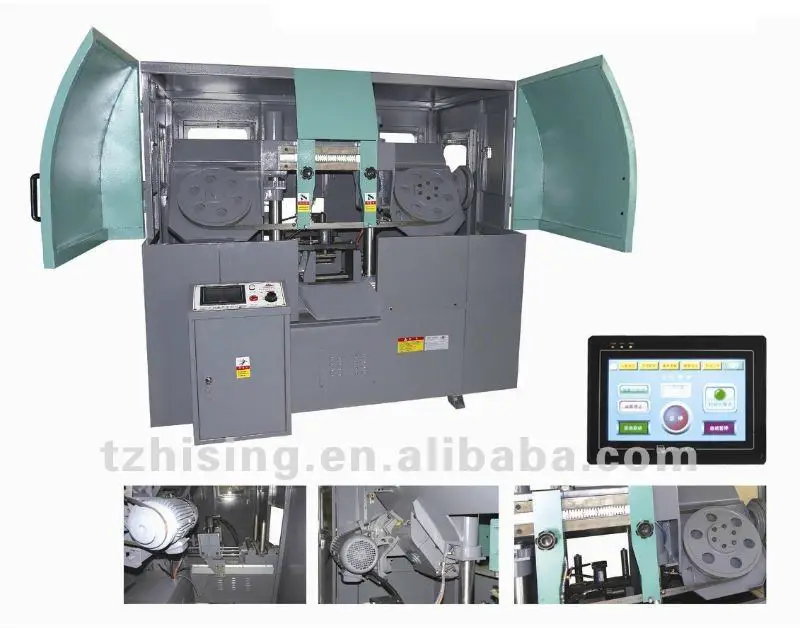

Double Column Horizontal CNC Band Saw

Product Overview

Description

For the specification of the Double Column Horizontal CNC Band Saw, pls see the photo.

1. Touch screen type control panel, sawing parameters set number,it can default 5 groups of sawing process parameters.
2. PLC programmable controller,flexible Settings, change the sawing mode.
3. With double roller bearing and carbide guide guarantee saw cutting precision,and with widening the saw saw extended service life.
4. Stable performance, high efficiency, and is suitable for the batch saw cutting materials.
5. It according to need to configure the bundle saw cutting device.
6. The fully closed structure,the safe operation, beautiful appearance.

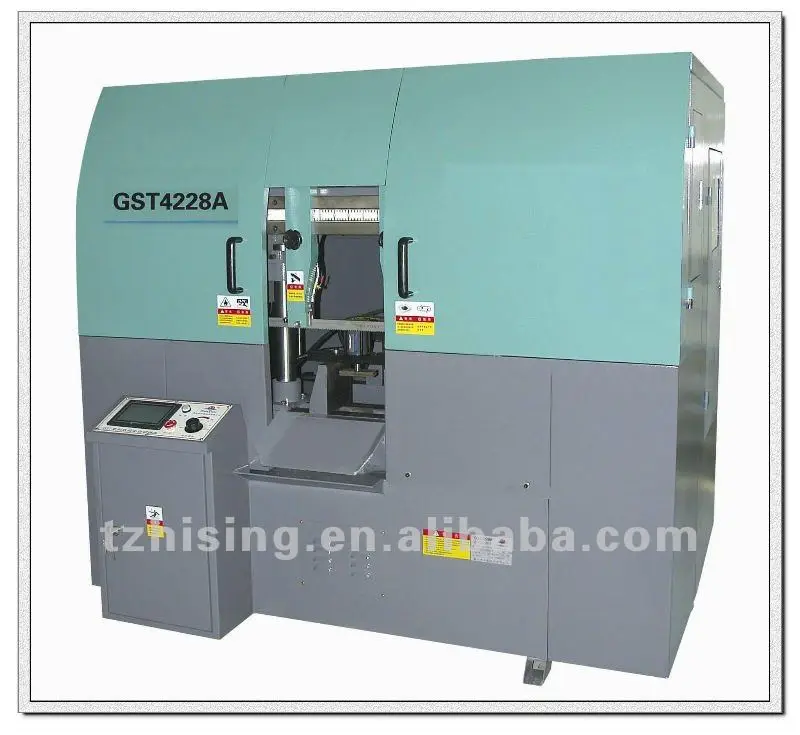

MODEL NO	GST4228A	GST4235A
Cutting capacity	280-280×280	350-350×350
Blade size	3505×34×1.1	4115×34×1.1
Blade speed	27,45,69	27,45,69
Clamping type	Hydraulic	Hydraulic
Main motor power	3	3
Motor hydraulic	0.75	0.75
Coolant pump	0.04	0.04
Overall dimension	2100×1800×1900	2300×2000×2100
