3m3 concrete truck mixer with pump
US $2000-$4000
Widely Used Concrete Mixer Truck for Sale
- Category: Concrete Truck >>>
- Supplier: Shandong Hongda Construction Machinery Group Co. Ltd.
Share on (225040175):
Product Overview
Description

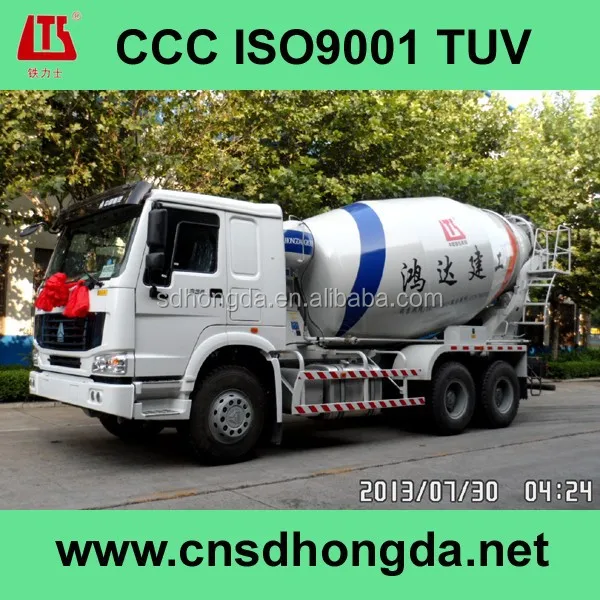

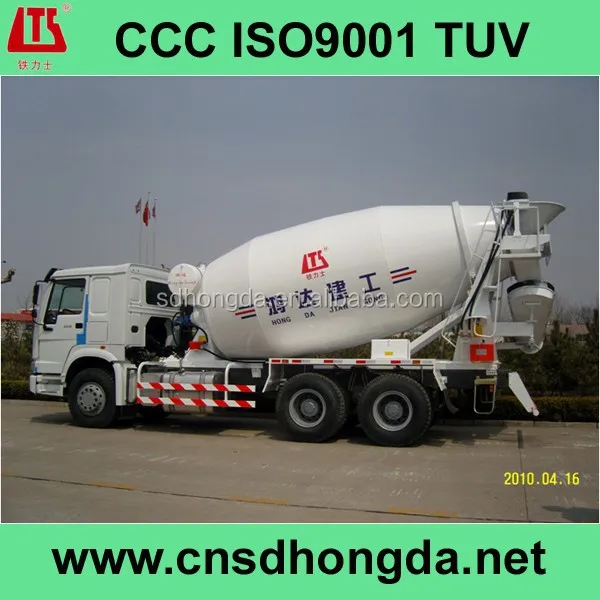

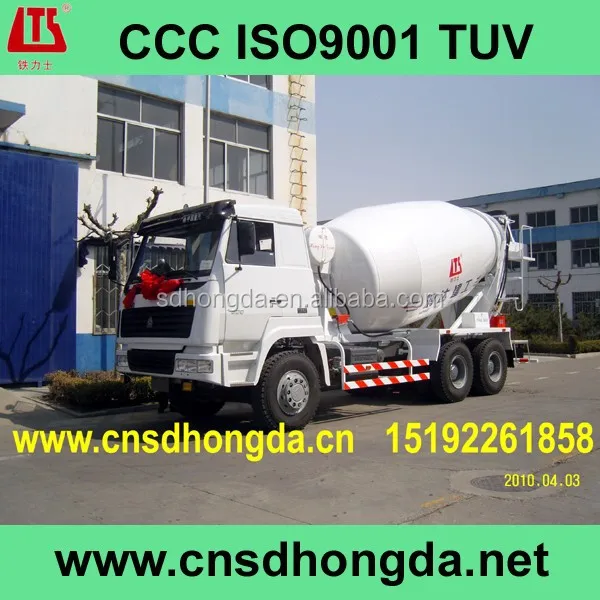

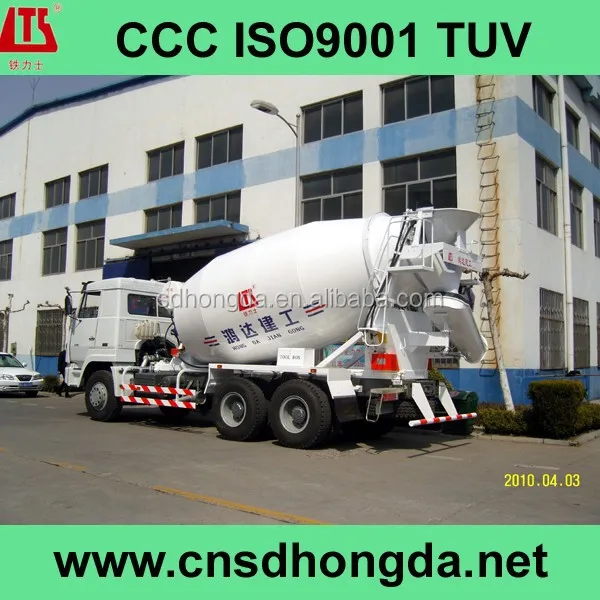

Widely Used Concrete Mixer Truck HDT5259GJB
with Quality Certificates on Sale
Concrete Mixer Truck
Tie Li Shi (Iron Giant) Brand
|
Model |
ZZ5256GJBM3846C (9290) |
ZZ5257GJBM3847C (9290) |
|
|
HDT5258GJB (9336) |
HDT5259GJB (9336) |
||
|
Whole Vehicle Performance & Parameters |
Chassis |
STEYR King |
HOWO |
|
Curb Weight (Kg) |
13000 |
13220 |
|
|
Total Vehicle Weight (Kg) |
25000 |
25000 |
|
|
Outline Dimension(L*B*H) (mm) |
9200 * 2490 * 3800 |
9054*2496*3750 |
|
|
Wheelbase (mm) |
3800+1350 |
3825+1350 |
|
|
Front Overhang (mm) |
1560 |
1500 |
|
|
Rear Overhang (mm) |
2450 |
2375 |
|
|
Min. Clearance Above Ground (mm) |
314 |
314 |
|
|
Max. Traveling Speed (km/h) |
75 |
90 |
|
|
Min. Turning Diameter (M) |
19.6 |
19.3 |
|
|
Oil Consumption per 100 km (under limited conditions) |
≤25 |
≤25 |
|
|
Vehicle Configuration |
Clutch |
Dry Single Disc Clutch (φ430) |
Dry Single Disc Clutch (φ430) |
|
Gear Box |
SINOTRUCK HW18709 |
SINOTRUCK HW18709 |
|
|
Driving Type |
6*4 |
6*4 |
|
|
Steering Mechanism |
ZF8098 |
ZF8098 |
|
|
Service Brake |
Dual-circuit Air Brake |
Dual-circuit Air Brake |
|
|
Parking Braking |
Spring-powered Air-cut-off Brake |
Spring-powered Air-cut-off Brake |
|
|
Auxiliary Brake |
Engine Exhaust Brake |
Engine Exhaust Brake |
|
|
Tyre |
12.00(R)-20 |
12.00(R)-20 |
|
|
Engine Parameters |
Model |
WD615.95(E) |
WD615.95(E) |
|
Type |
In-line 6-cylinder, Water-cooled, Supercharged, Inter-cooled, Electric (Direct) Injection Diesel Engine |
In-line 6-cylinder, Water-cooled, Supercharged, Inter-cooled, Electric (Direct) Injection Diesel Engine |
|
|
Emission Standard |
China III, Euro III |
China III, Euro III |
|
|
Max Power (KW) |
290HP, 336 HP(2200r/min) |
290HP, 336 HP(2200r/min) |
|
|
Max Torque |
1350 N.m |
1350 N.m |
|
|
Mixing Drum Parameters |
Geometric Volume of Mixing Drum (m3) |
14.7 |
14.7 |
|
Max Mixing Cubage (m3) |
9---10 |
9---10 |
|
|
Feeding Speed (m3) |
≥3.5 |
≥3.5 |
|
|
Discharging Speed (≥m3) |
≥1.5 |
≥1.5 |
|
|
Leftover Rate |
Nearly Zero |
Nearly Zero |
|
|
Max Rotating Speed (r/min) |
14---16 |
14---16 |
|
|
Mixing Drum Obliquity (°) |
13.5 |
13.5 |
|
|
Max Mixing Drum Diameter (mm) |
φ2162 |
φ2162 |
|
|
Driving System |
Speed Reducer |
Italian BONFILI-577L |
Italian BONFILI-577L |
|
Hydraulic Pump |
US EATON5423-518 |
US EATON5423-518 |
|
|
Hydraulic Motor |
US EATON5433-138 |
US EATON5433-138 |
|
|
Radiator |
German AKG with Vacuum Meter |
German AKG with Vacuum Meter |
|
|
Water Supply System |
Water Tank Capacity (L) |
260 |
260 |
|
Water Supply Mode |
Water Pump; Pneumatic Pump |
Water Pump; Pneumatic Pump |
|
We are Shandong Hongda Construction Machinery Group Co., Ltd., a professional construction machinery manufacturer with a history of 28 years. Our products have passed CE, CCC and ISO9001 quality certifications. Our company has been appraised as a Contract-honoring & Promise-keeping Enterprise by the government for many consecutive years.Our main products are:
1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);
2. Construction Elevators(multi-speed, stepless-speed);
3. Concrete Mixers(rotary-drum-type, double-horizontal-shaft);
4. Concrete Batchers;
5. Concrete Mixing/BatchingPlants(25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);
6. Concrete Truck Mixers(6-16m3);
7. Truck-mounted Concrete Pumps (diesel, electric);
8. Trailer-mountedConcrete Pumps (diesel, electric);
9. Concrete Pump Trucks (with 24-52m booms);
10. Asphalt Mixing Plants (40-320t/h, stationary, mobile, oil-burning, gas-burning, coal-burning)...
