Product Overview

Description

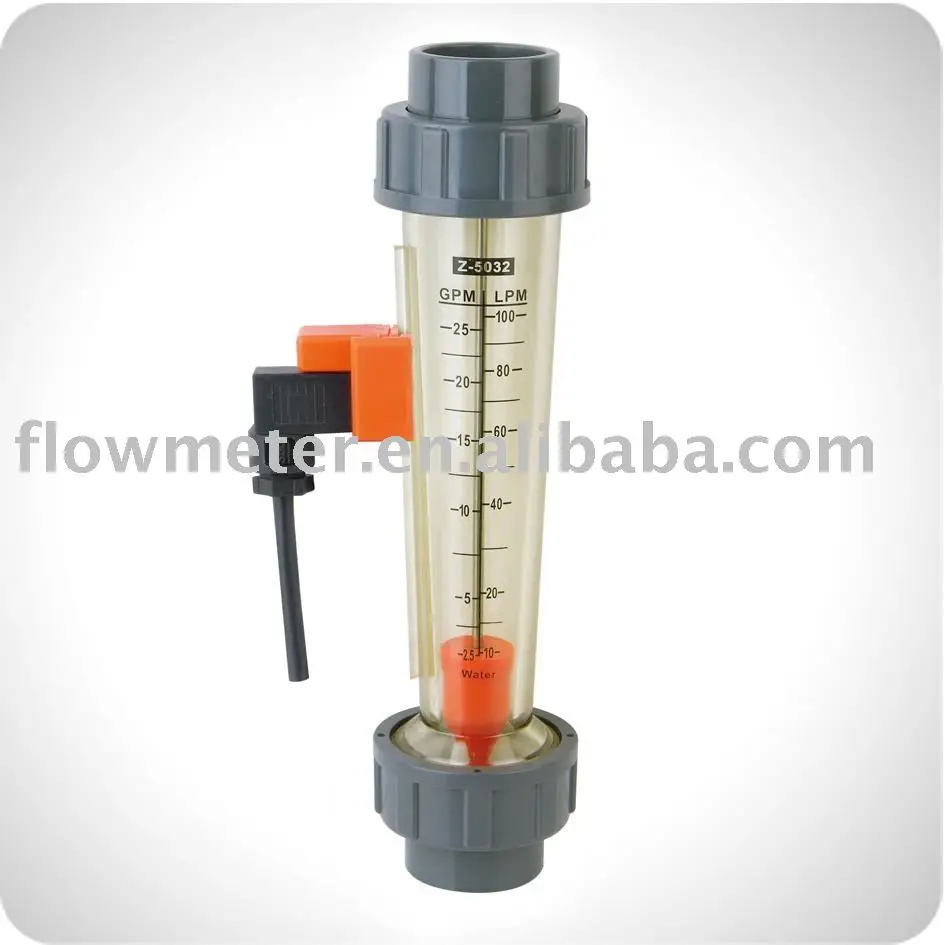

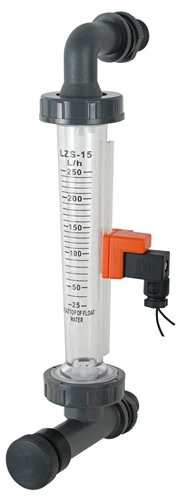

pipeline alarm switch flow meter



pipeline flow meter material of taper tube is polycarbonate(PC),the connectors are polyvinyl chloride(PA66),the float material can optional S.S.304,316 or ABS.also have polysulfone body type.



1>max working pressure:6bar(87psi) max temperature:158F(70C)

2>compact size for tight installation spaces.

3>direct reading permanent scale

4>in-line or panel mount configurations available.

5>standard models#316 stainless steel guide rods

6>not recommended for direct sunlight

7>available OEM options:private labeling,custom calibrations,custom materials



Z-500 series of pipe flow meter
  SPECIFICATIONS
            %
model measure range(LPM) measure range (GPM) metric union male thread connection female thread connection elbow connection accuracy working pressure
  0.5-4 0.1-1 20 1/2" NPT     5 0.6MPa
Z-5008 1-7 0.2-2
  1.8-18 0.5-5 1/2"NPT
  0.5-4 0.1-1 20 1/2" NPT
Z-5008C 1-7 0.2-2
  1.8-18 0.5-5 1/2"NPT
  1-10 0.25-2.5 20 1/2 or 3/4"NPT
Z-5015 1.8-18 0.5-5
  3-30 0.8-8 1/2"NPT
Z-5025 3-30 0.8-8 32 3/4" NPT 3/4" G
  4-40 1-10 3/4"NPT
  5-50 1.2-12 40 1" NPT 1"G
Z-5032 8-80 2-20
  10-100 2.5-25 1"NPT
  10-100 2.5-25 63 2" NPT 2" G
Z-5050 20-180 5-45
  25-250 7-70 2" G

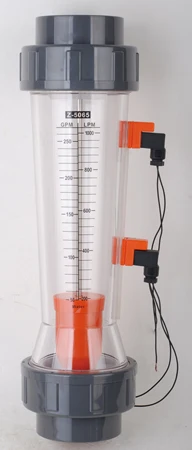

Z-5065 80-400 25-110 75 2 1/2" NPT 2 1/2" G
  150-650 40-160
  200-1000 50-250



Z-5008-Z-50125Materials

Model Body material Metric Union
(P)		 Male Thread Female Thread Elbow
(W)		 Float material
Z-5008 PC,PSU PVC PA6 PA66 PVC 316
Z-5008C PC,PSU PVC PA6 PA66 PVC 316
Z-5015 PC,PSU PVC PA6 PA66 PVC 316
Z-5025 PC PVC PA6 PA66 PVC ABS,316
Z-5032 PC PVC PA6 PA66 PVC ABS,316
Z-5050 PC,PSU PVC PA6 PA66 PVC ABS,316
Z-5065 AS ABS PA6 PA66 PA6 ABS
Z-50100 AS ABS       ABS
Z-50125 AS ABS       ABS



Model L D Metric Union
(P)		 Male Thread
(M)		 Famale Thread
(M)		 Elbow(W) Weight
(kg)
L1 B1 B2 L2 L3 L4 E F b
Z-5008 100 42 150 20 26 170   153 27 55 Φ13 0.15
Z-5008C 160 50 208 20 26 225   252 27 55 Φ13 0.2
Z-5015 134 50 180 20 26 210   205 27 55 Φ13 0.2
Z-5025 170 59 230 32 39 250 225 270 25 83 Φ20 0.4
Z-5032 225 72 290 40 49 312 290 325 31 95 Φ25 0.65
Z-5050 290 100 375 63 73 400 370 440 40 120 Φ45 2.5
Z-5065 325 120 420 75 89   423         3.5
