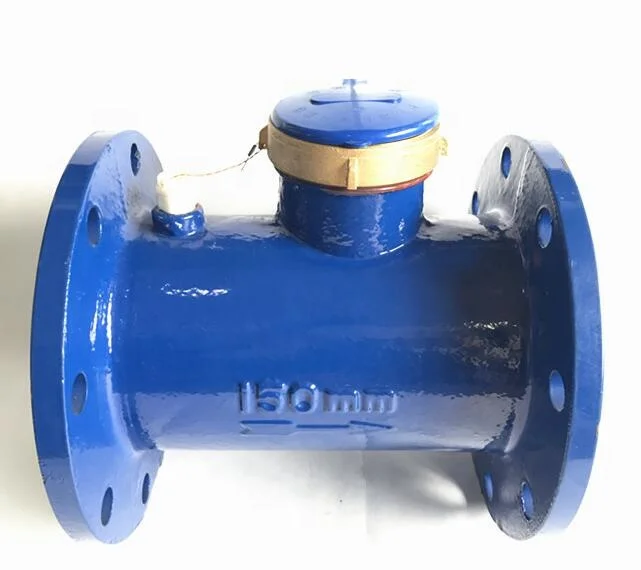

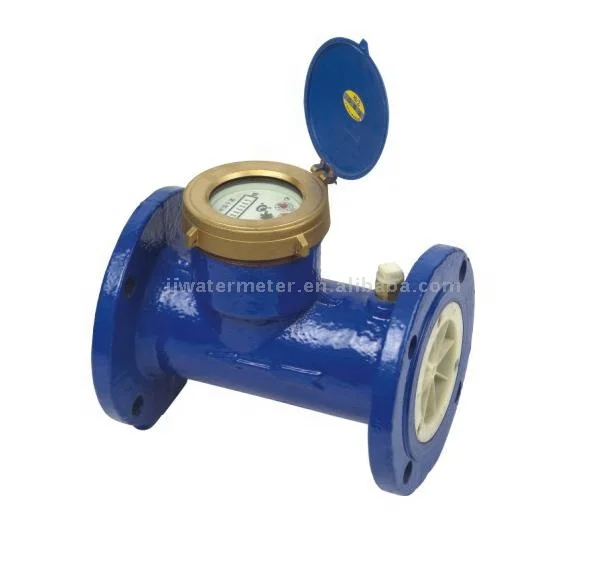

Расходомер воды DN 100 Woltman с большими изъянами (51937135)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


The series of water meter is use to measure the big quantity of potable water , consumed in household or a resident unit ,passing through the pipeline.





Feature:





1.Wet-dial


2.Series universal use. Easy interchange & maintenance


3.Large current capability


4.Compact construction


5. Measuring accuracy is up to class B of ISO4064Standard


6. Size: 80mm-200mm


7. Material: iron or brass


8. Packing: carton package





Main Technical  Data



























































size Normal flow transitional flowMin FlowMin Reading Max Reading
mm class m³/hm³/hm³/h m³
80    B40 81.20.01999999.99
100    B60 121.80.01999999.99
150    B150304.50.1999999.99
200    B250507.50.1999999.99




Dimesnsions and weight



























































sizeLDD1HboltWeight
mmmmmmmmmmdΧnKG
80225Φ195Φ160239M16Χ817
100250Φ215Φ180259M16Χ820
150300Φ280Φ240300M25Χ833
200350Φ335Φ295361M20Χ847




Working Conditions





6FL%`GT_)}T7TF`H%%Z4K]2
