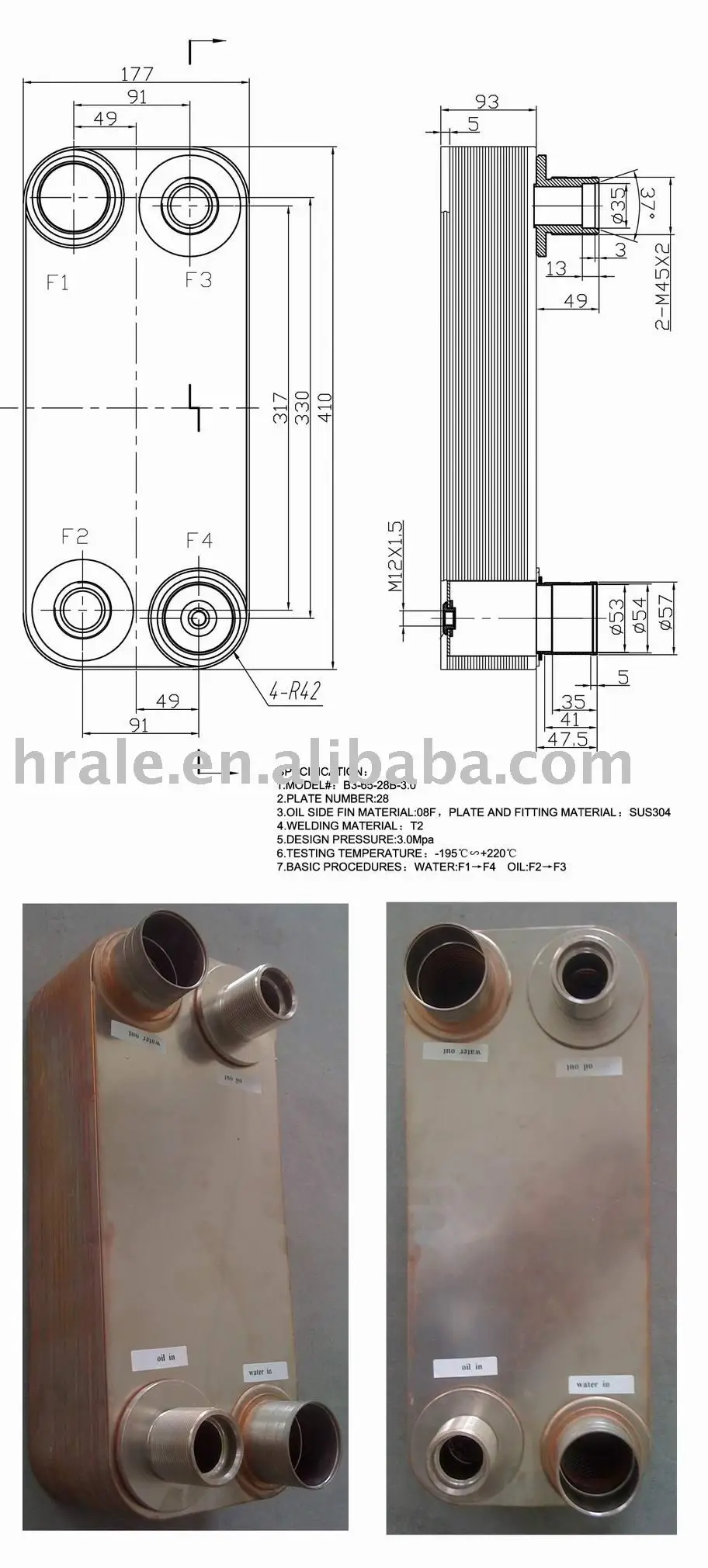

Brazed oil cooler for bus

Product Overview

Description

Technical parameter
Product name	Compact brazed Oil Cooler, brazed cooler,UL, TUV,ISO9001:2000
Product model	B3-65B
Unit heat exchanging area	0.065m2
Maximum flowrate	40m3/h
plate material	316L or 304 stainless steel
Welding material	99.9% copper
Thickness of plate	0.5mm
Volume per channel	0.035L
maximum number of plate	100
Design pressure	3.0MPa
Test pressure	4.5MPa
Design temperature	-195 ~+220
Connections	Biggest screw threads pipe for  water: 5/4", the biggest welded pipe for liquid: 15/8"
Refrigeration Capacity	700KW
Basic Procedures	F1-> F4, F3-> F2
Application scope	The oil fluid which needs to be cooled slows down when passing the wing structure channel and the cooling water fluid speeds up when passing the smooth plate channel, thus achieves the ideal cooling effect.
