High Quality Compressor Low Temperature Air Cooled Small Mini Condensing Unit

Share on:

Price:RUB 7,545.73 - RUB 15,091.46
Price in USD:Details


Product Overview

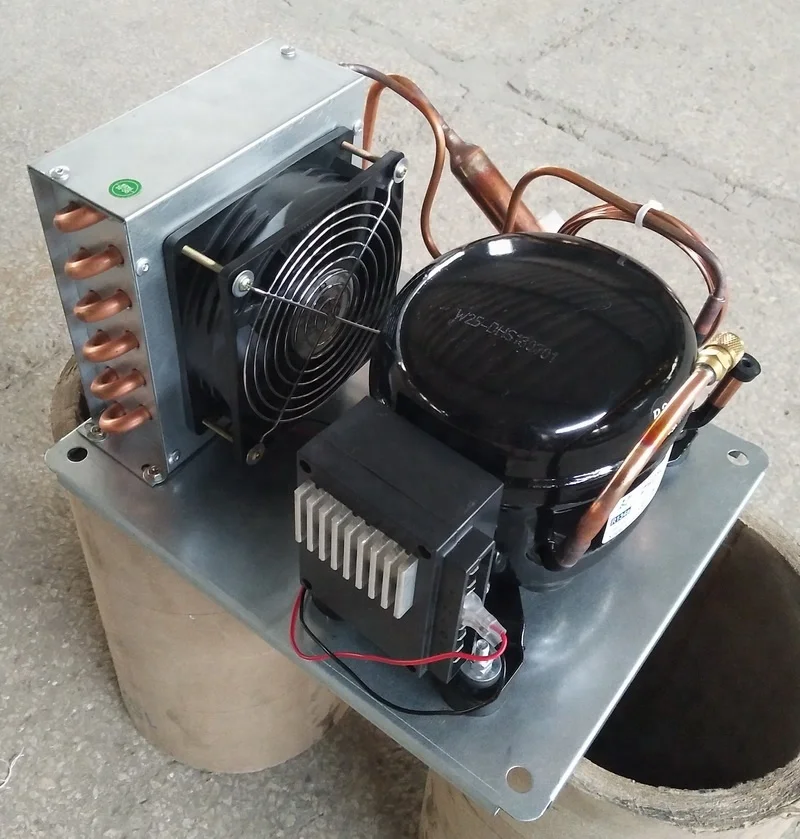

High Quality Compressor Low Temperature Air Cooled Samll Mini Condensing Unit


1. Compressor technical performance


Product Model ZH25DC

Working volume, CM 3 2.5

Application Type LBP

Speed, rpm 2000 2500 3000 3500

Cooling capacity, W 42 52 61 71

Input power, W 35 43 50 59

Operating current, A 2.9 3.7 4.1 4.9

Performance Coefficient C.O.P, W/W 1.2

Operating voltage, VDC 10.9 to 17V, 22.7 to 31.5V

Cooling method ST or FC

Lubricants POE

Weight of the compressor, kg 3.2

Controller weight, kg 0.4


Refrigerant R134a

Throttling method Capillary

Power Supply, VDC 12/24

Test conditions: Evaporation temperature -23.3°C Inspiratory temperature 32.2°C

Condensing temperature 54.4°C Supercooling temperature 32.2°C

Ambient temperature 32.2°C Test voltage 12VDC

Note: The current at the 24VDC input is 1/2 of the value in the above table


2. controller

The brushless DC motor is used in this compressor. When using the controller, the controller must be properly connected to the compressor.

The chart is as


112/24V DC power supply

2 fuses

3 power switch

4 fault indicator

512V cooling fan

6 temperature control switch

7 speed resistance

8 power protection resistor


3, compressor accessories

1) Controller 1pcs

2) Controller Locking Screws 1pcs

3) Earthquake mat 4pcs


4, transportation and storage considerations

1) During the transportation of the compressor, the compressor should be kept in a vertical state and must not be inverted. Large shocks should be avoided at the same time.

Movement and impact

2) The compressor should be stored in a dry and ventilated place to prevent it from getting wet.



     If you are interested in our compressor, pls give us your detailed specification.

For more informaiton, pls feel free to contact us. We will reply you immediately.

     As a professional manufacturer of refrigeration parts in China, we can make different design products according to customer's requirement. Our main products are refrigeration Evaporator, sub zero freezer condenser,roll bond evaporator, Copper filter drier and so on.We are the best price, best quality for your service, we look forward to working with you for your cooperation.
