BenFa Plumbing Hose Crimp machine
- Category: Plastic & Rubber Processing Machinery >>>
- Supplier: Zhejiang Benfa Technology Co. Ltd.
Share on (250214893):
Product Overview
Description
Product Description
Application
- Shielding for wire and cable products

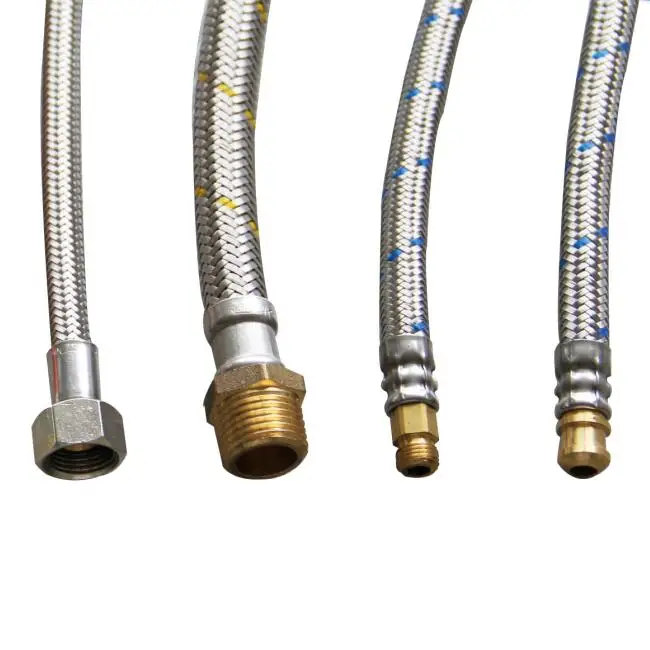

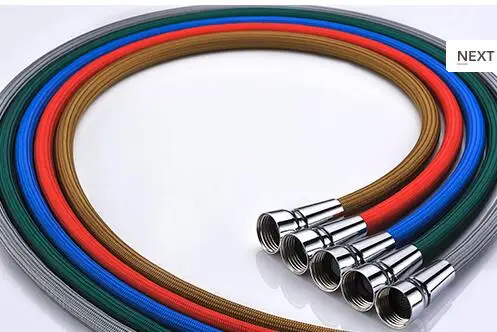

- Sanitary hose (Plumbing hose) product
- Teflon hose
- Low pressure hose and high pressure hose
- Irony steam hose
- Refrigerating fluid charge hose
- Hydraulic hose
Braiding Material :
- Stainless steel wire (0.10-0.35mm)
- Nylon wire
- Alumium wire (0.15-0.30mm)
- Carbon steel
- Polyester yarn
- Cotton yarn
- Aramid fiber
Technical Features
- Core centralizing unit
- Individual carrier tension control
- Operating speeds:
- 16 Carrier 55 rpm
- 24 Carrier 50 rpm
- 36 Carrier 36 rpm
- 48 Carrier 20 rpm
- Gear driven take-off for accurate control
- Braid patterns (2 over 2, and 1 over 1)
- Inverter motor drive for controlled acceleration and deceleration
- Adjustable traverse mechanism to accommodate reel variation
- Digital production counter
- Options
- Empty bobbin detector
- Central lubrication system (recommended)
- Enhanced Sound Enclosure
- Keel lubricator (recommended)
- Advance display, variable speed
- Longitudinal tape applicator
- Motor driven capstan(speed reducer capstan )
- Single deck( Double Deck) Braiding System
Technical Specifications
| BFB16L-114B | BFB24L-114B | BFB36L-114B | BFB48L-114B |
Motor power | 0.75kw | 1.1kw
| 1.5kw | 2.2kw |
Voltage | 3 Phase 380V | 3Phase 380V | 3Phase 380V | 3Phase 380V |
Spindle RPM | 55RPM | 45RPM | 36RPM | 20RPM |
Traction RPM | 5.26-26RPM | 4.26-18.5RPM | 2.13-10.8RPM | 0.13-0.58RPM |
Take Up Reel | Attachment | Attachment | Charge for take up reel | Charge for take up reel |
Hose Diameter | ≤16mm | ≤24mm | ≤36mm | ≤48mm |
Traction Gear | 200 | 200 | 800 | 800 |
Spindle NO | 16 Spindle | 24Spindle | 36Spindle | 48Spindle |
Weight | 280kg | 305kg | 680kg | 48kg |
Bobbin Size | Out edge 56× Inner edge 22×High170mm Cubage:354cm3 | |||
Apply | Change spindle can braiding wire and yarn | |||
Dimenson | 620*500*1580mm | 890*720*1680mm | 1100*1000*1780mm | 1500*1300*2100mm |
Stripping Machine
CE certificate NO: MD070126-03CN

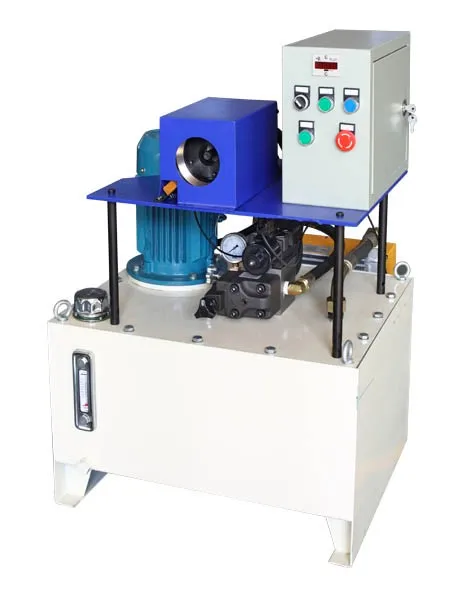

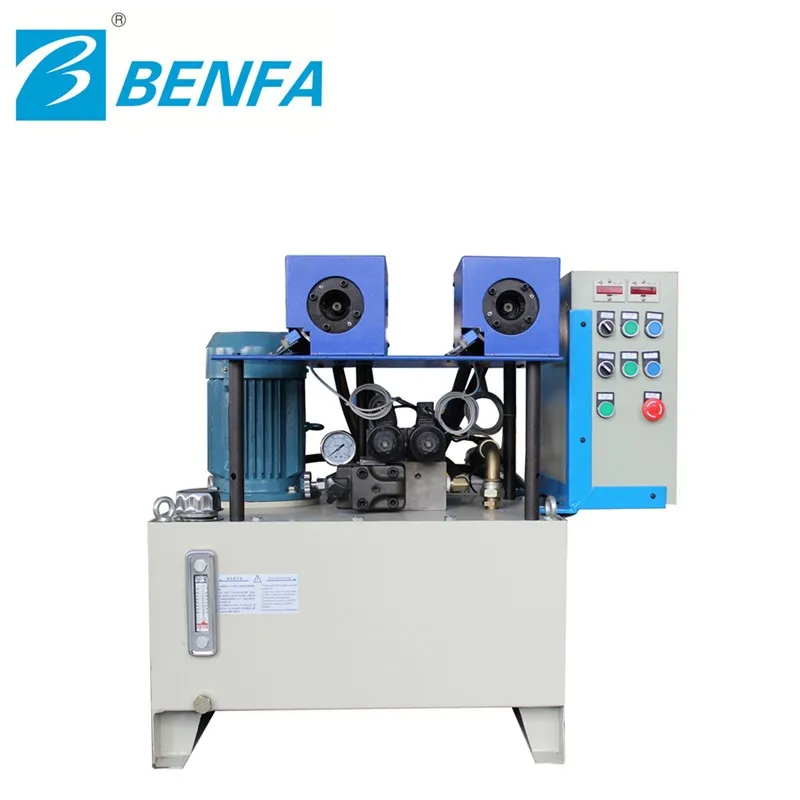

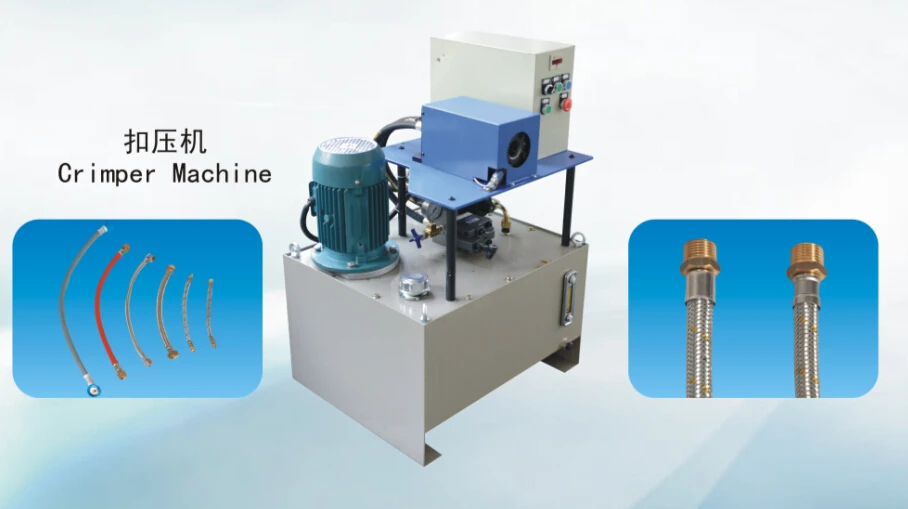

BFKY-1A type hose crimper is a new set of automatic crimping equipment which is designed and improved based on our digesting and absorbing foreign advanced technology and usually use to crimping the hose joint. This machine usually use in this company: Water braiding hose, pressure hose, spray hose etc especially for water and warm hose joint head.
1. Steady pressure and easy to adjust
2. High automatic and speed, adopt touch burking way
3. Automatic count the number of products
Open and close diameter(max)(mm): Φ30
Crimping head: 1 pcs
Crimping hose diameter(mm): ≤φ20
Model item: According to customer requirement
Model length: 20
Motor power(kw): Y112M-6/2.2kw
Voltage(V): 380V/220V
Paddle Pump(l/min): YB-16(flux16 l/min)
Our Services
Company Information
Before sale, we provide perfect braiding solutions, select appropriate machine series and models; while after-sale, we have 30 after-sales systems around China to ensure production around the clock without any worries.
From casting to accessories and then to assembly and operation, Benfa not only has independent research and development abilities, produces and markets products all by ourselves but also makes innovation in product constantly. Our products include: high-speed braiding machines, multi-level vertical and horizontal equipment, annular braiding and 3D braiding devices, etc.
Benfa, one of the largest hose braiding machine manufacturer in China, specializes in developing and producing hose braiding machine and its auxiliary machinery over 20 years. And now, we supply over 100 models of machines for various products.
After effort of years, our machines has covered full range of braiding machines, winding machine and tipping machine, for cord , lace ,line,wire,cable ,sleeve hose,harness, sanitary hose , air conditioning hose , water hose , radiator hose brake hose ,hydraulic hose hawser,double layer braided products etc.
For special braided product, we provide design and development service.
