XJP 11 METALLOGRAPHIC MICROSCOPE

Product Overview

Description

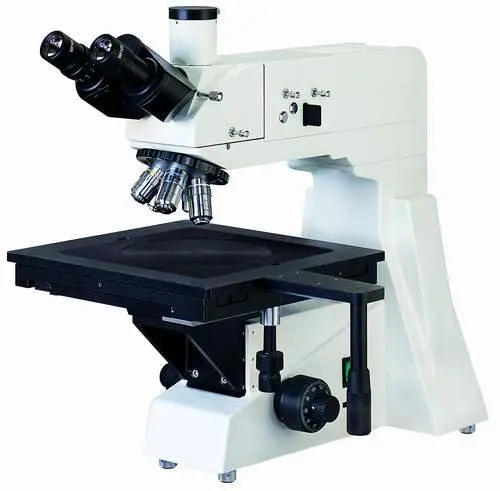

MODEL XJP-11 METALLOGRAPHIC MICROSCOPE





     XJP-11 Series metallographic microscopes are suitable for observing non-transparent objects. It is equipped with large moving mechanical loading tables, drop-shot lighting system, built-in polarized light observing device. It features clear image, nice contrast, elegant appearance, convenient operation etc. It is the ideal instrument for research in metal science, mineralogy, precision engineering & electronics sciences. It can also be widely used in schools, factories and researching institutes.



Technical specifications

Eyepiece	Wide view WF 10X (Ø18mm)
Objective lens	Anomaly field length achromatic lens (without coverslip) PL 5X / 0.12
	Anomaly field length achromatic lens (without coverslip) PL 10X / 0.25
	Anomaly field length achromatic lens (without coverslip) PL 20X / 0.40
	Anomaly field length achromatic lens (without coverslip) PL 40X / 0.60
	Anomaly field length achromatic lens (without coverslip) PL 80X / 0.80
Head tube	Three eyepiece Tilting angle: 30° built-in frederick polarizer can be switched
Drop-shot lighting system	6V, 20W halogen lamp, brightness adjustable
	Drop-shot field lighting device with light field, aperture optical fields, polarizing plate, (yellow, blue, green) filter and frosted glass
Focus system	elevating loading table, rough and micro coaxial focusing, grid value 0.7um, adjustable elasticity , locking and limiting device
Converter	5-hole extraversion style ball bearing inner positioning
Loading table	Three layers mechanical moving dimensions: 250 x 230 mm, moving range: 154 x 154mm
