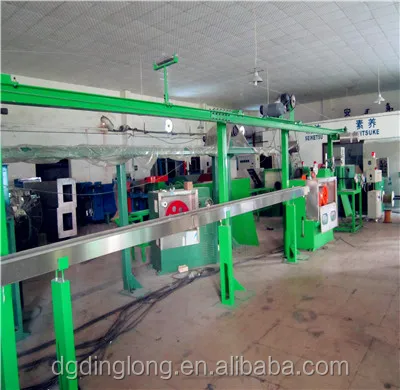

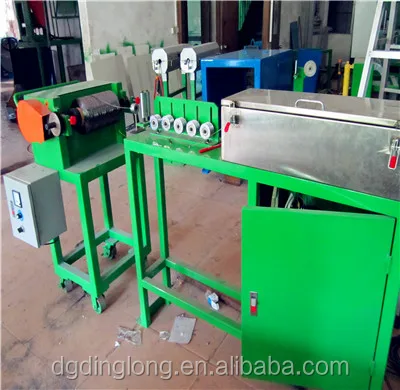

Carbon Fiber Teflon FEP EPA Cable Wire Extruder Machine

Share on (254141866):


Price:

Quantity:


Product Overview

Description


Product Description
Application:

apply to producing teflon cable with conductor carbon fiber.



Technical Specifications:





SJ25

SJ30

SJ35

SJ45

SJ50

SJ65

Finished diameter

0.1-1.8mm

0.28-2.0mm

0.4-3.0mm

0.6-4.0mm

0.6-5.0mm

5.0-35mm

Line speed (max.)

150m/min

180m/min

180m/min

150m/min

150m/min

80m/min

Extrusion output (max.)

8kg/h

20kg/h

25kg/h

50kg/h

60kg/h

100kg/h

L/D

25:1

25:1

25:1

25:1

25:1

25:1

Extruder power

4KW

11KW

11KW

15KW

15KW

22KW

Capstan wheel

Φ300 (belt type)

Φ300(belt type) or Φ191 (dual wheel)

Φ318 (dual wheel)

Φ400 (dual wheel)

Φ500 (dual wheel)

Caterpillar type

Payoff reel

PN 200-300

PN 200-300

PN 300-400

PN 400-500

PN 400-630

PN800-1250

Take-up reel

PN 200-400

PN 300-400

PN 300-400

PN 400-630

PN 500-630

PN1000-1600





Product





FAQ1


Q1: How long is the delivery time?
A1: It will take 20 days from the beginning to the end of the production
     It takes more than 30 business days to customize complex mechanical equipment.

Q2:What is terms of payment? MOQ?

A2:  T/T. 1 set.
Q3:How do you gurantee the machine stable operating?
A3:we do Pre-shipment test for every single piece of machine.
     we have seperate QC,delivery,sales and after-sales departments.
     also strict management process from pre-sales to after-sales.

Q4: How is your After-Sales Service?
A4:1 year warranty with 60+ oversea after-service engineers
     (oversea after-service team of high efficient,professional and enough experience
     for various Non-standard project)

Q5:How can I install my machine when it arrives?
A5: For simple and semi auto machine,DingLong would send manual instruction and teaching video.
      For complex operation , we will send the engineers overseas to help client
      installing, operating and training.



Company Information

Dongguan Dinglong Electrical Machinery Co.Ltd. is a high-tech manufacturer specialized in designing and manufacturing silicone strip equipment Series,LED strip Equipment series,silicone heating cable equipment Serieslocated in Humen, Dongguan City.

Since our company was founded, Over the past 10 yeas, our products have been extensively imported from Africa, Southeast Asia, Latin America, Europe and other markets.

Company certificate and honor




Contact Us

Company Name:    Dongguan Dinglong Electrical Machinery Co., LTD
Operational Address:90 Chenfeng Road, Chen Village Industrial Park, Humen Town, Dongguan,         Guangdong,     China  (Mainland)
