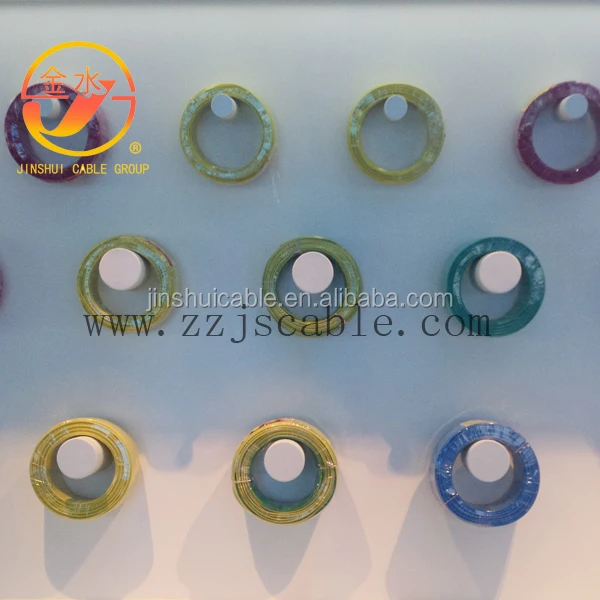

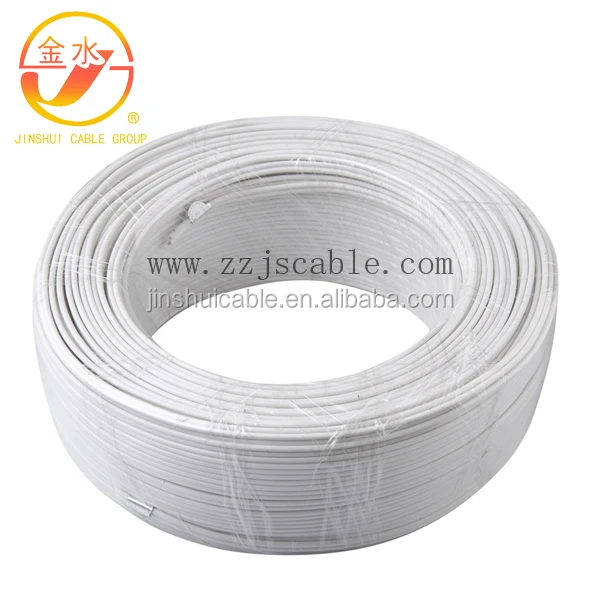

Electric cable H05V2 K (300/500V) Internal wiring

Product Overview

Description





Electric cable   H05V2-K  (300/500V) Internal wiring

Detailed Product Description

Electric cable   H05V2-K (300/500V) Internal wiring for a conductor temperature of 90 for electric power equipments.

1, Use: Internal wiring for a conductor temperature of  90 for electric power equipments.

2, Standard: VDE0281      BS6004

3, Construction conductor / insulation

4, Type and Specification

Type	Yellow/Green Grounding Core		Conductor		Insulation (mm)		Maximum Diameter (mm)	Minimum Insulation Resistance at 90 (MΩkm)	Weight (kg/km)
			Size (mm2)	Construction (/mm)	Thickness	Nominal Diameter
	Yes	No
H05V2-K	×		1G0.5	16/0.20	0.6	2.14	2.5	0.013	9.0
		×	1×0.5	16/0.20	0.6	2.14	2.5	0.013	9.0
	×		1G0.75	24/0.20	0.6	2.40	2.7	0.011	12.0
		×	1×0.75	24/0.20	0.6	2.40	2.7	0.011	12.0
	×		1G1	32/0.20	0.6	2.54	2.8	0.010	14.7
		×	1×1	32/0.20	0.6	2.54	2.8	0.010	14.7

5, Surface marking

H05V2-K  90  300/500V  XXmm²  ZHENGZHOU NO.2 CABLE FACTORY
