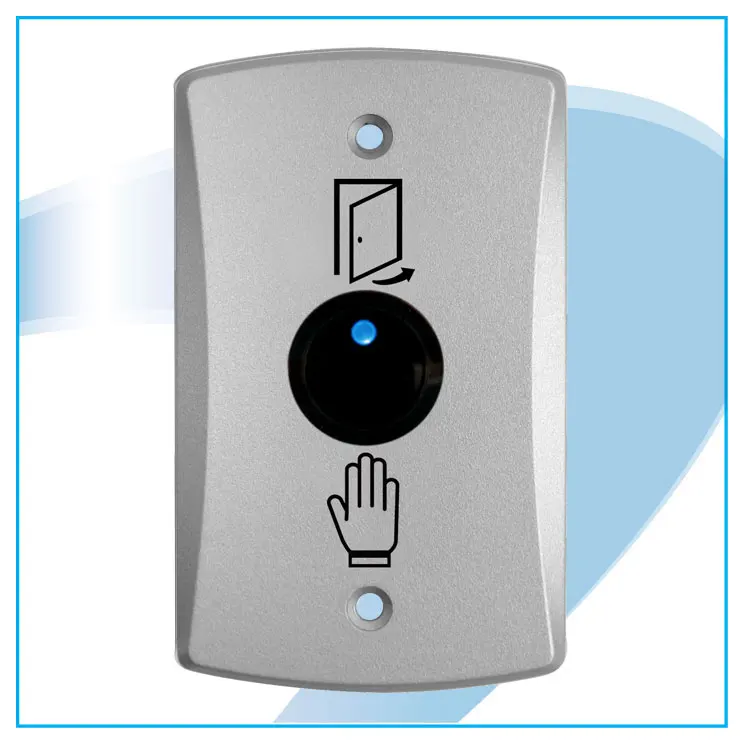

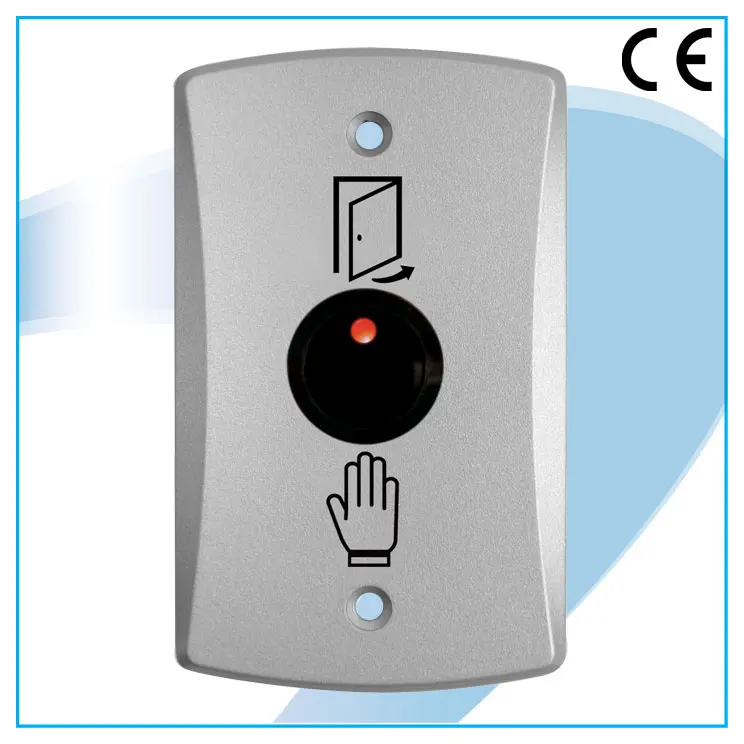

Waterproof DC 10V~24V Infrared Sensor Switch No Touch Door Release Exit Button

Product Overview

Description

Infrared Sensor Switch No Touch Door Release Exit Button



 Features

•Built-in micro controller for decoding infrared signal to avoid interference from the noise.
•With bi-color status LED (Power on: Red/ Proximity: Blue) / Optional: ( Blue / Green).
•Adjustable proximity range: 3~10cm (Default: 10 cm), depending on the reflection rate of different object.
•Support adjustable opening time 0.5~20 Sec. (Default: 0.5 Sec.) or latched ON or OFF output.
•With N.C. and N.O. output.

Specifications

•Dimensions	5(plate)/34(total depth) x 75(W) x 115(L)mm
•Net Weight	120g ± 5%
•Hole distance	83mm
•Material	Face plate: Zinc alloy IR sensor: Polycarbonate fire & UV proof material
•Protection Level	IR sensor:IP65
•Power supply	DC 10V~24V
•Relay contact rating:	1A@ 30 VDC
•Current	Standby Current: 20mA@10VDC, 13mA@24VDC   Operating Current: 47mA@10VDC, 28mA@24VDC
•Operating temperature	-20℃ ~ 75℃
•Life	•Life : 100,000 cycles (1A 30VDC, 0.3A 125VDC) / 50,000,000 cycles (Dry Contact)

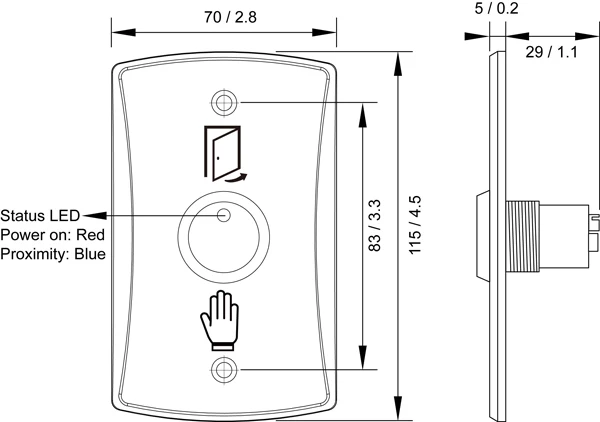

Dimension: Unit(mm/inch)

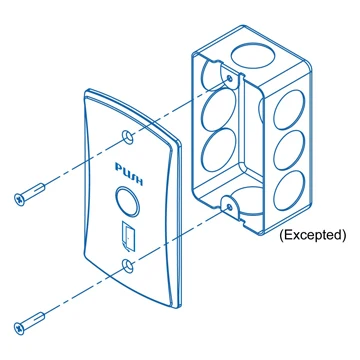

How to assembly

Example Applications










We reserve the right to change the specification without prior notice or obligation!
